Weld plate - DIN 1 Heavy - Phosphated
Weld plate for attaching a single pipe clamp to a welded structure. The plate provides a fixed threaded mounting point for the clamp’s fastening bolt, supporting secure positioning of hydraulic pipes and tubes in clamp installations.
Designed for clamp size DIN 1 in the Heavy Series according to DIN 3015 Part 2. The phosphated black surface treatment is specified for this version.
Typical Applications
- Weld-on mounting point for single pipe clamps in hydraulic pipe and tube routing
- Clamp installations where a threaded fixing point is required on a welded frame or bracket
Osanumero:
SPAL3S
Pakkauskoko:
20 pcs
Pienin tilausmäärä on:
1 pcs

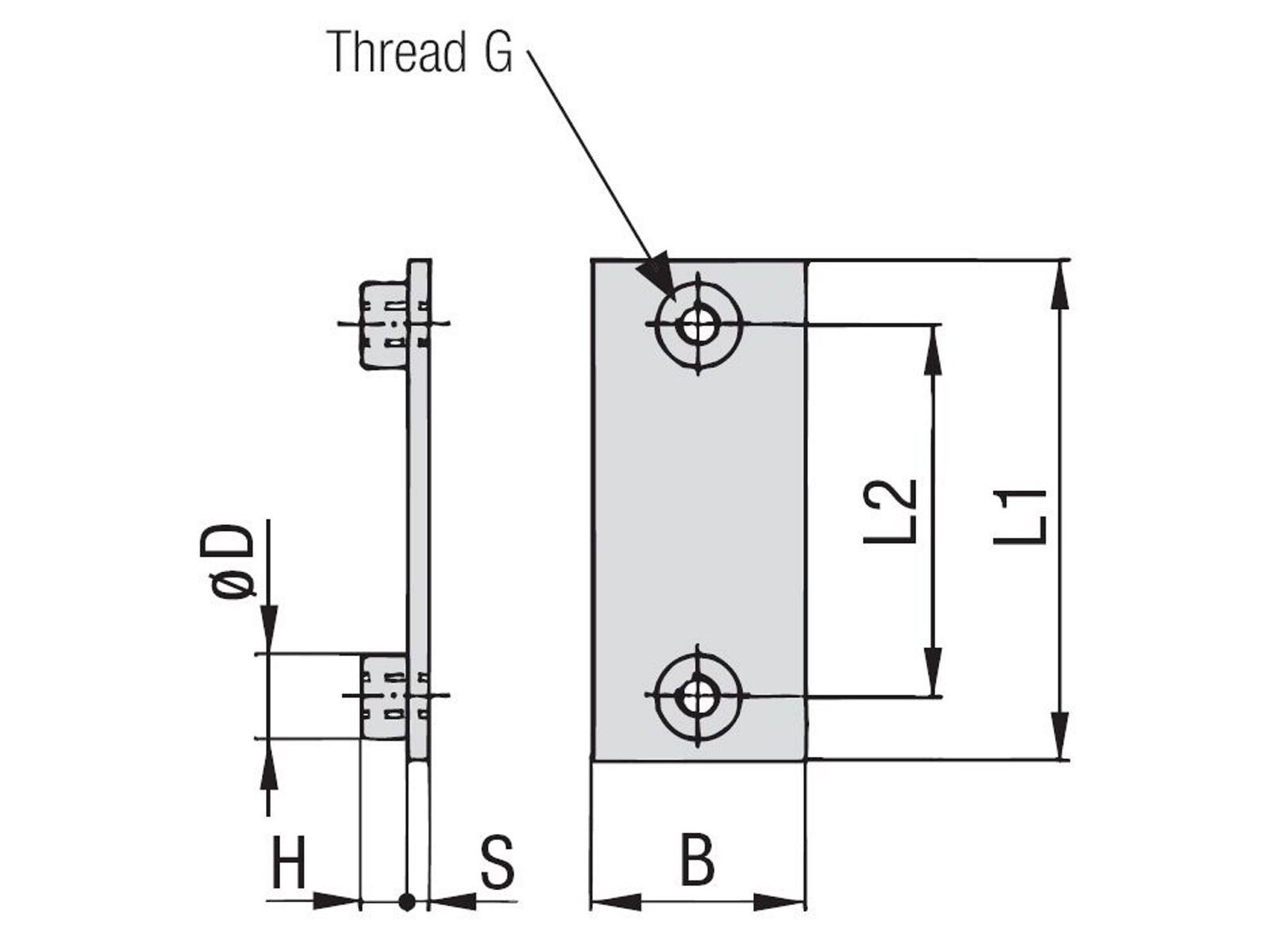

B
30 mm
D1
18 mm
DIN koko
1
G
M10
H
8 mm
Kierre metrinen
M9x1
Kiinnikkeiden määrä
1
L1
74 mm
L2
33 mm
Leveys
30 mm
Mallikoodi
SPAL-3S-M-W2
Materiaali
Steel
Pinta
Phosphated (black)
Pituus
74 mm
Ryhmä Stauff
3S
S
8 mm
Standardi DIN
DIN 3015 part 2
Tuotemerkit
Stauff
Pakkauskoko
20 pcs
Viivakoodi
212867
Bruttopaino
0,14 Kg
Nettopaino
0,14 Kg
Alkuperämaa
DEU
Intrastat-koodi
39259010
Weld plate for attaching a single pipe clamp to a welded structure. The plate provides a fixed threaded mounting point for the clamp’s fastening bolt, supporting secure positioning of hydraulic pipes and tubes in clamp installations.
Designed for clamp size DIN 1 in the Heavy Series according to DIN 3015 Part 2. The phosphated black surface treatment is specified for this version.
Typical Applications
- Weld-on mounting point for single pipe clamps in hydraulic pipe and tube routing
- Clamp installations where a threaded fixing point is required on a welded frame or bracket
