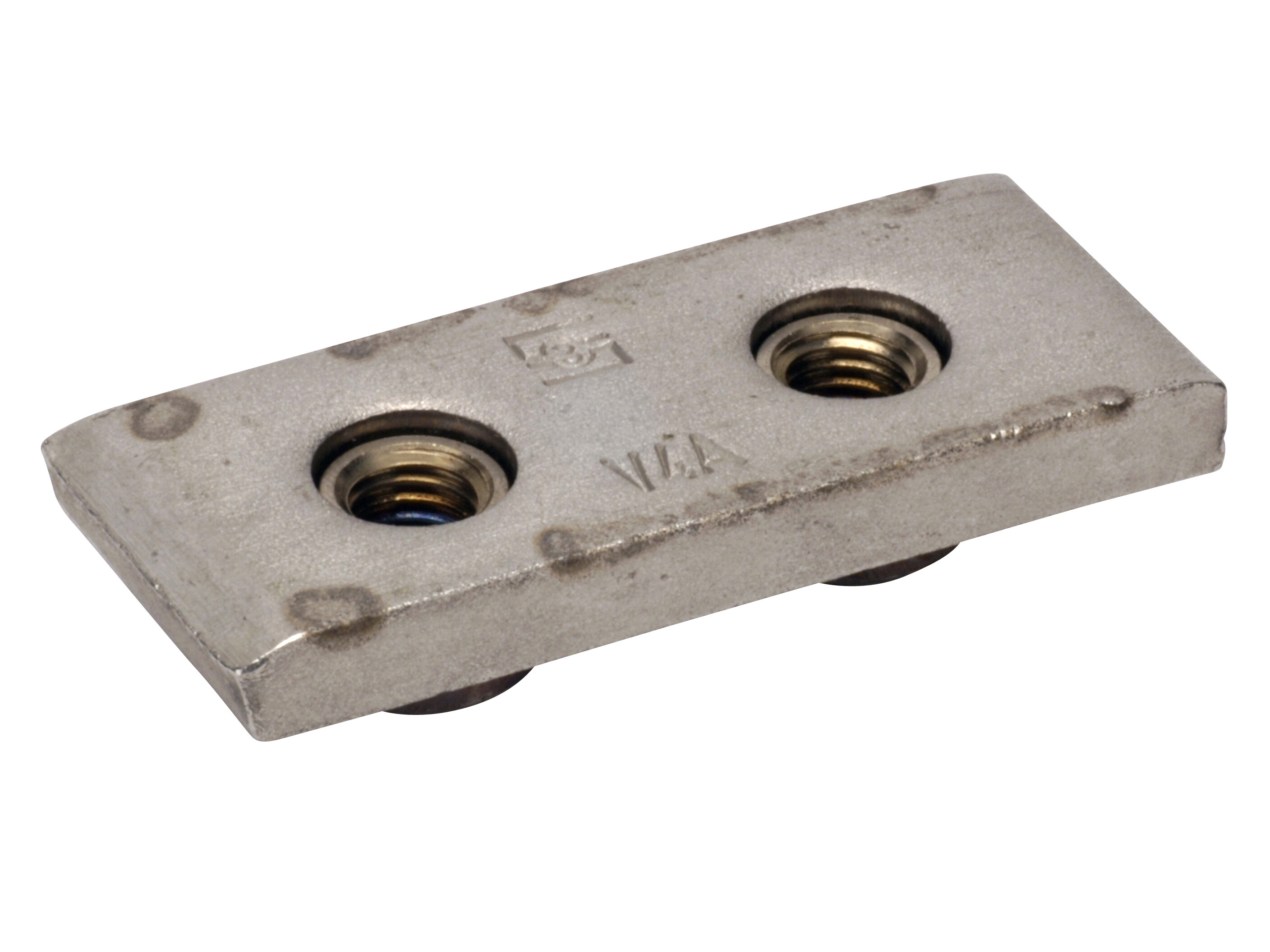

Weld plate - DIN 1 Heavy - Stainless
Weld plate for mounting one pipe clamp to a welded structure in hydraulic pipe installations. The plate provides a fixed base with a metric threaded connection point for fastening the clamp.
Designed for DIN size 1 in the heavy series according to DIN 3015 Part 2. The plate has an M10 threaded connection and stainless steel material quality 1.4571 / AISI 316Ti.
Typical Applications
- Weld-on clamp mounting points for hydraulic pipe runs
- Pipe and tube support where DIN 3015 heavy-series clamp installation is used
Partnumber:
SPAL3S-SY
Package size:
20 pcs
Min. order quantity is:
1 pcs
B
30 mm
Brand Name
Stauff
D1
18 mm
DIN size
1
G
M10
Group Stauff
3S
H
8 mm
L1
74 mm
L2
33 mm
Length
74 mm
Material
Stainless steel
Material quality
1.4571 / AISI316Ti
Model code
SPAL-3S-W5
Number of clamps
1
S
8 mm
Standard DIN
DIN 3015 part 2
Width
30 mm
Package size
20 pcs
Barcode
212868
Gross weight
0,15 Kg
Net weight
0,15 Kg
Country of origin
DEU
Intrastat code
39259010
Weld plate for mounting one pipe clamp to a welded structure in hydraulic pipe installations. The plate provides a fixed base with a metric threaded connection point for fastening the clamp.
Designed for DIN size 1 in the heavy series according to DIN 3015 Part 2. The plate has an M10 threaded connection and stainless steel material quality 1.4571 / AISI 316Ti.
Typical Applications
- Weld-on clamp mounting points for hydraulic pipe runs
- Pipe and tube support where DIN 3015 heavy-series clamp installation is used
