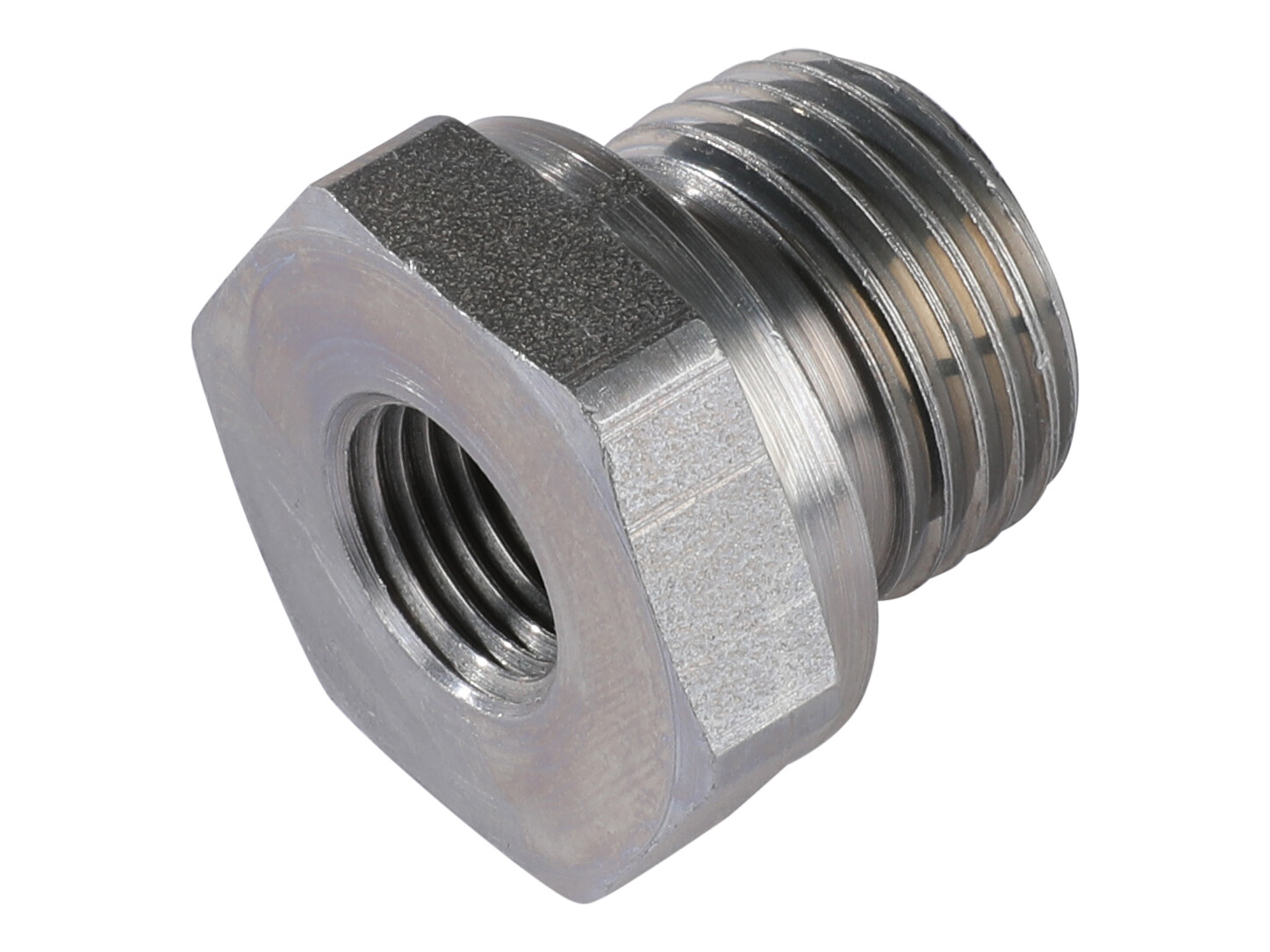

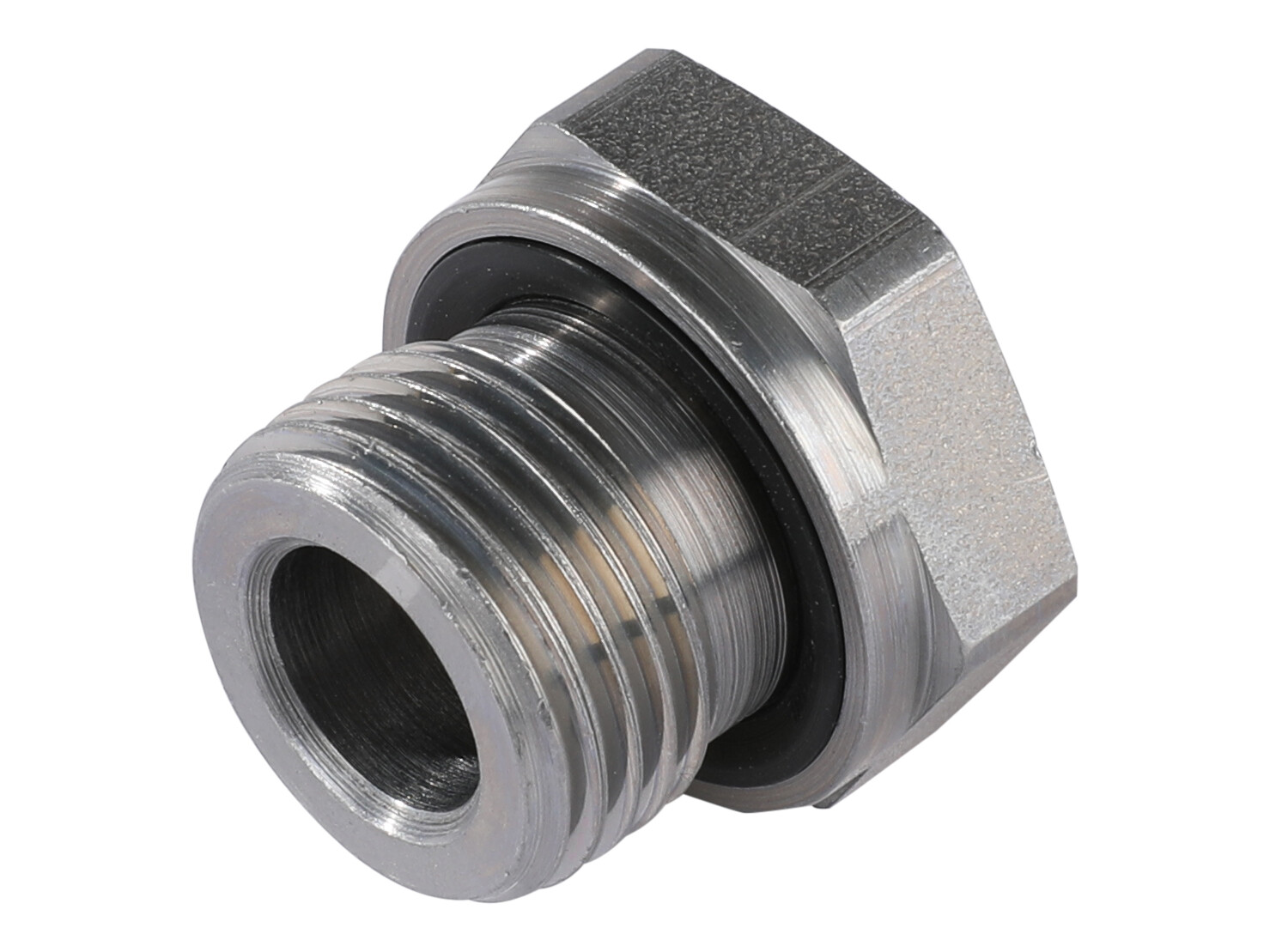

Reduction - 2" BSP x 1.1/4" BSP female - WD seal

Reduction - 2" BSP x 1.1/4" BSP female - WD seal

Partnumber:
RI-2-114ED

Package size:
5 st

Min. order quantity is:
1 st
Angle
0 °

Brand Name
Stauff

Corrosion resistance
1200 hours salt spray DIN EN ISO 9227

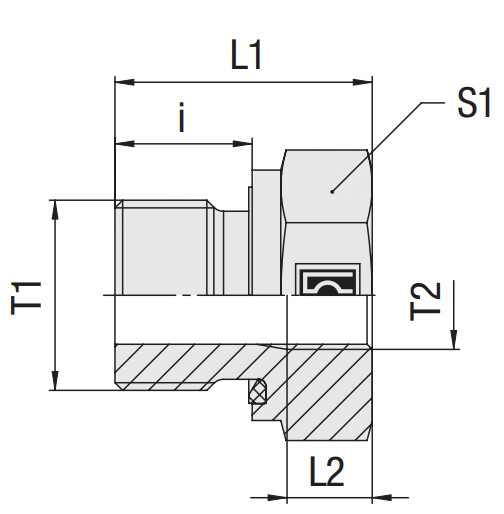

Dimension L1
48 mm

Dimension L2
20.5 mm

Dimension S1
75 mm

Dimension i
24 mm

Material
Steel

Model code
FI-RED-R2-WD-R1-1/4-B-W3

Pressure max.
160 bar

REACH compliant
Yes

RoHs compliant
Yes

Sealing material
NBR

Surface treatment
Zinc-Nickel plated

Temperature max.
+100 °C

Temperature min.
-35 °C

Thread T1
G 2 BSP

Thread T2
G 1.1/4 BSP

Thread inner
G 1.1/4 BSP

Thread outer
G 2 BSP

Type
Short
Package size
5 st

Barcode
289984

Gross weight
0,878 Kg

Net weight
0,878 Kg

Country of origin
deu

Reduction - 2" BSP x 1.1/4" BSP female - WD seal

Note: Opening 3D files requires a program that supports the file format
