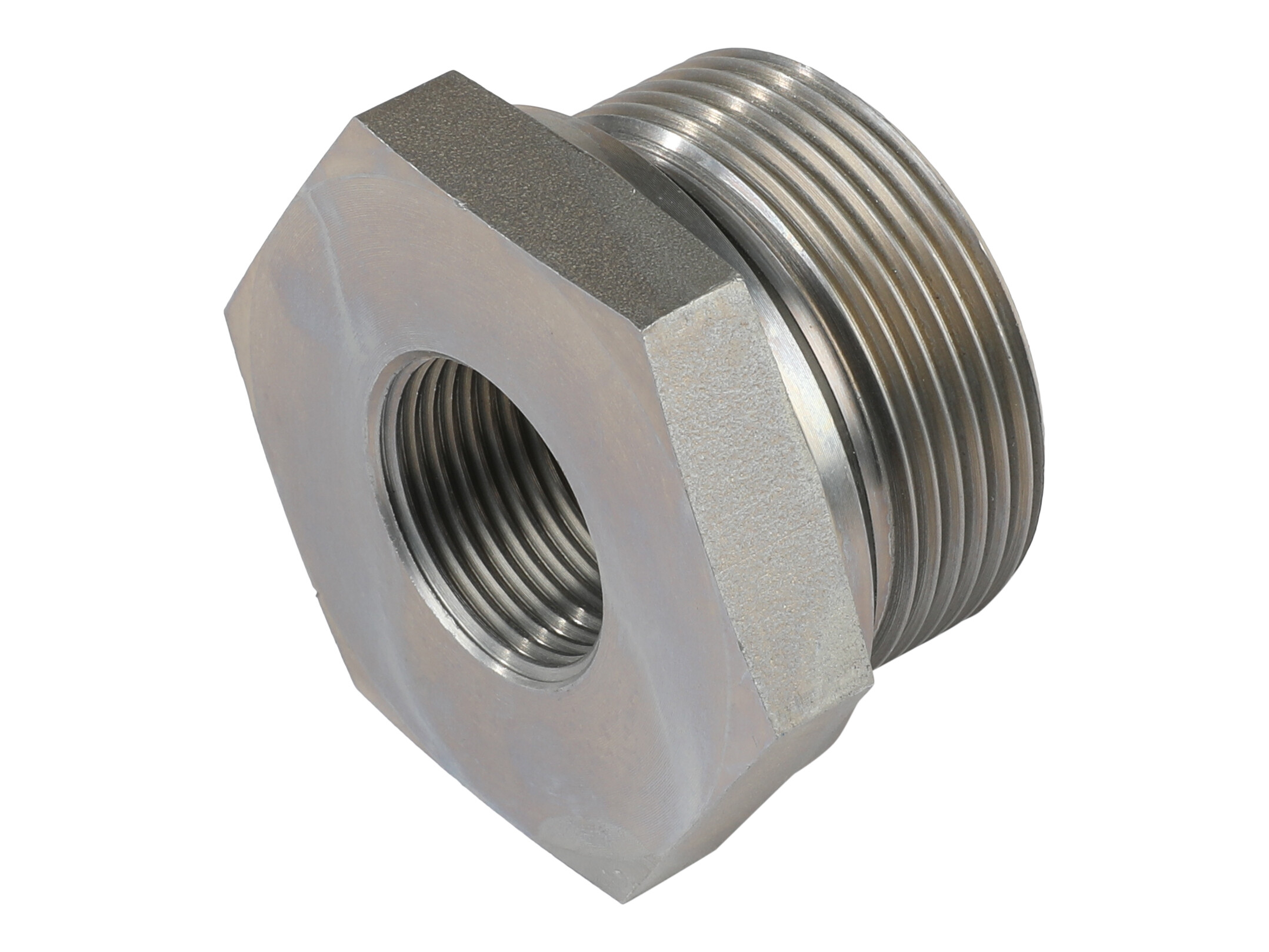

Reduction - 1.1/2" BSP x 1/2" BSP female - WD seal
Thread reducer for adapting between two Whitworth parallel pipe thread interfaces in a hydraulic connection. The adapter provides an external BSPP thread G 1.1/2 on one side and an internal BSPP thread G 1/2 on the other, allowing a reduction in thread size between ports or fittings.
Sealing is made with a profile sealing ring in NBR. The body is zinc-nickel plated and is rated for a maximum working pressure of 315 bar, with an operating temperature range of -35 to +100 °C.
Typical Applications
- Reducing thread size between BSPP ports and hydraulic fittings
- Hydraulic pipework and component connections where a G 1.1/2 port must connect to a G 1/2 interface
Artikelnummer:
RI-112-12ED
Förpackningsstorlek:
10 pcs
Minsta beställningskvantitet:
1 pcs
Diameter rör
25 mm
Gänga inv.
G 1/2 BSP
Gänga utv.
G 1.1/2 BSP
L1
36 mm
L2
14,5 mm
Längd
36 mm
Modell kod
FI-RED-R1-1/2-WD-R1/2-B-W3
Märke namn
Stauff
Packningsmaterial
NBR
REACH compliant
Yes
RoHs compliant
Yes
Rostbeständighet
1200 hours salt spray DIN EN ISO 9227
S1
55 mm
Sexkant
55 mm
Säkerhetsfaktor
4
Temperatur max.
+100 °C
Temperatur min.
-35 °C
Thread T1
G 1.1/2 BSP
Thread T2
G 1/2 BSP
Tillverkningsmaterial
Steel
Totallängd
60 mm
Tryck max.
315 bar
Typ
Short
Vinkel
0 °
Ytskiktbehandling
Zinc-Nickel plated
i
22 mm
Förpackningsstorlek
10 pcs
Streckkod
197024
Bruttovikt
0,47 Kg
Nettovikt
0,47 Kg
Ursprungsland
DEU
Intrastat artikelkod
73071110
Thread reducer for adapting between two Whitworth parallel pipe thread interfaces in a hydraulic connection. The adapter provides an external BSPP thread G 1.1/2 on one side and an internal BSPP thread G 1/2 on the other, allowing a reduction in thread size between ports or fittings.
Sealing is made with a profile sealing ring in NBR. The body is zinc-nickel plated and is rated for a maximum working pressure of 315 bar, with an operating temperature range of -35 to +100 °C.
Typical Applications
- Reducing thread size between BSPP ports and hydraulic fittings
- Hydraulic pipework and component connections where a G 1.1/2 port must connect to a G 1/2 interface
