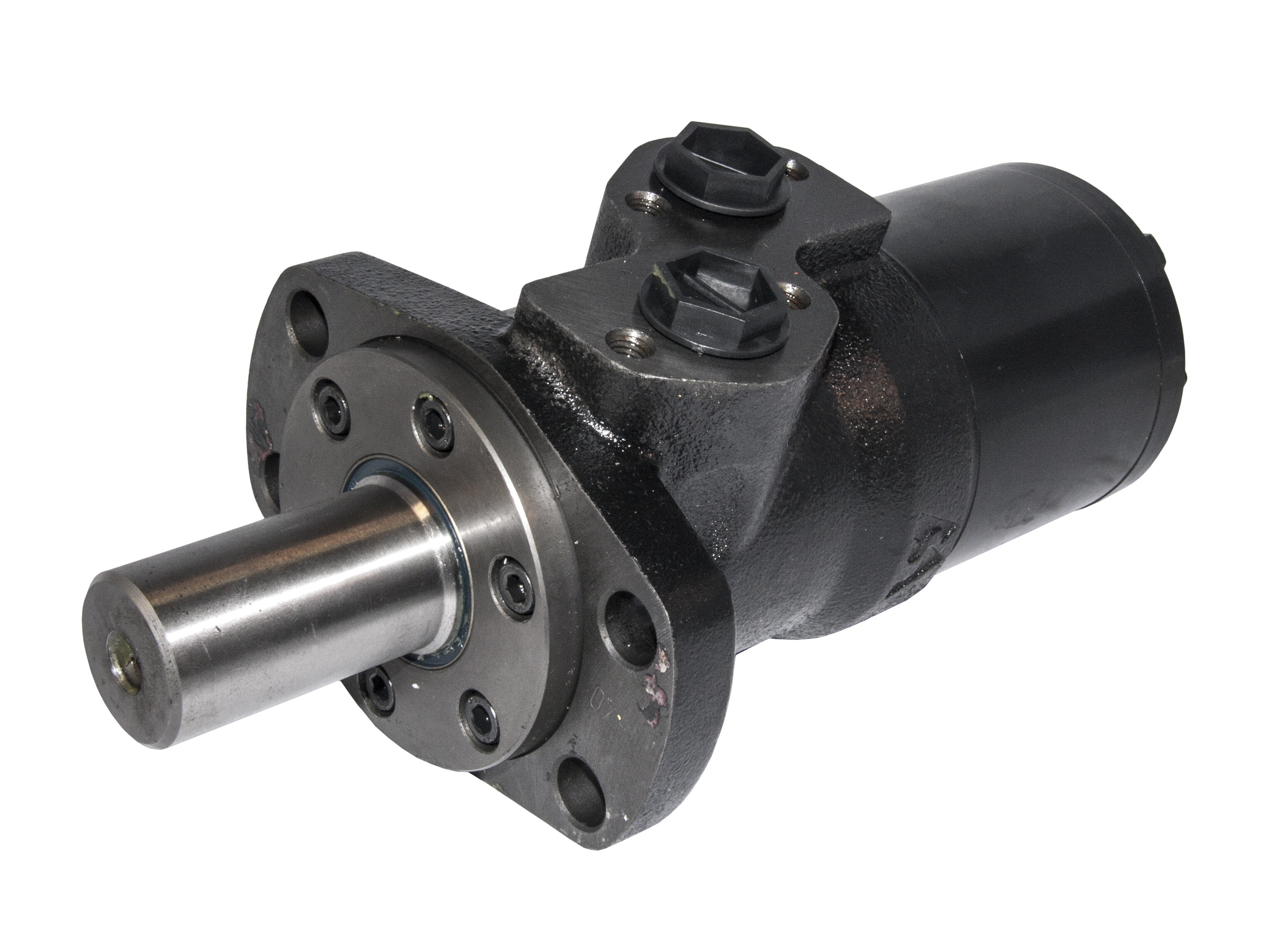

Motor M+S 500cc cyl32 SAE-A
Motor M+S 500cc cyl32 SAE-A
Partnumber:
MPF500CBP
Package size:
1 st
Min. order quantity is:
1 st
Brand Name
Hydraspecma
Contamination level max.
18/16/13 - ISO 4406
Continuous power max.
3.5 kW
Continuous rotation max.
120 rpm
Displacement
500 cm3
Drainport
G 1/4 BSP
Filtration degree
25 my
Holes circle
106.4 mm
Mounting flange
SAE-A4 Magneto
Number of mounting holes
4
Oil viscocity recommended
20 - 75 cSt
Pressure drop continuous max.
60 bar
Recess
82,5 mm
Shaft diameter
32 mm
Shaft type
Cylindrical
Temperature max.
+82 °C
Temperature min.
-40 °C
Torque continuous max.
390 Nm
Working ports
G 1/2 BSP
Package size
1 st
Barcode
207885
Gross weight
Kg
Net weight
Kg
Country of origin
bgr
Motor M+S 500cc cyl32 SAE-A
