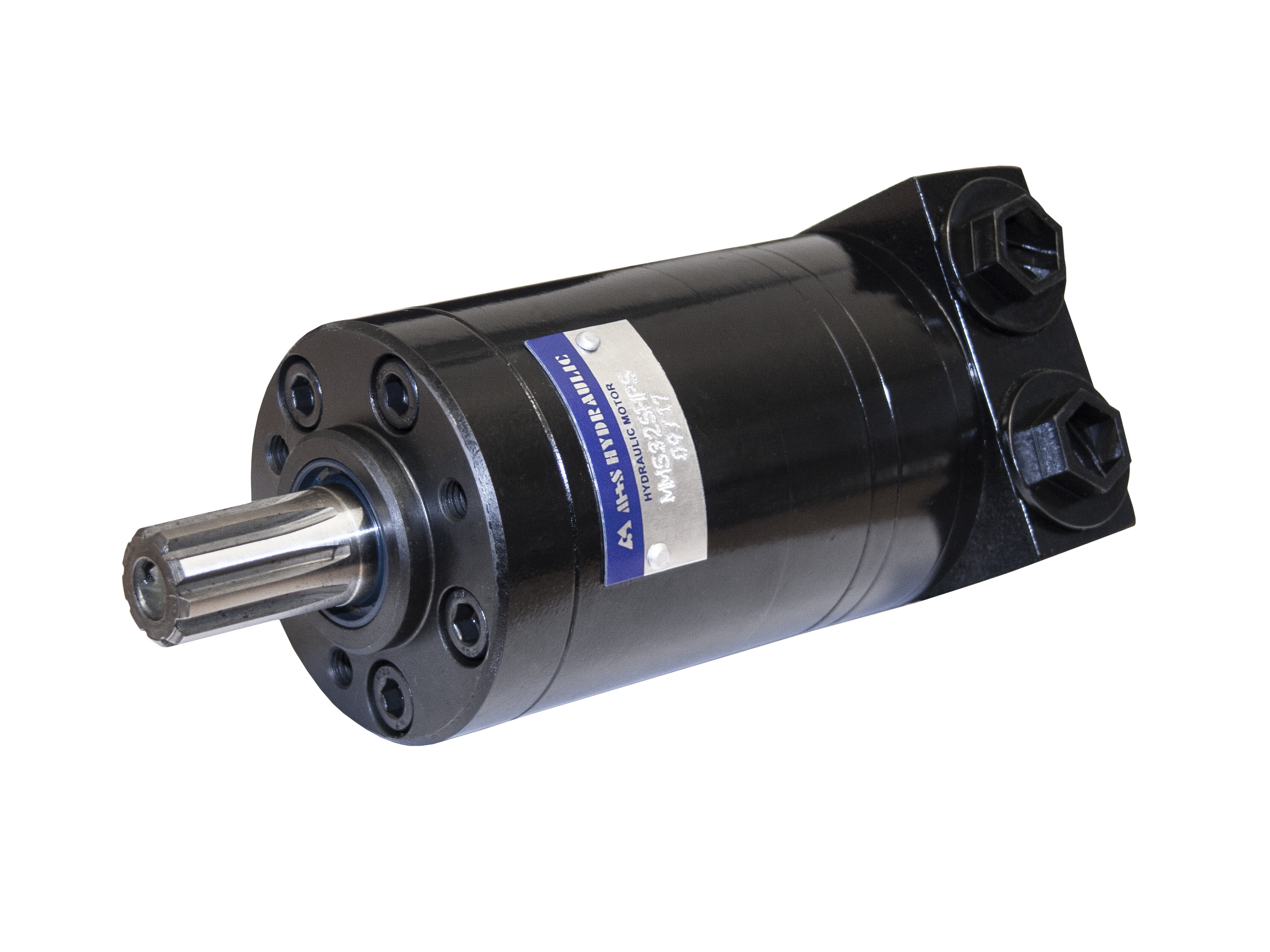

Motor M+S 12.5cc Spl 16.5
Motor M+S 12.5cc Spl 16.5
Varenummer:
MMS12.5SHP
Pakke str.:
1 pcs
Min. bestillingsenhed er:
1 pcs
Brand Name
Hydraspecma
Contamination level max.
-/20/16 - ISO 4406
Continuous power max.
2.4 kW
Continuous rotation max.
1550 rpm
Displacement
12.5 cm3
Drainport
G 1/8 BSP
Filtration degree
25 my
Holes circle
45 mm
Number of mounting holes
3
Number of outer grooves
9
Oil viscocity recommended
20 - 75 cSt
Port position
Side
Pressure drop continuous max.
100 bar
Shaft diameter
16,5 mm
Shaft spline
9T 16/32 SAE-A
Shaft type
Spline
Temperature max.
+82 °C
Temperature min.
-40 °C
Torque continuous max.
16 Nm
Working ports
G 3/8 BSP
Pakke str.
1 pcs
Stregkode
242047
Brutto vægt
Kg
Netto vægt
Kg
Oprindelsesland
bgr
