Stud fitting 1.7/8"-12 JIC nut x 1.1/2" BSP male w/soft seal
\ufeff
-
JIC female connector, straight, 37° taper
- External thread (BSPP)
- ED seal NBR, shore-A 85 \u200b\u200b+5/-0
- Operating temperature range -20° to +120°
- ISO 1179 - for threaded ports
Artikelnummer:
JEVGE-24-24ED
Förpackningsstorlek:
3 st
Minsta beställningskvantitet:
1 st

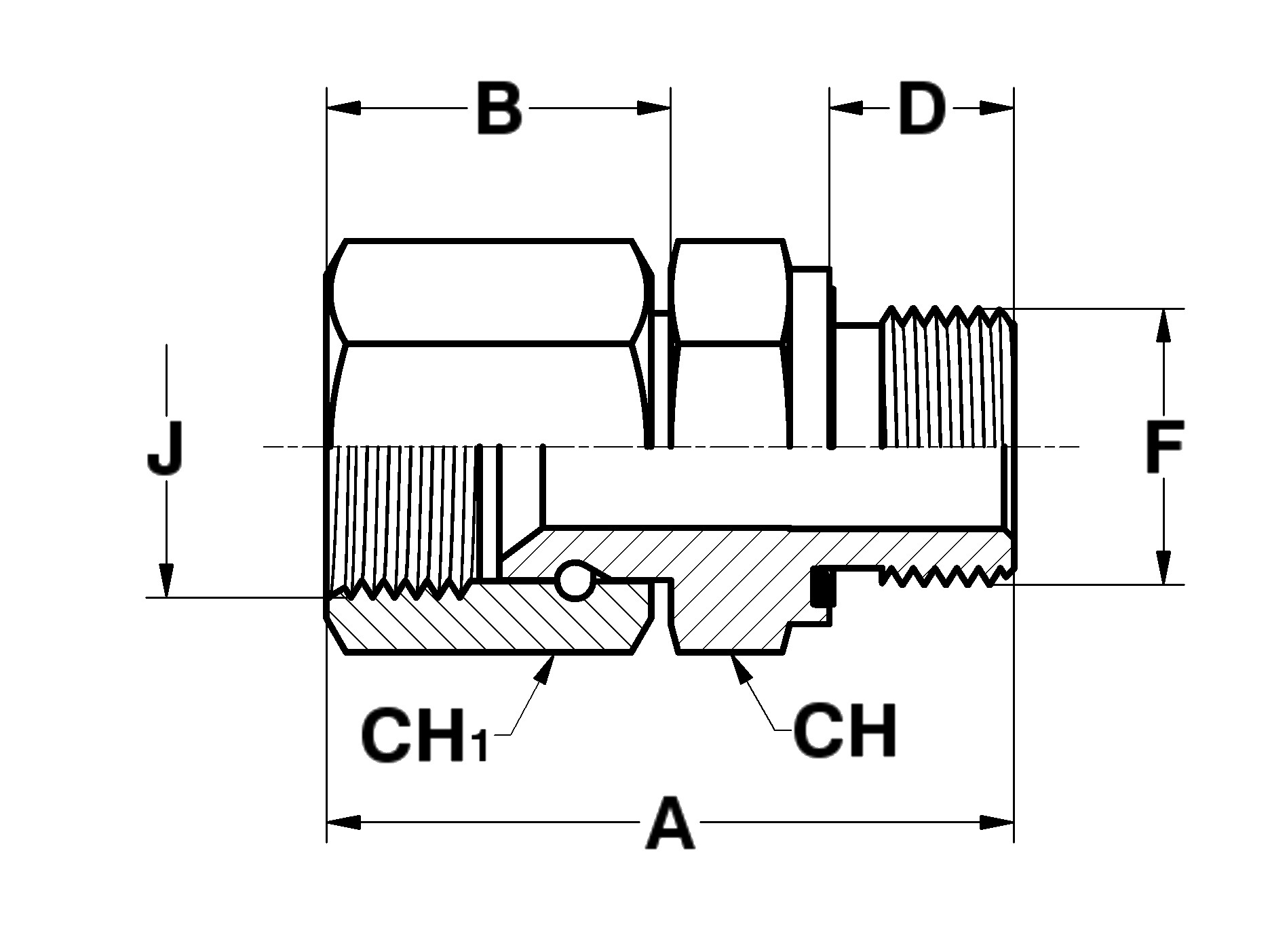

A
78,5 mm
Angle
0 °
B
38 mm
Brand Name
FOR
CH
60 mm
CH1
57 mm
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
D
22 mm
Diameter pipe
38 mm
F
G 1.1/2 BSP
J
1.7/8-12 JIC
Material
Steel
Model code
A102188/3848
Pressure max.
250 bar
Sealing material
NBR
Standard ISO
ISO 1179
Surface treatment
Electro zinc plated
T
38 mm
Temperature max.
+120 °C
Temperature min.
-20 °C
Thread inner
1.7/8-12 JIC
Thread outer
G 1.1/2 BSP
Pakke str.
3 st
Stregkode
247653
Brutto vægt
0,78 Kg
Netto vægt
0,78 Kg
Oprindelsesland
ITA
Intrastat varekode
73071110
\ufeff
-
JIC female connector, straight, 37° taper
- External thread (BSPP)
- ED seal NBR, shore-A 85 \u200b\u200b+5/-0
- Operating temperature range -20° to +120°
- ISO 1179 - for threaded ports
