C00491200
Skottgenomgång 90 Ø12mm
Artikelnummer:
C00491200
Förpackningsstorlek:
5 st
Minsta beställningskvantitet:
1 st
Angle
90 °
Area of use
Compressed air, Vacuum
Brand Name
Tierre

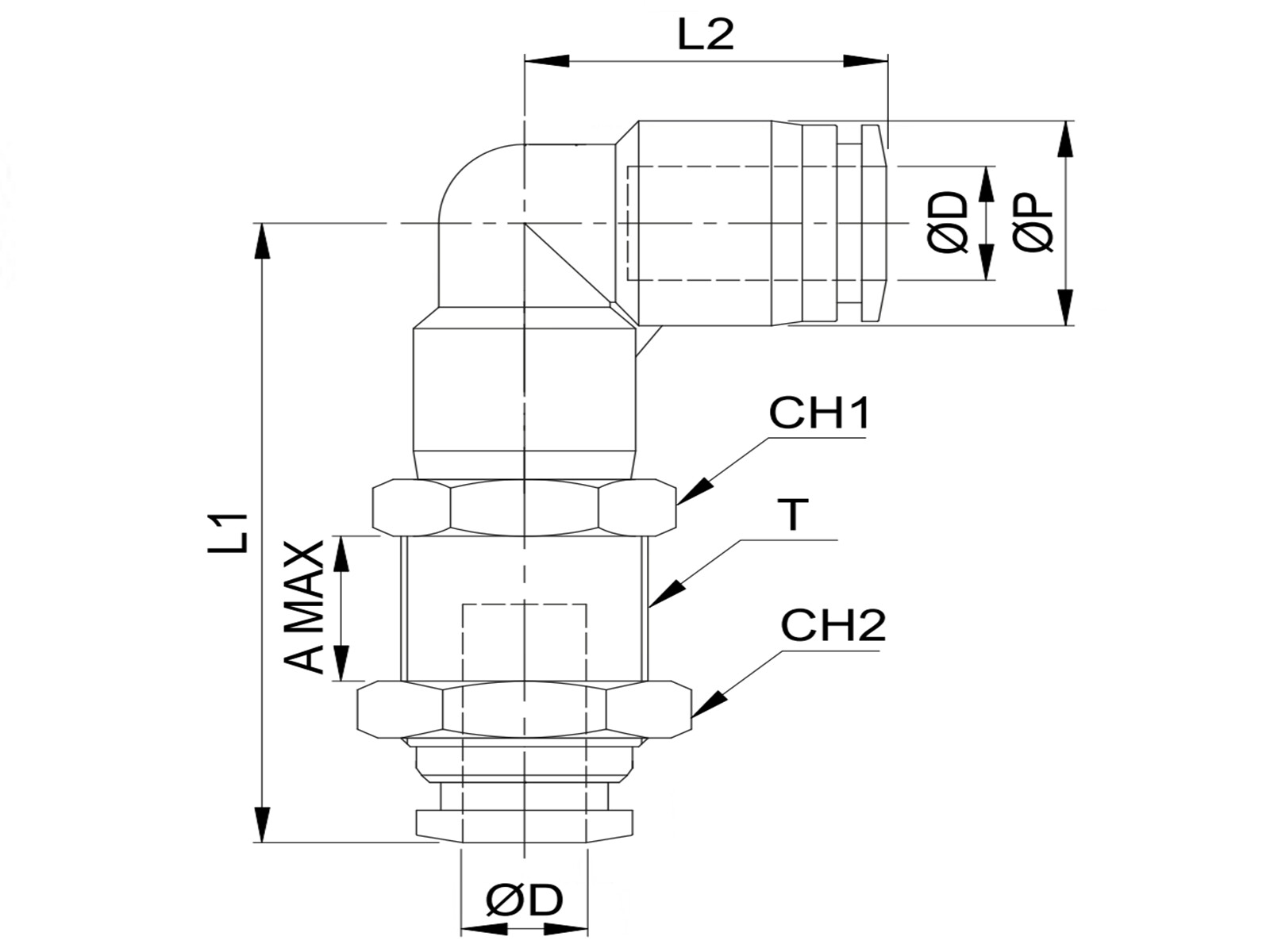

CH1
24 mm
CH2
27 mm
Dimension A max
9.7 mmm
L1
51,6 mm
L2
29,6 mm
Material
Brass, PBT-plast, POM(Acetal), Stainless steel, Zinc
Model code
WTRLM12
Pressure max.
16 bar
Sealing material
NBR
Series
Pneufit C
T
M22x1
Temperature max.
+80 °C
Temperature min.
-20 °C
Tube Insertion Depth
22.9 mm
Tube Tollerance
± 0,15 mm
Vacuum max.
-0.9 bar
ØD
12 mm
ØP
21,5 mm
Package size
5 st
Barcode
362435
Gross weight
Kg
Net weight
Kg
Country of origin
swe
Skottgenomgång 90 Ø12mm
