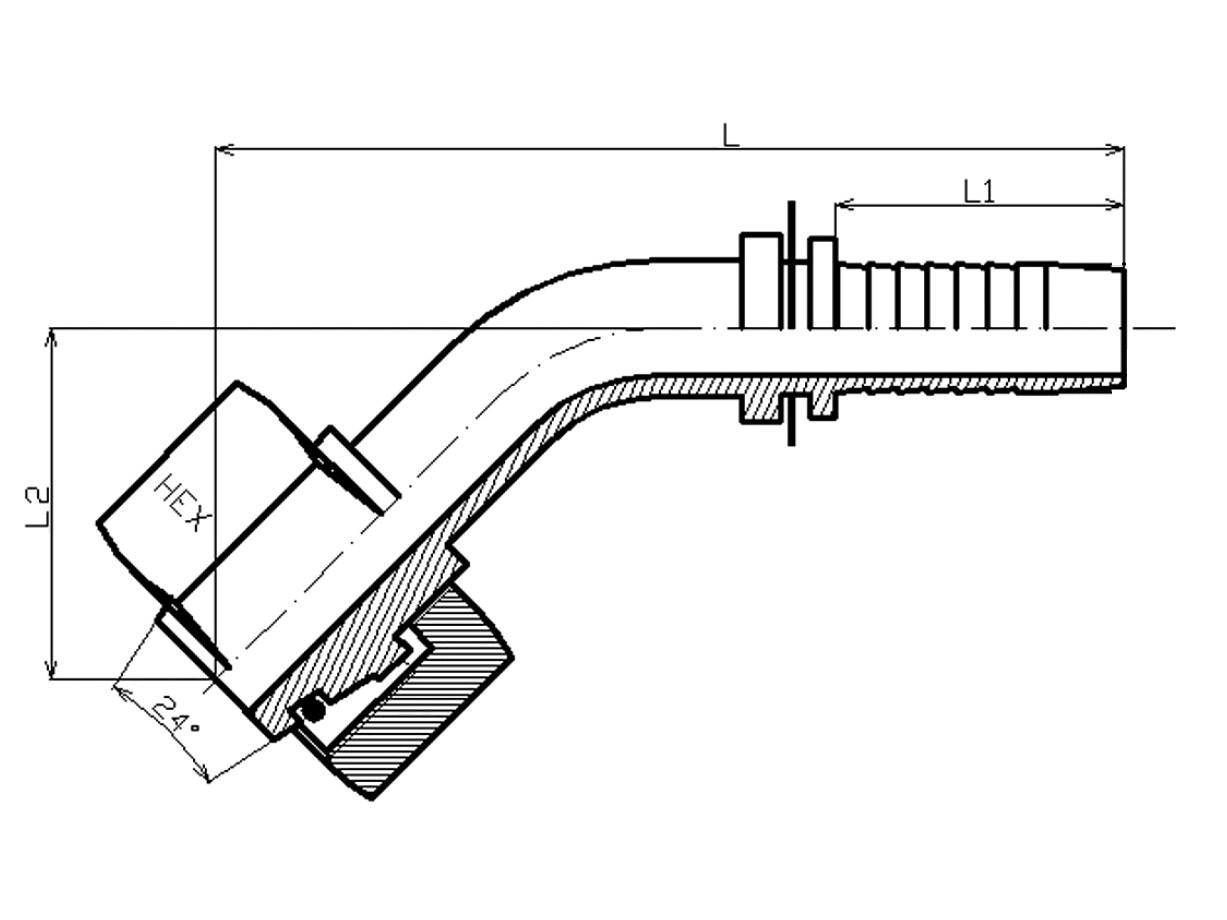

1/4" Insert - (10L) M16x1.5 female - 45° - AISI316
Connection: MM female thread and 24° cone face with o-ring (DIN2353).
Sealing: O-ring against cone face.
Partnumber:
4742-10-04-SY
Package size:
1 st
Min. order quantity is:
1 st
Angle
45 °
Brand Name
Hydraspecma
Diameter pipe
10 mm
Dimension L1
28 mm
Hose coupling type
For separate ferrule
Hose size
1/4 "
Key size
19 mm
Material
Stainless steel
Material quality
1.4571 / AISI316Ti
Model code
84306161004
Sealing material
NBR
Series
L
Temperature max.
+100 °C
Temperature min.
-30 °C
Torque tightening
18 Nm
Package size
1 st
Barcode
225191
Gross weight
0,48 Kg
Net weight
0,48 Kg
Country of origin
ESP
Intrastat code
73269098
Connection: MM female thread and 24° cone face with o-ring (DIN2353).
Sealing: O-ring against cone face.
