OMH 500 Orbitmotor Spline 14T 12/24

Artikelnummer:

151H1056

Förpackningsstorlek:

1 pcs

Minsta beställningskvantitet:

1 pcs

Reservdelar (1)

Seal kit OMH

Partnumber: 151H1100

Specifications
Dimensions and shipping

Brand Name

White

Continuous power max.

11 kW

Continuous rotation max.

155 rpm

Displacement

470.6 cm3

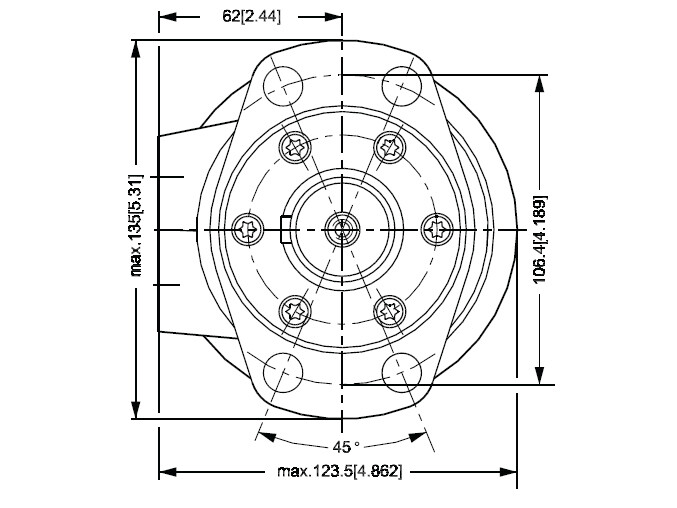

Holes circle

106.4 mm

208,3 mm

65 mm

Mounting flange

SAE-A4 Magneto

Number of mounting holes

Number of outer grooves

Oil viscocity recommended

20 - 75 cSt

Port position

Side

Pressure drop continuous max.

125 bar

Recess

82,5 mm

Sealing material

NBR

Shaft diameter

31,75 mm

Shaft spline

14T 12/24 SAE-C

Shaft type

Spline

Thread

7/8-14 UNF

Torque continuous max.

820 Nm

Package size

1 pcs

Barcode

368957

Gross weight

13,57 Kg

Net weight

13,57 Kg

Country of origin

Intrastat code

84122981

Product information

OMH 500 Orbitmotor Spline 14T 12/24
