OMM 12,5 HYDRAULIC MOTOR
OMM 12,5 HYDRAULIC MOTOR
Partnumber:
151G0027
Package size:
1 st
Min. order quantity is:
1 st
Brand Name
White
C
M6
Continuous power max.
2.4 kW
Continuous rotation max.
1550 rpm
D
G 3/8 BSP
Displacement
12.5 cm3
Drainport
G 1/8 BSP
E
G 1/8 BSP
Holes circle
45 mm
Intermittent Rotation speed Max.
1940
Intermittent Torque Max.
23 Nm
L
106 mm
L1
5,5 mm
Model code
151G0027
Mounting flange
OMM 45
Number of mounting holes
3
Number of outer grooves
9
Oil viscocity recommended
20 - 75 cSt
Port position
Side
Power max.
3.2 kW
Pressure continous max.
140 bar
Pressure drop continuous max.
100 bar
Pressure intermittent max.
175 bar
Pressure peak max.
225 bar
Recess
31,5 mm
Rotational speed max.
1940 rpm
Sealing material
NBR
Shaft diameter
16,5 mm

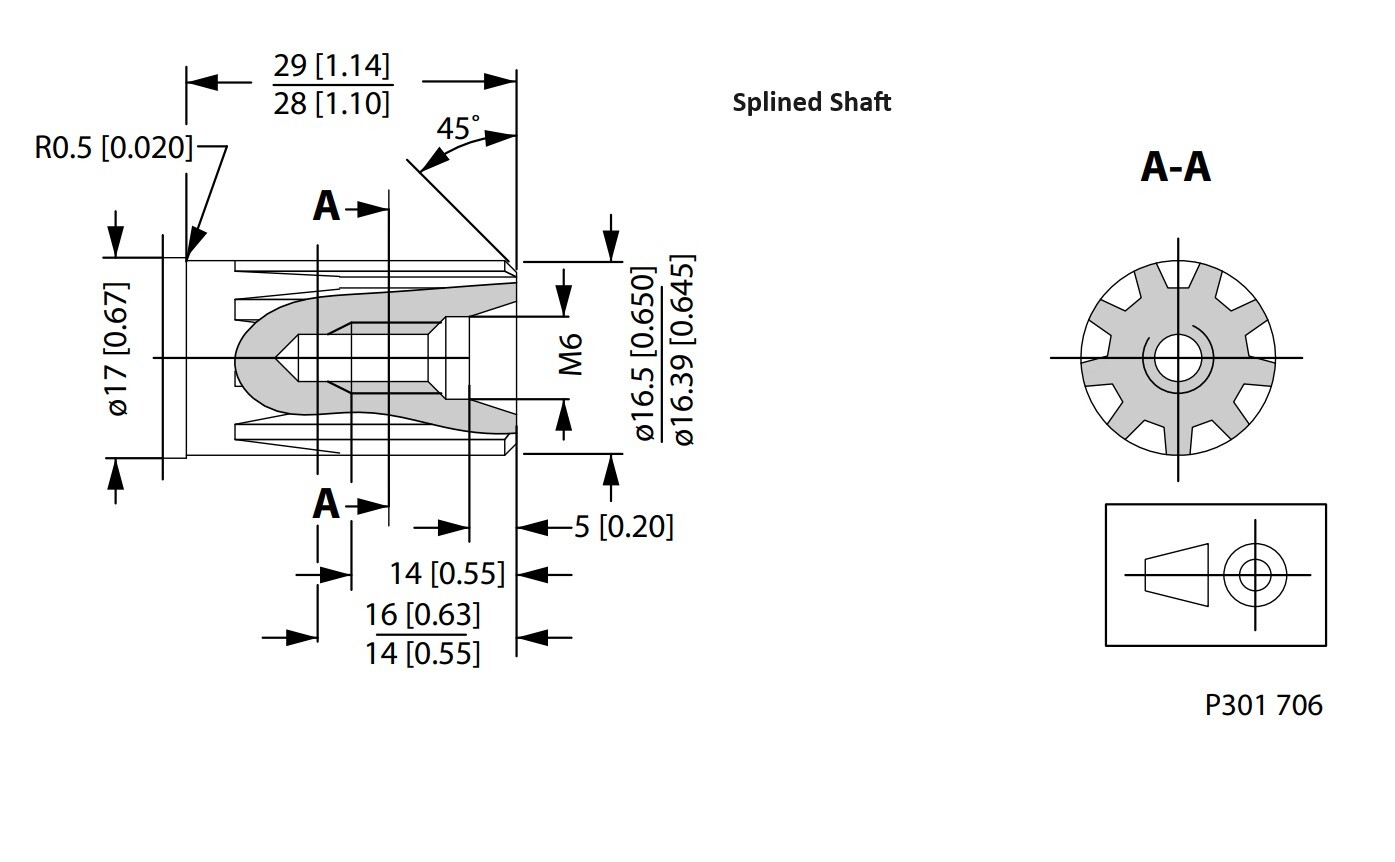

Shaft spline
B 17x14xe9 DIN 5482
Shaft type
Spline
Torque continuous max.
17 Nm
Torque output max.
23 Nm
Working ports
G 3/8 BSP
Package size
1 st
Barcode
333795
Gross weight
2,12 Kg
Net weight
2,12 Kg
Country of origin
Intrastat code
84122981
OMM 12,5 HYDRAULIC MOTOR
