OMT 200 HYDRAULIC MOTOR
Orbital motor for heavy applications. Shaft with taper roller bearings ensures high static and dynamic bearing capacity. Orbit kit with rollers, separate integrated valve. High volumetric and mechanical efficiency. Long durability at high pressure. OMT has internal flush valves.
Artikelnummer:
151B3019
Förpackningsstorlek:
1 st
Minsta beställningskvantitet:
1 st
Antal monteringshål
4
Arbetsportar
G 3/4 BSP

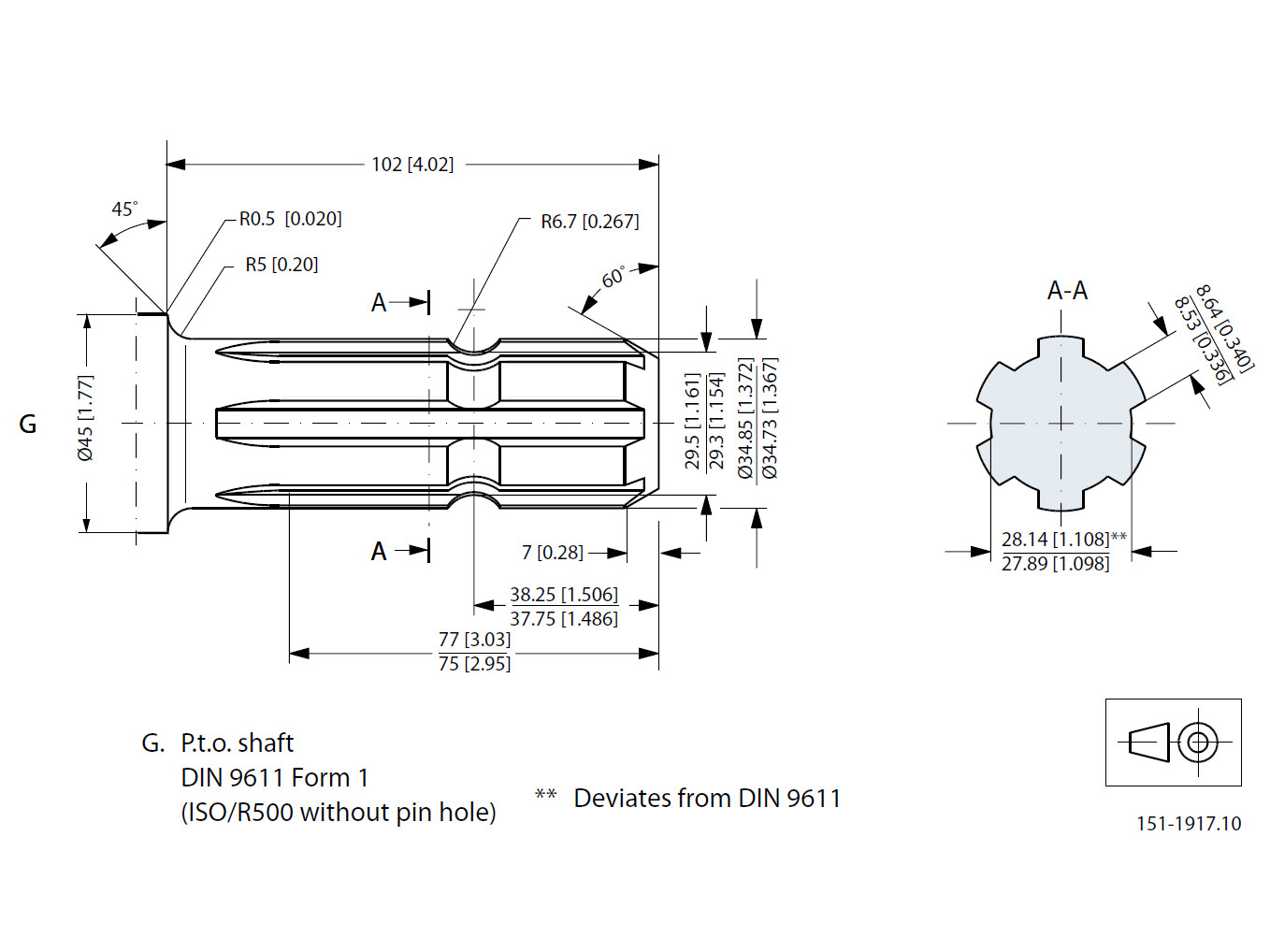

Axel spline
1.3/8" Z6 PTO
Axeltyp
PTO
Bultcirkel
160 mm
Deplacement
201.4 cm3
Dimension L
195 mm
Dimension L1
16.5 mm
Dimension L2
145 mm
Dimension L3
102 mm
Dräneringsport
G 1/4 BSP
Föroreningsgrad max.
22/20/16 - ISO 4406
Kont. rotation max.
625 rpm
Kontinuerlig effekt max.
33.5 kW
Moment kontinuerlig max.
590 Nm
Monteringsfläns
Square 125
Märke namn
Danfoss
Oljeviskositet rekommanderad
20 - 75 cSt
Portplacering
Side
Reces
125,0 mm
Temperatur omgivning max.
+90 °C
Temperatur omgivning min.
-30 °C
Tryckfall kontinuerlig max.
200 bar
Utv. Splinesantal
6
Package size
1 st
Barcode
333777
Gross weight
20,95 Kg
Net weight
20,95 Kg
Country of origin
Intrastat code
84122981
Orbital motor for heavy applications. Shaft with taper roller bearings ensures high static and dynamic bearing capacity. Orbit kit with rollers, separate integrated valve. High volumetric and mechanical efficiency. Long durability at high pressure. OMT has internal flush valves.
