OMT 250 HYDRAULIC MOTOR

Orbital motor for heavy applications. Shaft with taper roller bearings ensures high static and dynamic bearing capacity. Orbit kit with rollers, separate integrated valve. High volumetric and mechanical efficiency. Long durability at high pressure. OMT has internal flush valves.

Varenummer:
151B3014

Pakke str.:
1 st

Min. bestillingsenhed er:
1 st
Seal kit for OMT ser. 1 + 2
Artikelnummer: 151B0113
Brand Name
Danfoss

Contamination level max.
22/20/16 - ISO 4406

Continuous power max.
33.5 kW

Continuous rotation max.
500 rpm

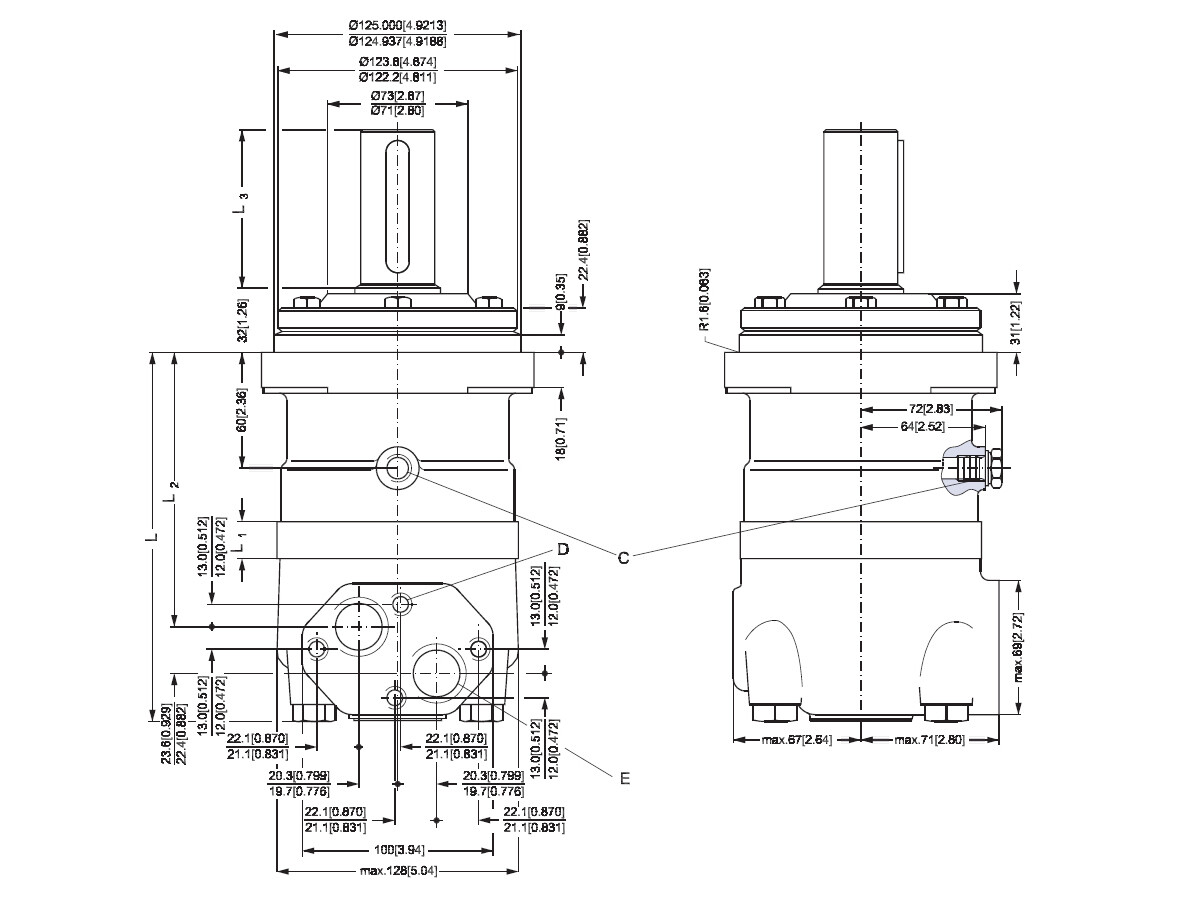

Dimension L
201 mm

Dimension L1
27.8 mm

Dimension L2
151 mm

Dimension L3
82 mm

Displacement
251.8 cm3

Drainport
G 1/4 BSP

Holes circle
160 mm

Mounting flange
Square 125

Number of mounting holes
4

Oil viscocity recommended
20 - 75 cSt

Port position
Side

Pressure drop continuous max.
200 bar

Recess
125,0 mm

Shaft cone
1:10

Shaft keyway
12,0 mm

Shaft type
Tapered

Temperature ambient max.
+90 °C

Temperature ambient min.
-30 °C

Torque continuous max.
730 Nm

Working ports
G 3/4 BSP
Förpackningsstorlek
1 st

Streckkod
333776

Bruttovikt
21,30 Kg

Nettovikt
21,30 Kg

Ursprungsland

Intrastat artikelkod
84122981

Orbital motor for heavy applications. Shaft with taper roller bearings ensures high static and dynamic bearing capacity. Orbit kit with rollers, separate integrated valve. High volumetric and mechanical efficiency. Long durability at high pressure. OMT has internal flush valves.
