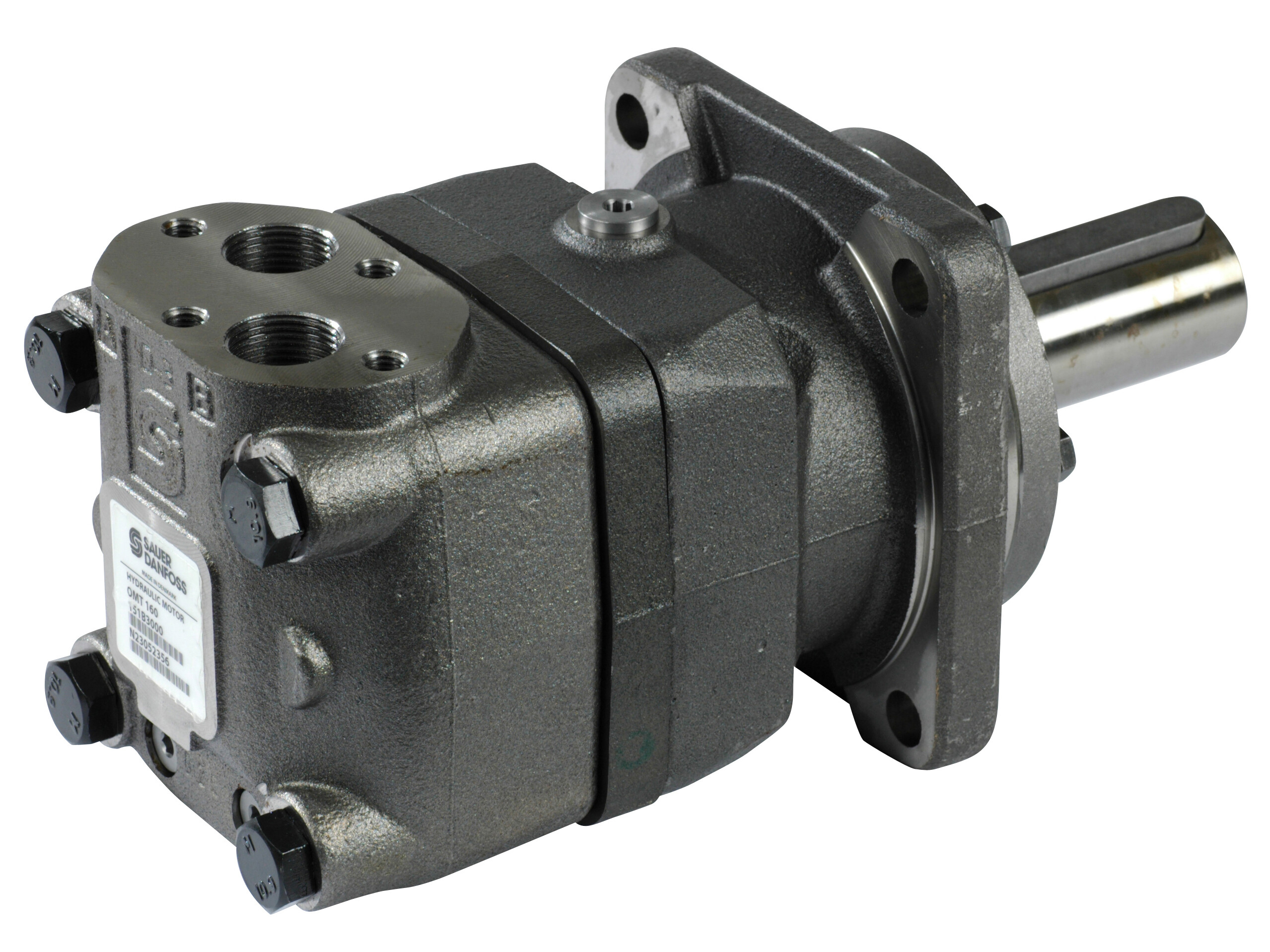

OMT 315 HYDRAULIC MOTOR
Orbital motor for heavy applications. Shaft with taper roller bearings ensures high static and dynamic bearing capacity. Orbit kit with rollers, separate integrated valve. High volumetric and mechanical efficiency. Long durability at high pressure. OMT has internal flush valves.
Partnumber:
151B3003
Package size:
1 st
Min. order quantity is:
1 st
Aksel diameter
40 mm
Aksel notgang
12,0 mm
Akseltype
Cylindrical
Antal montage huller
4
Arbejdsporte
G 3/4 BSP
Boltcirkel
160 mm
Dimension L
211 mm
Dimension L1
37 mm
Dimension L2
161 mm
Dimension L3
82 mm
Drænport
G 1/4 BSP
Fortrængning
326.3 cm3
Forureningsgrad maks.
22/20/16 - ISO 4406
Kontinuerlig effekt maks.
33.5 kW
Moment kontinuerlig maks.
950 Nm
Monteringsflange
Square 125
Mærke navn
Danfoss
Olieviskositet anbefalet
20 - 75 cSt
Portplacering
Side
Reces
125,0 mm
Rotationshastighed kontinuerligt maks.
380 rpm
Temperatur omgivelse maks.
+90 °C
Temperatur omgivelse min.
-30 °C
Trykfald kontinuerlig maks.
200 bar
Förpackningsstorlek
1 st
Streckkod
333838
Bruttovikt
22,80 Kg
Nettovikt
22,80 Kg
Ursprungsland
Intrastat artikelkod
84122981
Orbital motor for heavy applications. Shaft with taper roller bearings ensures high static and dynamic bearing capacity. Orbit kit with rollers, separate integrated valve. High volumetric and mechanical efficiency. Long durability at high pressure. OMT has internal flush valves.
