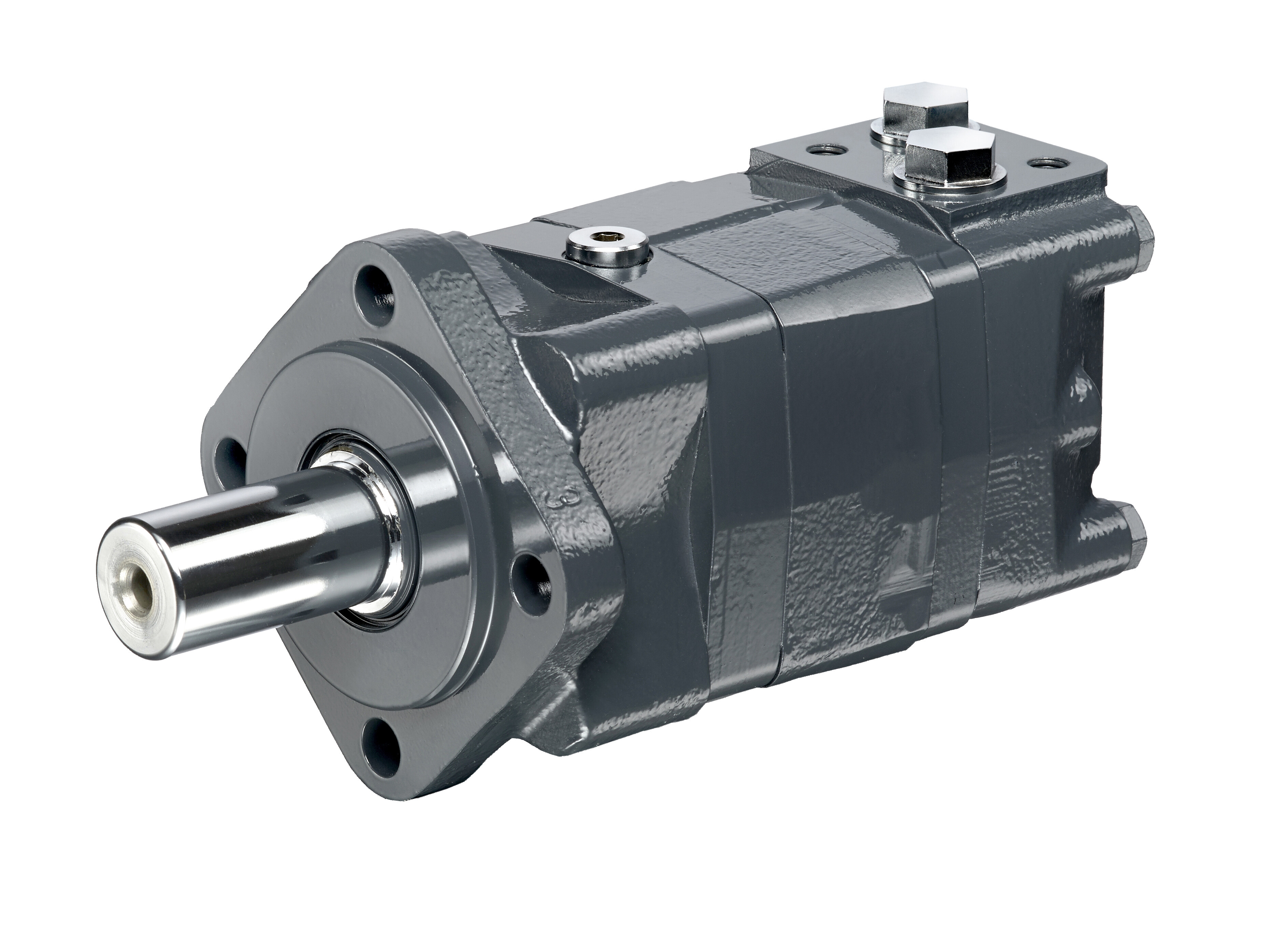

Orbit Motor WS 160 CR SAE A 4-hul ø32mm Black

Orbit Motor WS 160 CR SAE A 4-hul ø32mm Black

Orbit Motor WS 160 CR SAE A 4-hul ø32mm Black

Orbit Motor WS 160 CR SAE A 4-hul ø32mm Black

Orbit Motor WS 160 CR SAE A 4-hul ø32mm Black

Artikelnummer:

11199751

Förpackningsstorlek:

1 st

Minsta beställningskvantitet:

1 st

Specifications
Dimensions and shipping

Brand Name

Impro Fluidtek

Continuous rotation max.

471 rpm

Displacement

160 cm3

Drainport

G 1/4 BSP

Holes circle

106.4 mm

Mounting flange

SAE-A4

Number of mounting holes

4

Oil viscocity recommended

20 - 75 cSt

Port position

Side

Pressure drop continuous max.

210 bar

Recess

82,5 mm

Shaft diameter

32 mm

Shaft keyway

10,0 mm

Shaft type

Cylindrical

Torque continuous max.

466 Nm

Working ports

G 1/2 BSP

Package size

1 st

Barcode

369248

Gross weight

11,15 Kg

Net weight

11,15 Kg

Country of origin

Intrastat code

84122981

Product information

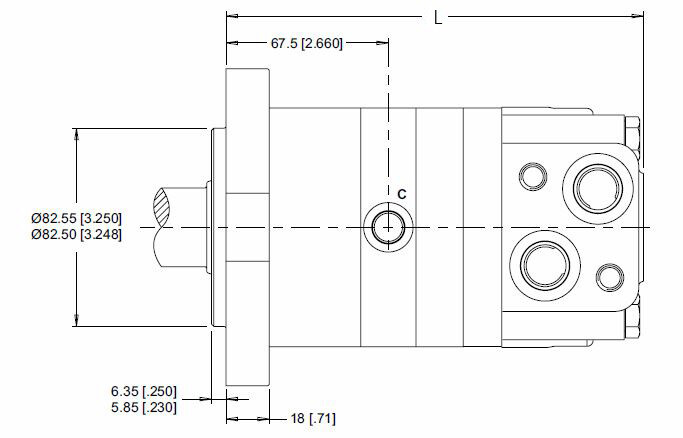

Measure sketch

Orbit Motor WS 160 CR SAE A 4-hul ø32mm Black

Orbit Motor WS 160 CR SAE A 4-hul ø32mm Black
