Orbit Motor WP 060 CR SAE A 2-hole ø25mm Black
Orbit Motor WP 060 CR SAE A 2-hole ø25mm Black
Artikelnummer:
11199459
Förpackningsstorlek:
1 st
Minsta beställningskvantitet:
1 st
Brand Name
Impro Fluidtek
Continuous rotation max.
1185 rpm

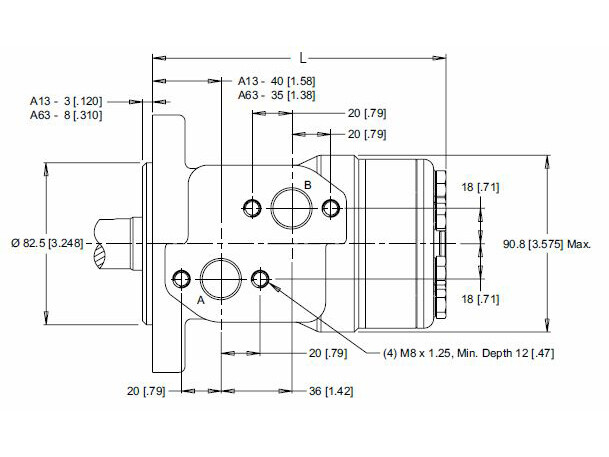

Dimension L
132 mm
Displacement
69 cm3
Drainport
G 1/4 BSP

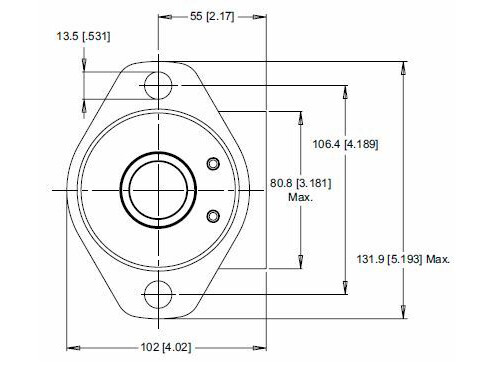

Holes circle
106.4 mm
Model code
155060A6312BAA
Mounting flange
SAE-A2
Number of mounting holes
2
Oil viscocity recommended
20 - 43 cSt
Port position
Side
Pressure drop continuous max.
160 bar
Recess
82,5 mm
Shaft diameter
25 mm
Shaft keyway
8,0 mm
Shaft type
Cylindrical
Torque continuous max.
125 Nm
Working ports
G 1/2 BSP
Förpackningsstorlek
1 st
Streckkod
369255
Bruttovikt
Kg
Nettovikt
Kg
Ursprungsland
Intrastat artikelkod
84122981
Orbit Motor WP 060 CR SAE A 2-hole ø25mm Black
