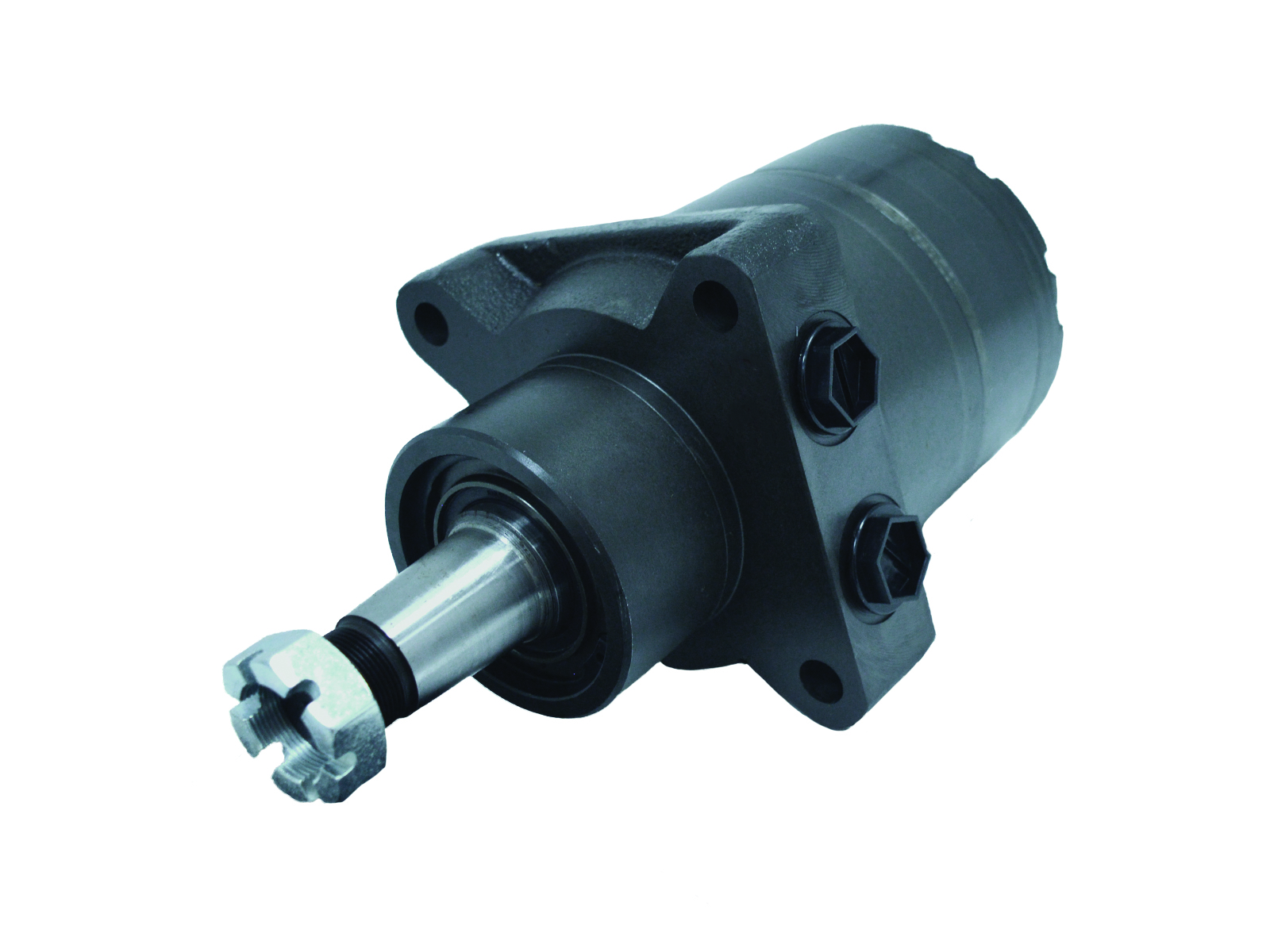

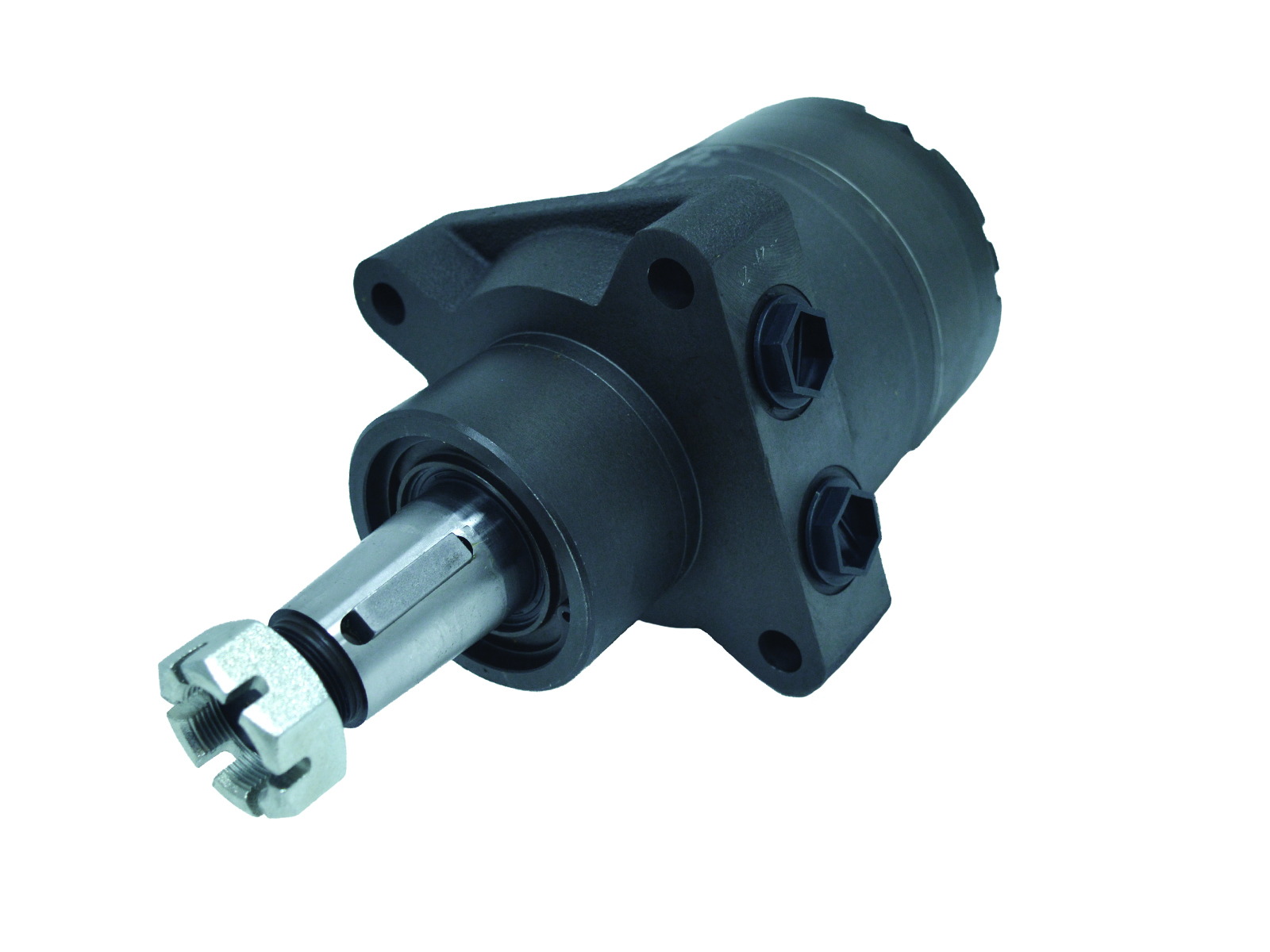

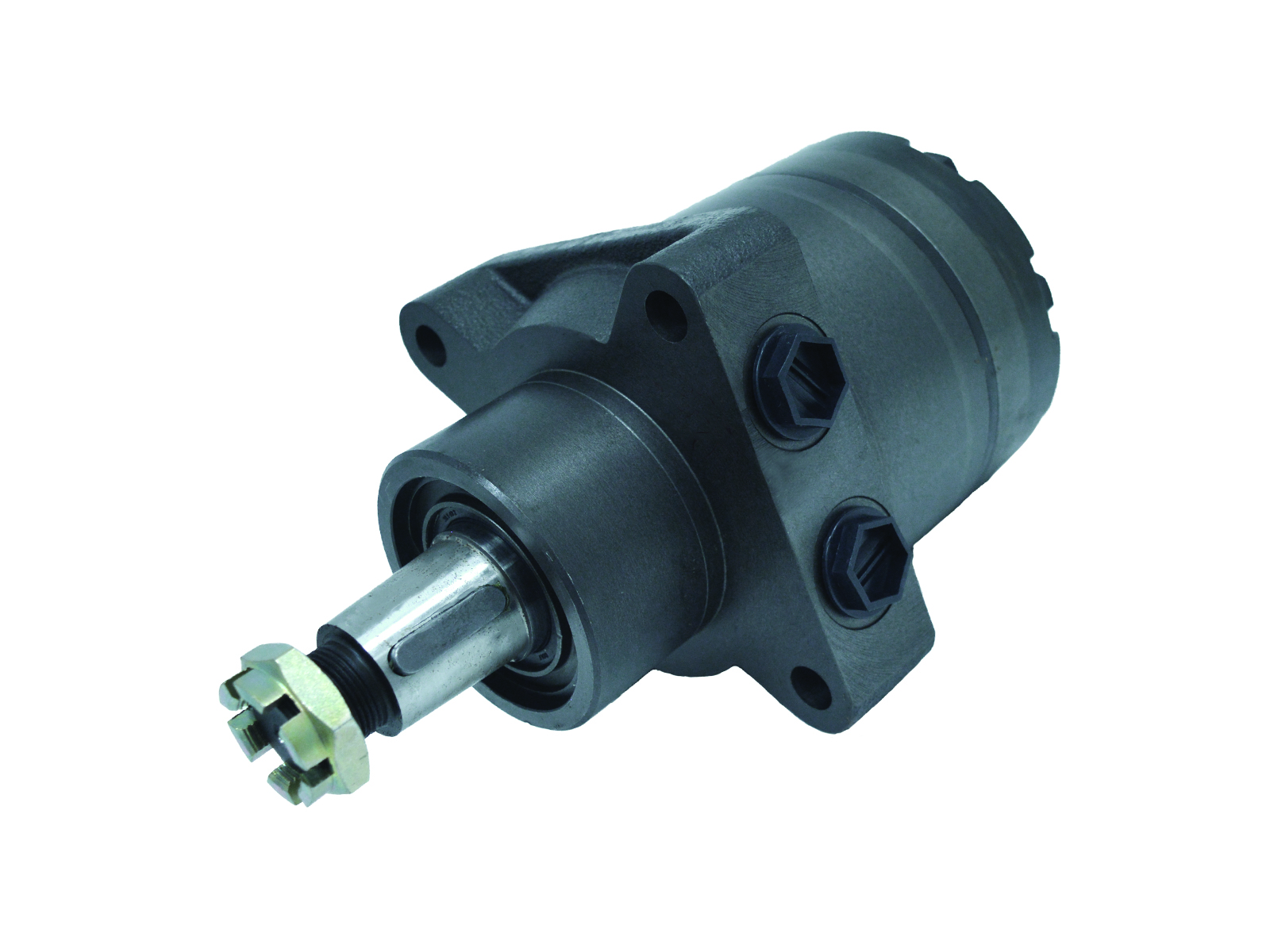

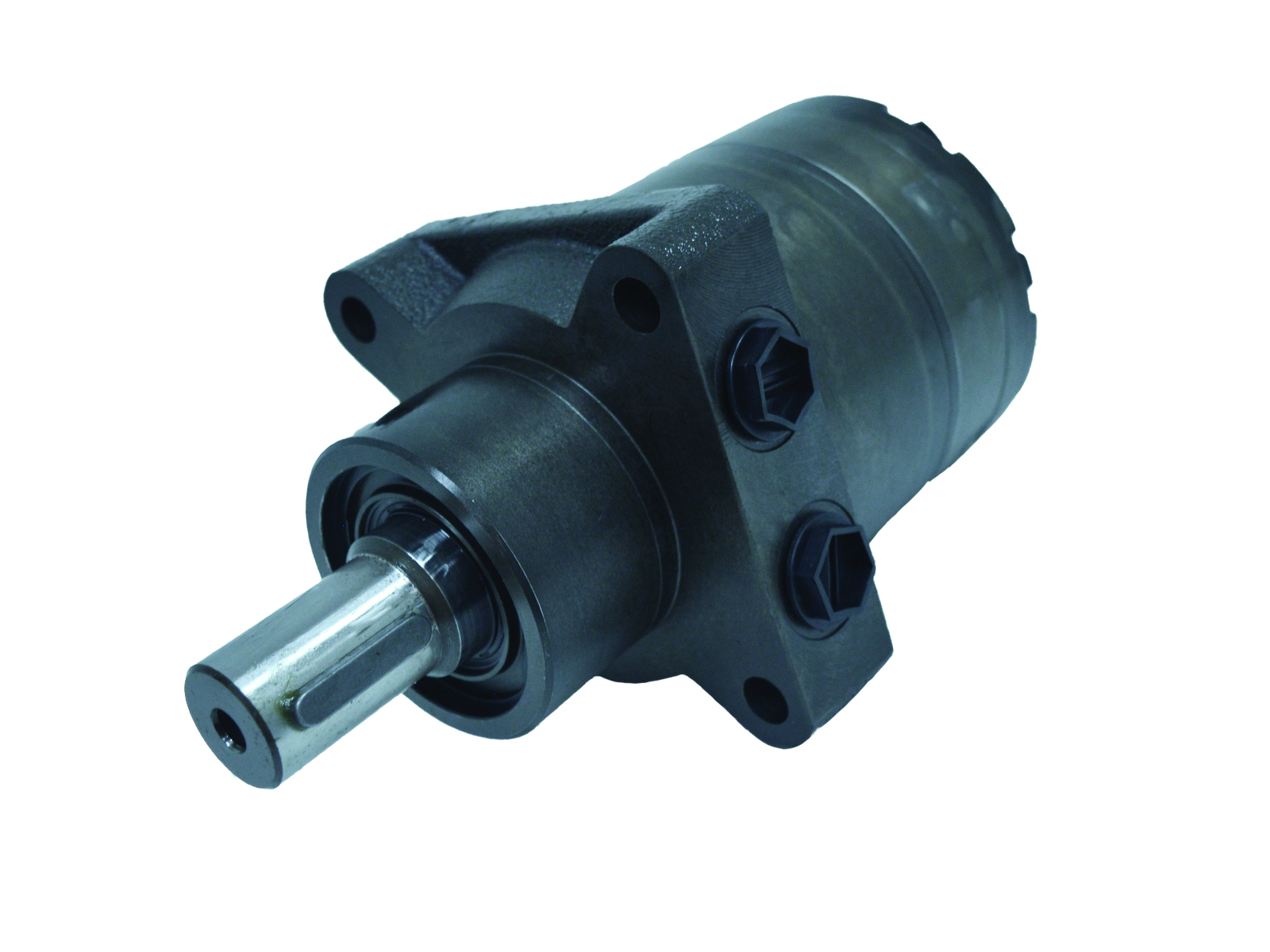

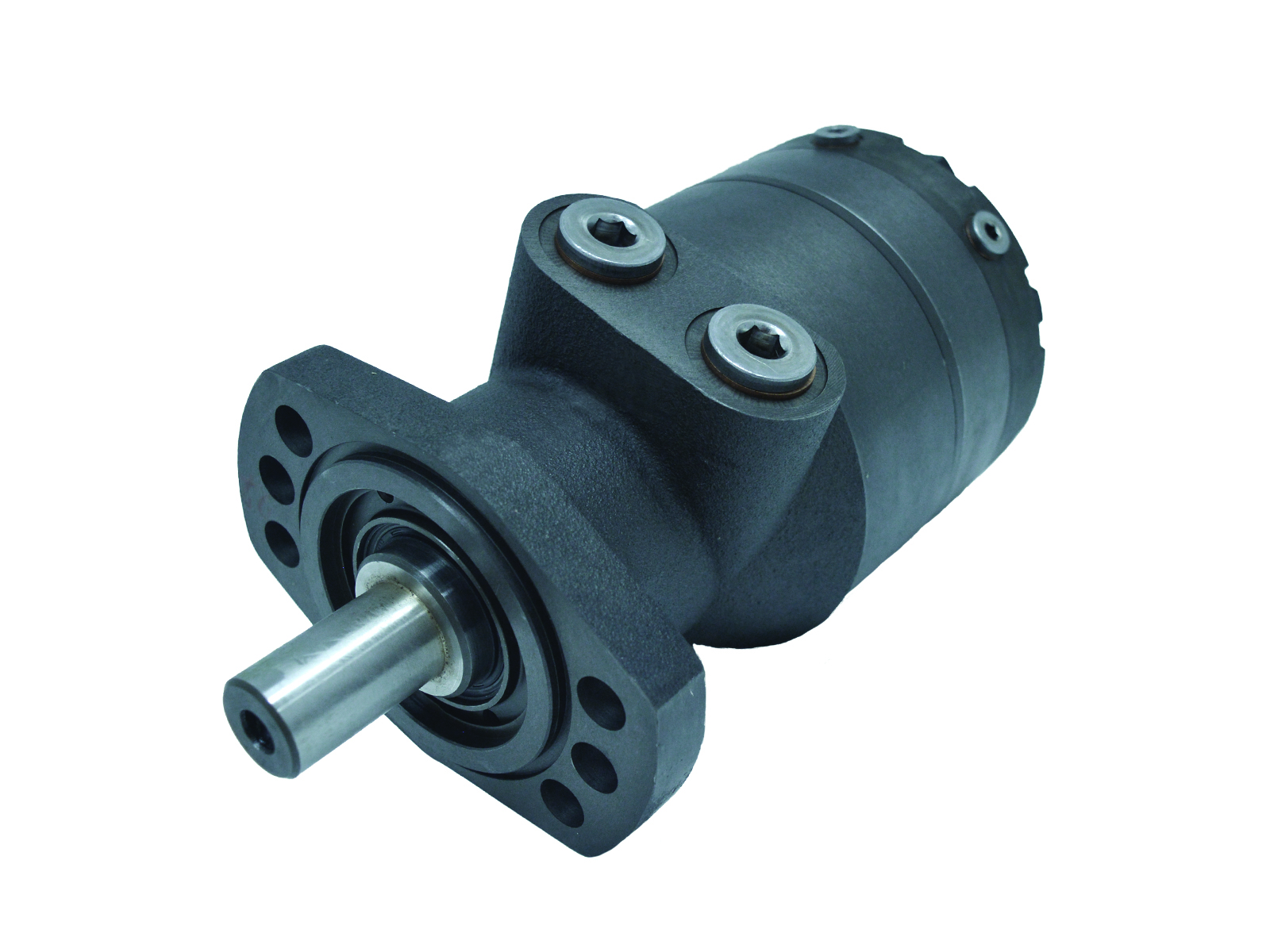

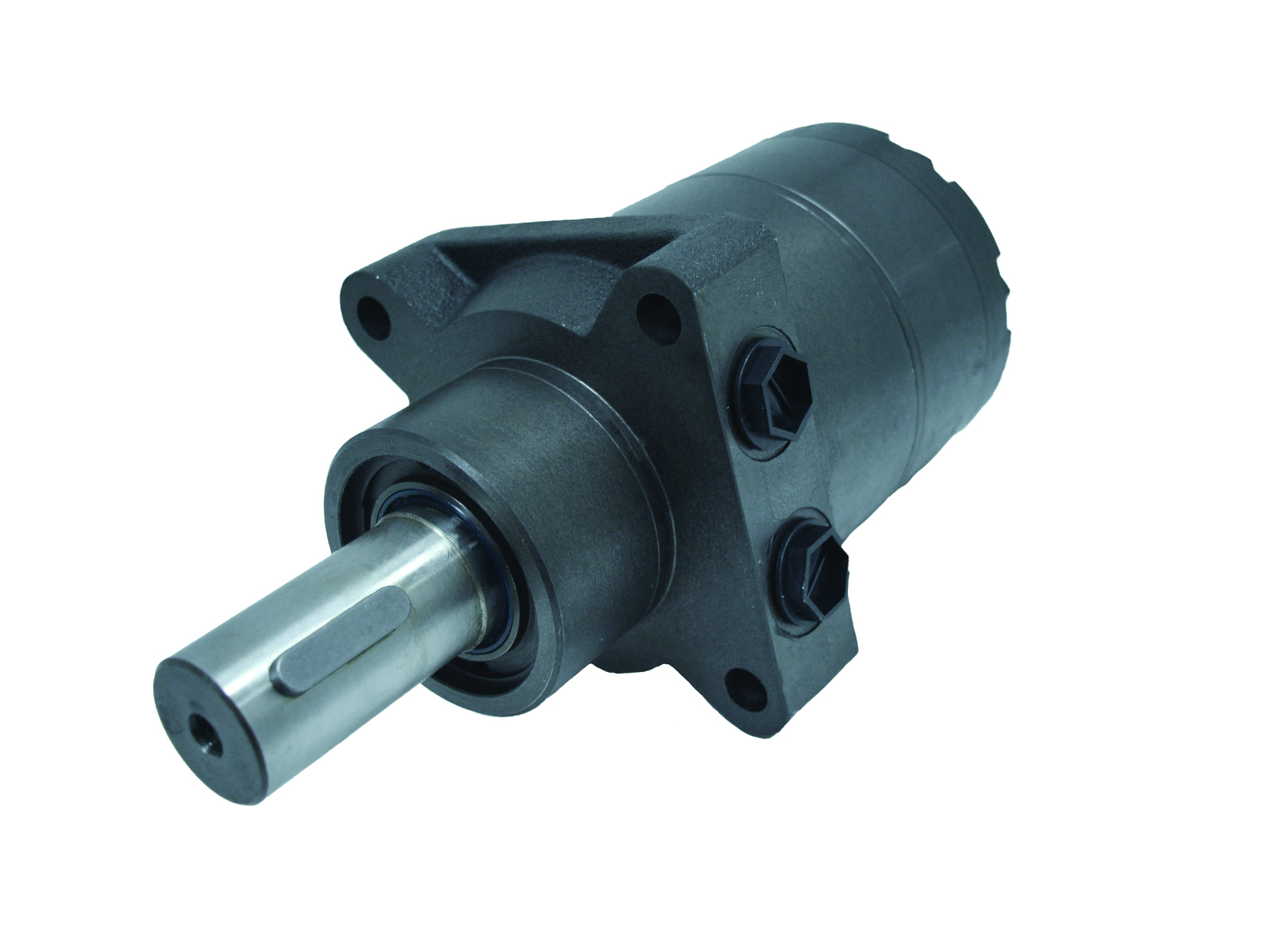

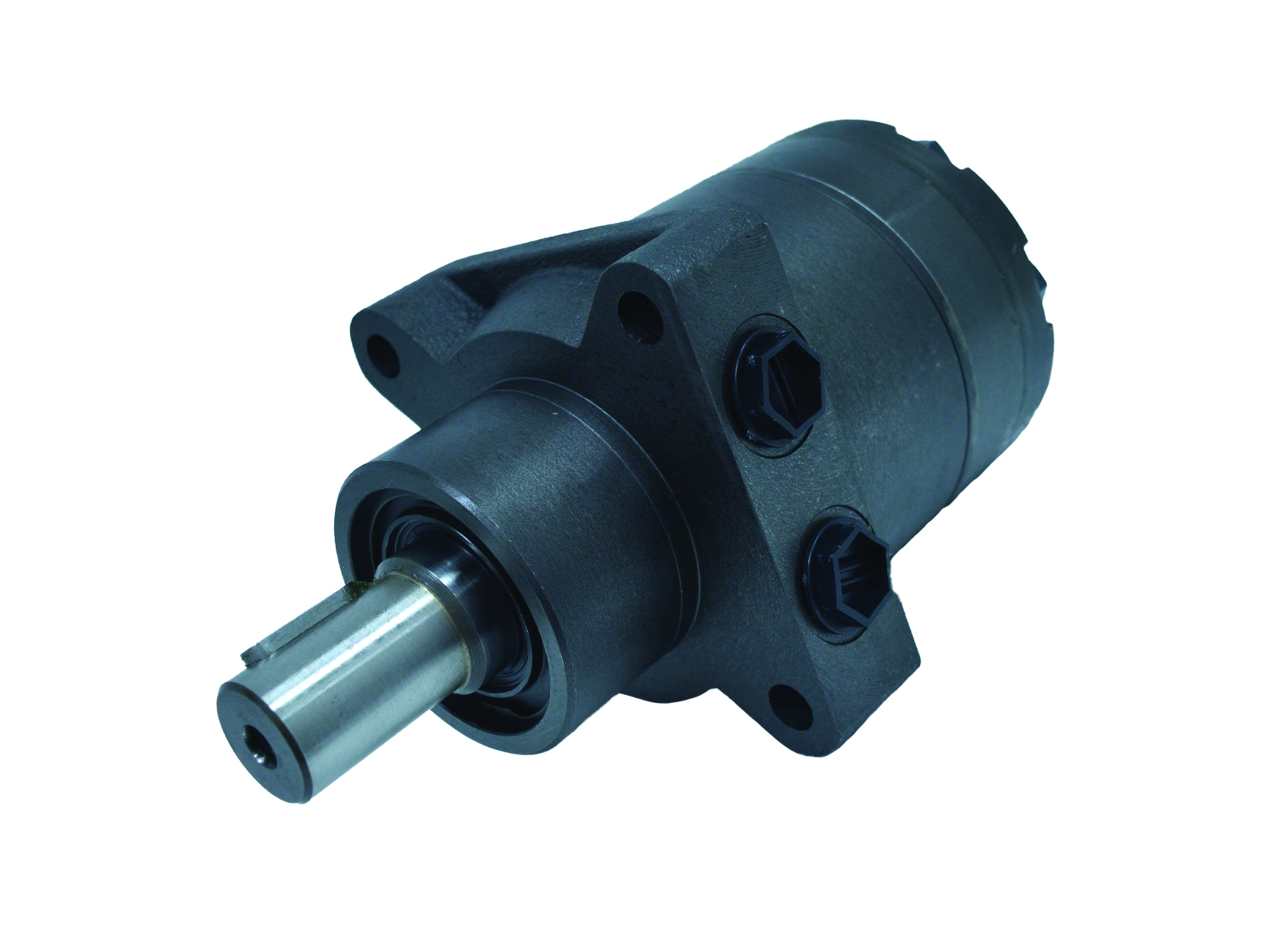

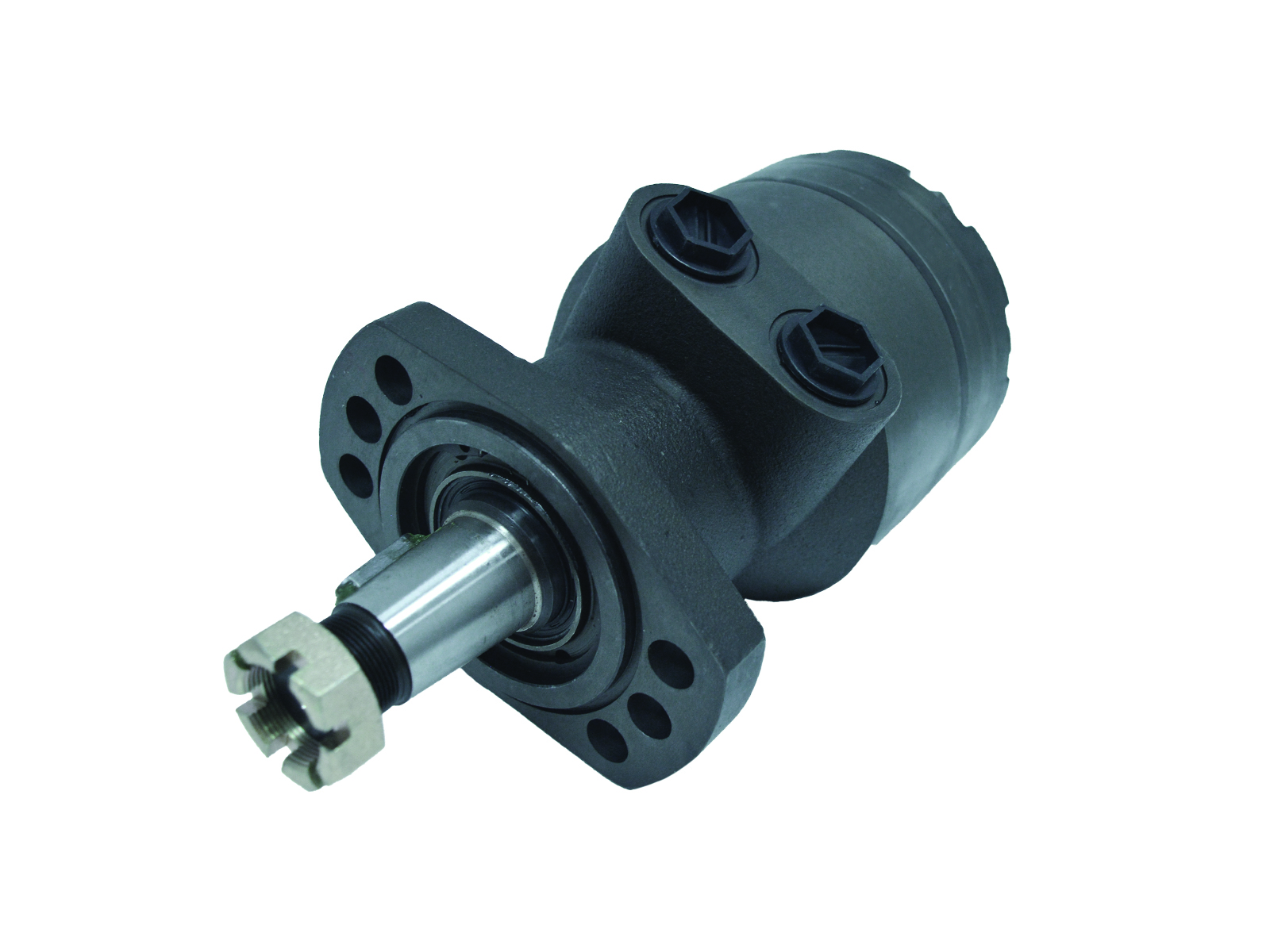

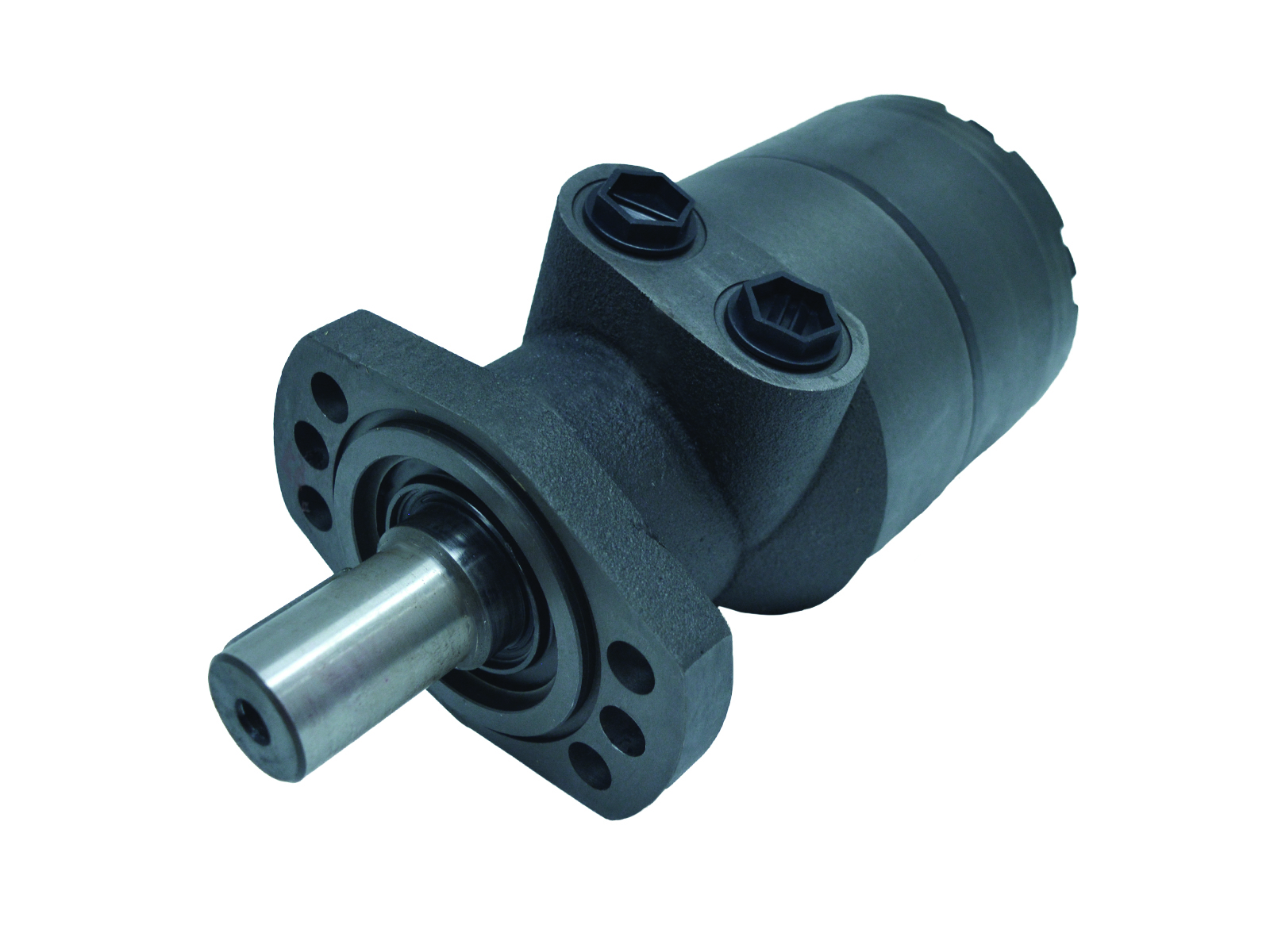

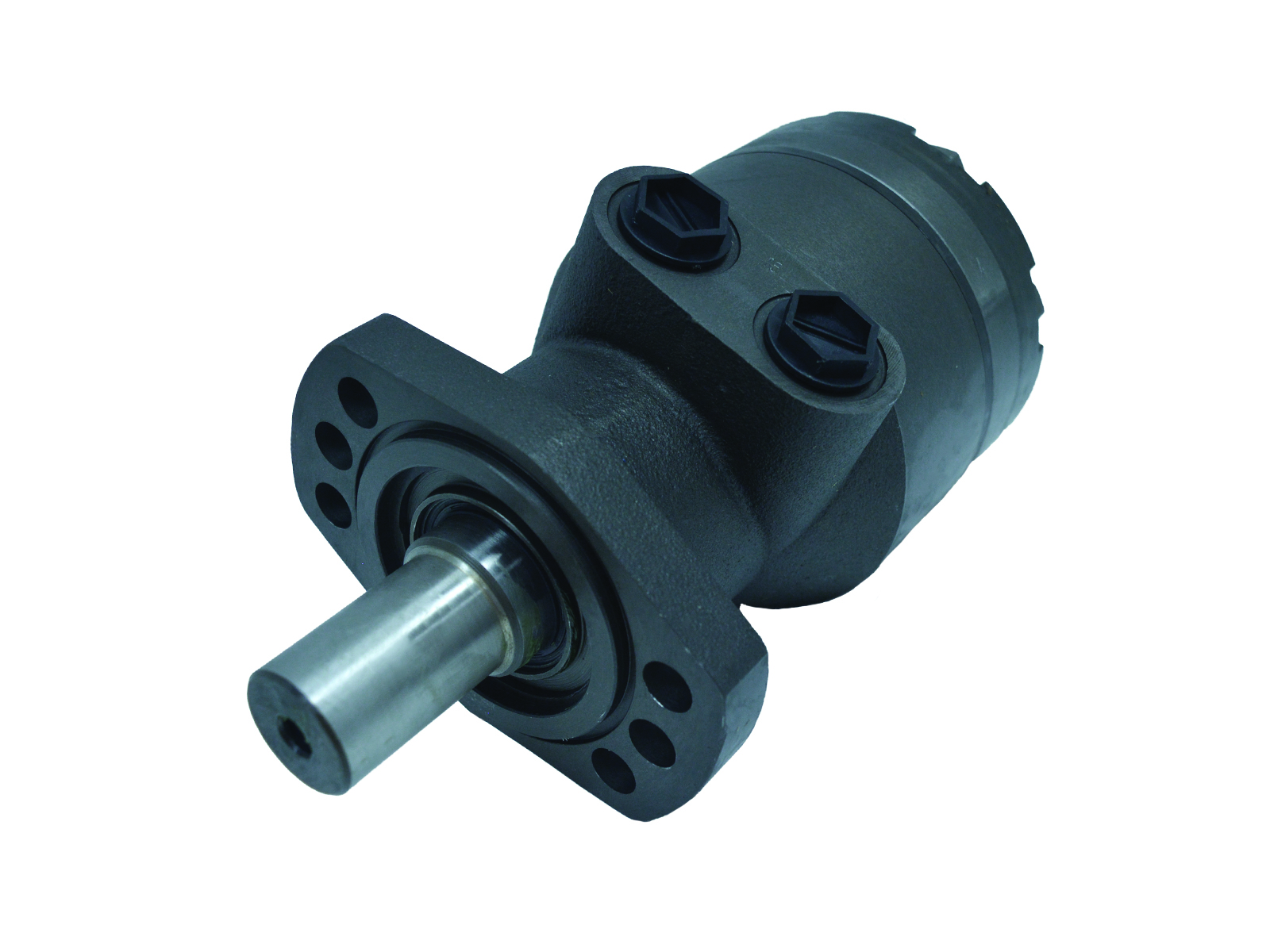

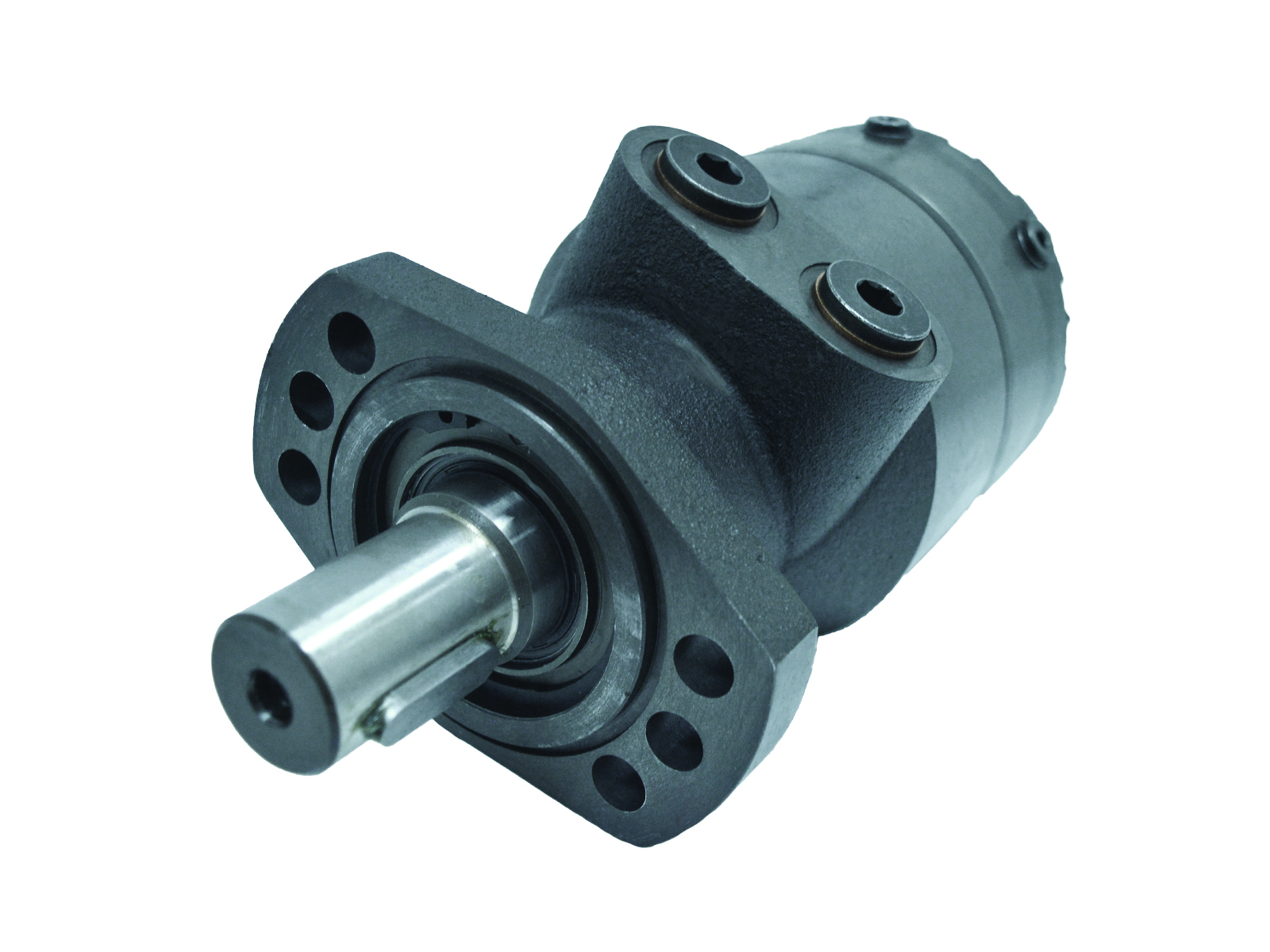

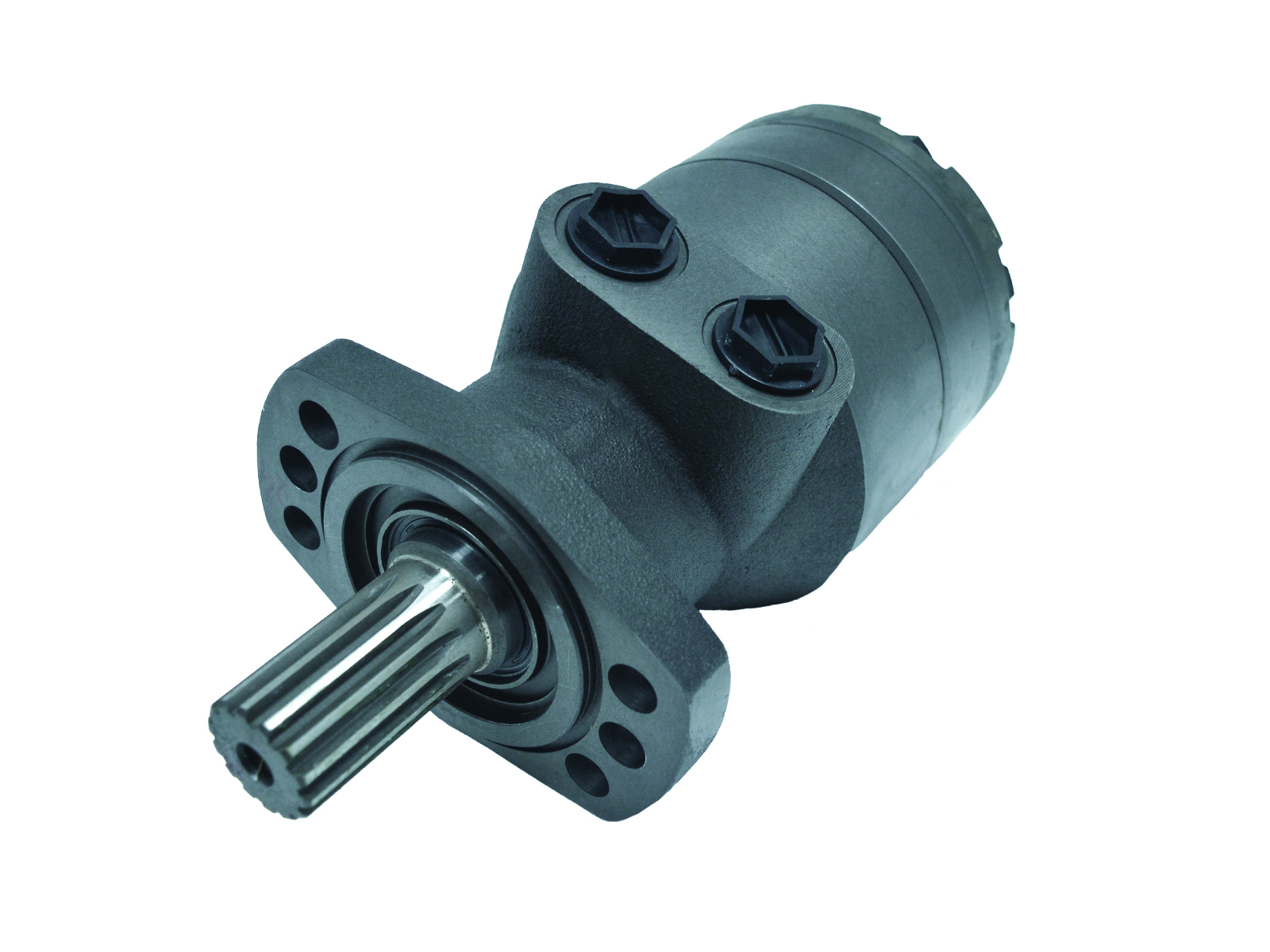

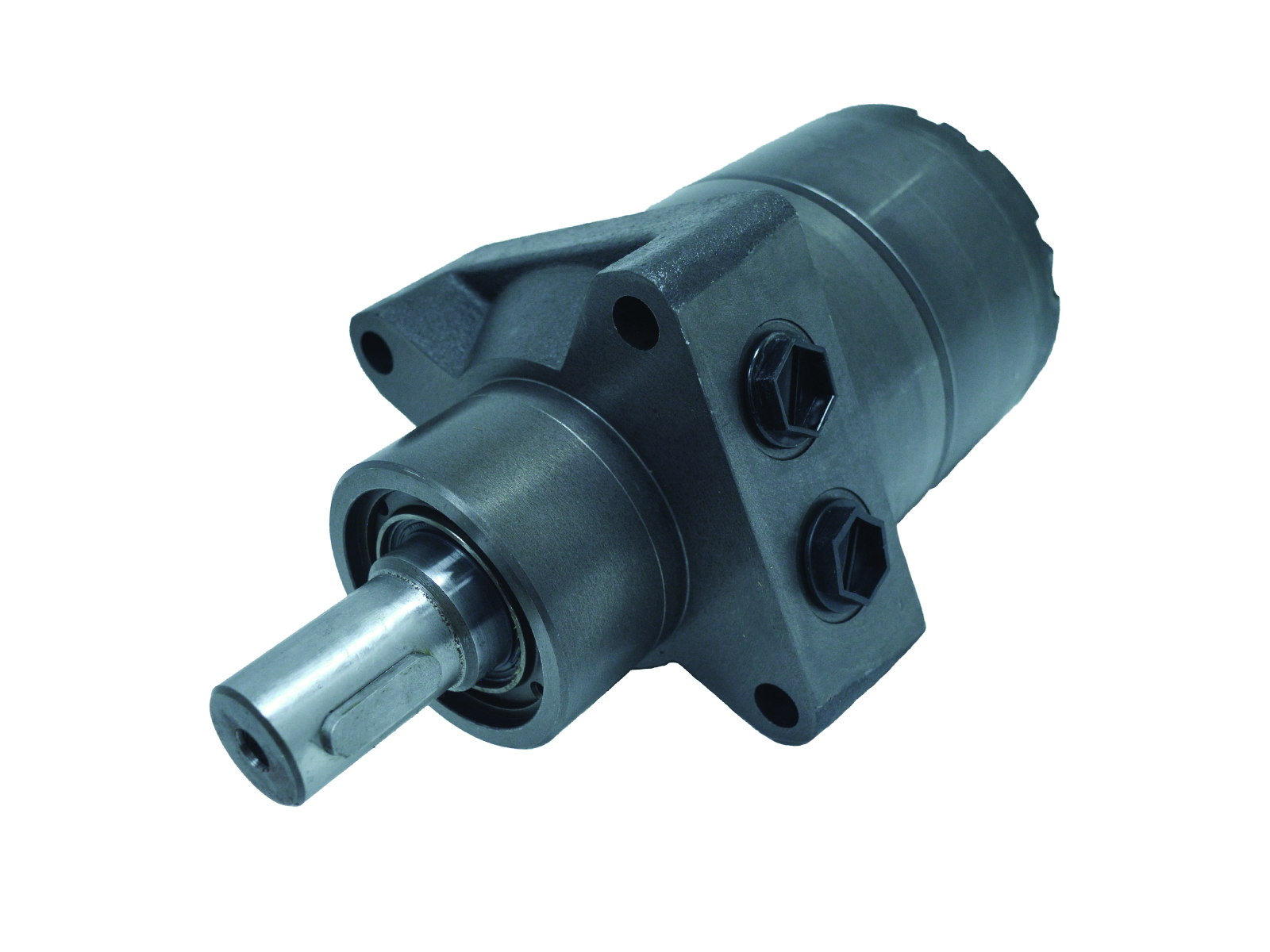

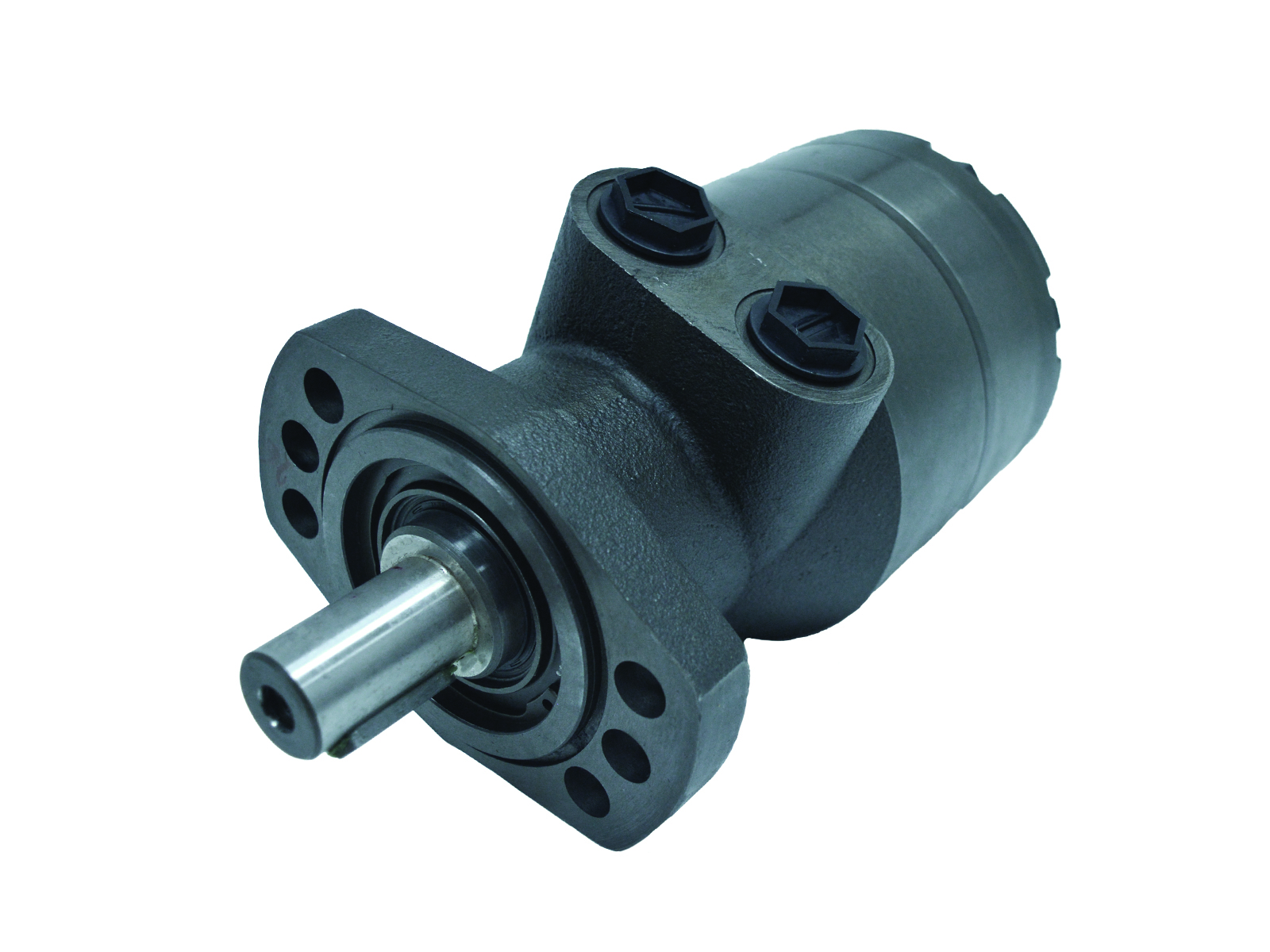

Orbital motors M+S HW series

SELECT VARIANT

Partnumber	Description	Displacement	Shaft diameter	Shaft type	Continuous power max.
HWF125M2	HWF125M2	126 cm3	32 mm	Cylindrical	16.2 kW
HWF160M2LL	HWF160M2LL	157.8 cm3	32 mm	Cylindrical	17.6 kW
HWF200M2LL	HWF200M2LL	201.3 cm3	32 mm	Cylindrical	18.6 kW
HWF300CO2	HWF300CO2	300 cm3	25 mm	Cylindrical	16.5 kW
HWF315R2LL	HWF315R2LL	314.9 cm3	31,78 mm	Tapered	16.4 kW
HWF350K2	HWF350K2	347.8 cm3	31,75 mm	Cylindrical	16.5 kW
HWF350K2LL/2	HWF350K2LL/2	347.8 cm3	31,75 mm	Cylindrical	16.5 kW
HWF350M2	HWF350M2	347.8 cm3	32 mm	Cylindrical	16.5 kW
HWF350M2LL	Hydraulimoottori 347,8cm³/r SAE A4	347.8 cm3	32 mm	Cylindrical	16.5 kW
HWF350R2LL	HWF350R2LL	347.8 cm3	31,78 mm	Tapered	16.5 kW
HWF370L2LL	HWF370L2LL	369.2 cm3	31,75 mm	Spline	13.2 kW
HWF370M2LL	Hydraulimoottori 369,2cm³/r SAE A6	369.2 cm3	32 mm	Cylindrical	13.2 kW
HWF400M2	HWF400M2	396.8 cm3	32 mm	Cylindrical	12.5 kW
HWF470K2	HWF470K2	470.6 cm3	31,75 mm	Cylindrical	10.6 kW
HWF470L2R	HWF470L2R	470.6 cm3	31,75 mm	Spline	10.6 kW
HWF470T2LL	Hydraulic motor HWF470T2LL M+S	470.6 cm3	38,1 mm	Tapered	10.6 kW
HWF535L2LL	HWF535L2LL	535 cm3	31,75 mm	Spline	9.4 kW
HWF535M2	HWF535M2	535 cm3	32 mm	Cylindrical	9.4 kW
HWFE200CO5/2	HWFE200CO5/2	201.3 cm3	25 mm	Cylindrical	18.6 kW
HWS160KB2	HWS160KB2	157.8 cm3	35 mm	Tapered	17.6 kW
HWS160SH	HWS160SH	157.8 cm3	25,32 mm	Spline	17.6 kW
HWS315C2	HWS315C2	314.9 cm3	38,1 mm	Cylindrical	16.4 kW
HWS315R2LL	HWS315R2LL	314.9 cm3	31,78 mm	Tapered	16.4 kW
HWS350KB2	HWS350KB2	347.8 cm3	35 mm	Tapered	16.5 kW
HWS470L2R	HWS470L2R	470.6 cm3	31,75 mm	Spline	10.6 kW
HWS470T2	HWS470T2	470.6 cm3	38,1 mm	Tapered	10.6 kW
HWSR350L2/170/2	Hydraulimoottori 347,8cm³/r wheel	347.8 cm3	31,75 mm	Spline	16.5 kW

Specifications
Dimensions and shipping (select variant)

Brand Name

Hydraspecma

Contamination level max.

-/20/16 - ISO 4406

Drainport

G 1/4

Filtration degree

Oil viscocity recommended

20 - 75

Temperature max.

+82

Temperature min.

-40

Working ports

G 1/2

Product information
Measure sketch (select variant)
