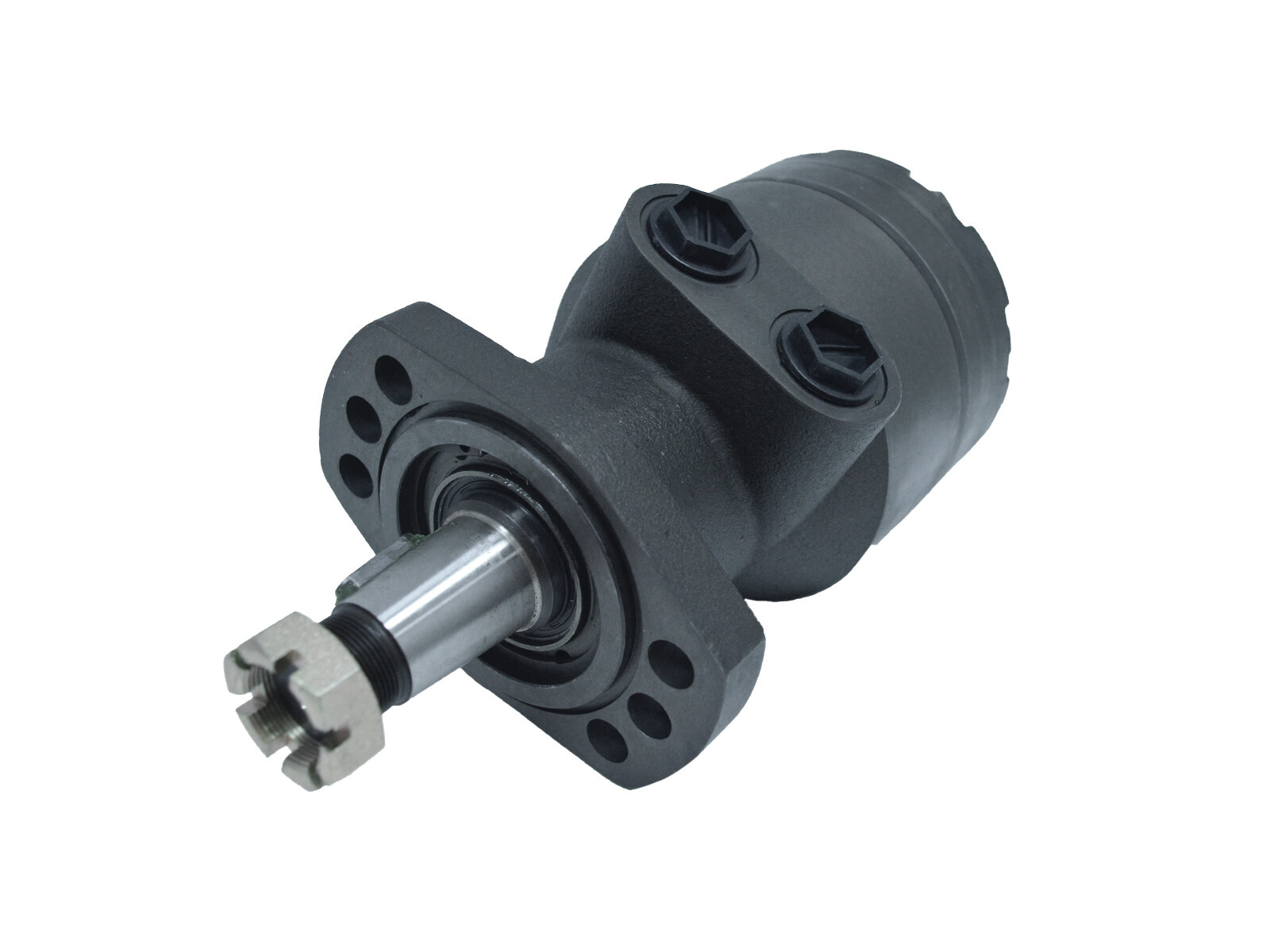

Hydraulic motor HWF470T2LL M+S
Maxj 159r/min 920Nm 10.6kW 1 1/2" kartio Low leakage
Varenummer:
HWF470T2LL
Pakke str.:
1 kpl
Min. bestillingsenhed er:
1 kpl
Brand Name
Hydraspecma
Comment
Low Leakage
Contamination level max.
-/20/16 - ISO 4406
Continuous power max.
10.6 kW
Continuous rotation max.
159 rpm
Displacement
470.6 cm3
Drainport
G 1/4 BSP
Filtration degree
25 my
Holes circle
106.4 mm
Mounting flange
SAE-A6 Magneto
Number of mounting holes
6
Oil viscocity recommended
20 - 75 cSt
Port position
Side
Pressure drop continuous max.
185 bar
Recess
82,5 mm
Shaft cone
1:8
Shaft diameter
38,1 mm
Shaft keyway
7,92 mm
Shaft type
Tapered
Temperature max.
+82 °C
Temperature min.
-40 °C
Torque continuous max.
920 Nm
Working ports
G 1/2 BSP
Package size
1 kpl
Barcode
454913
Gross weight
Kg
Net weight
16,60 Kg
Country of origin
bgr
Intrastat code
84122981
Maxj 159r/min 920Nm 10.6kW 1 1/2" kartio Low leakage
