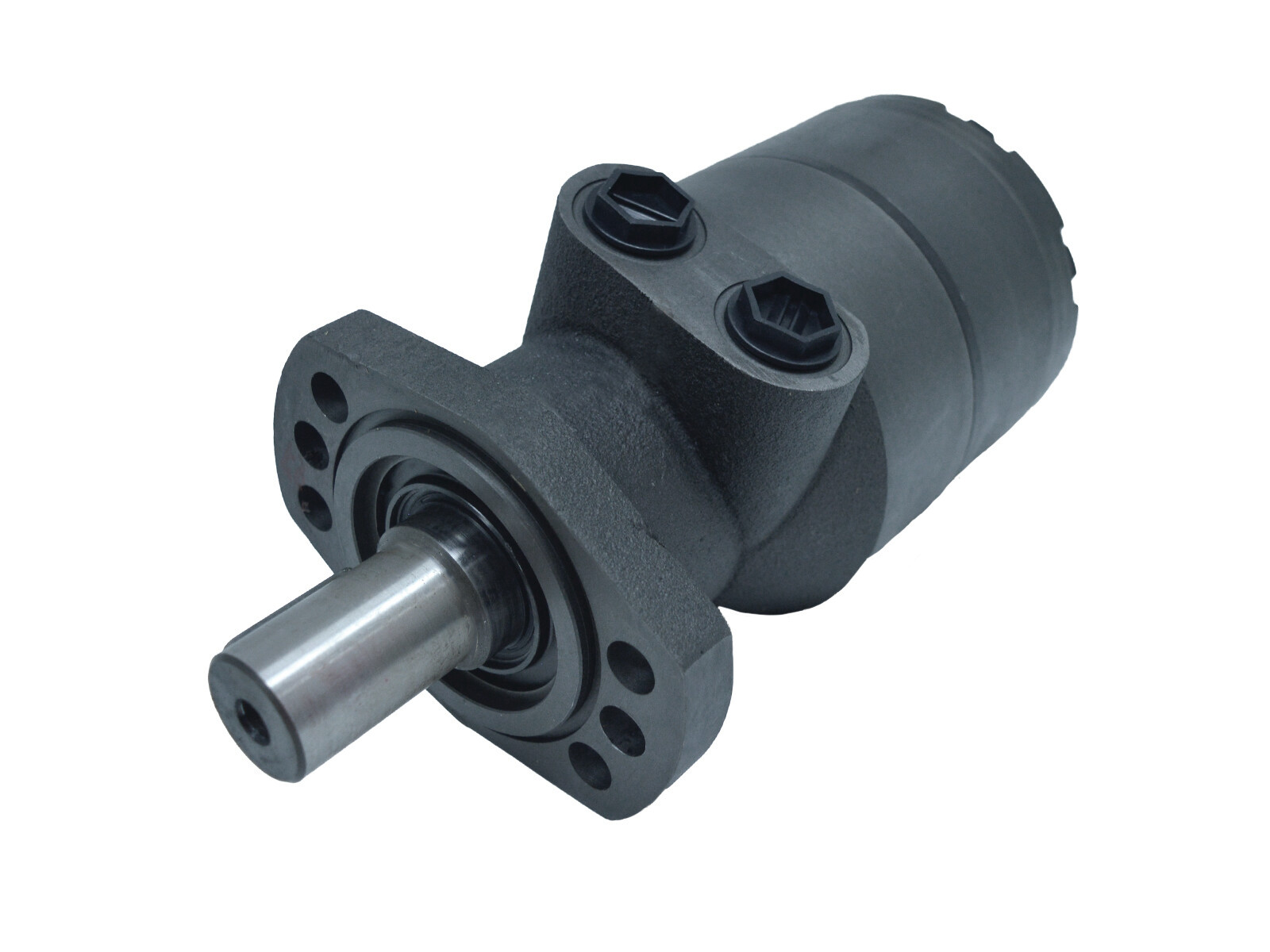

HWF470K2
Maxj 189r/min 960Nm 12.5kW 1 1/4" Lieriö
Artikelnummer:
HWF470K2
Förpackningsstorlek:
1 pcs
Minsta beställningskvantitet:
1 pcs
Brand Name
Hydraspecma
Contamination level max.
-/20/16 - ISO 4406
Continuous power max.
10.6 kW
Continuous rotation max.
159 rpm
Displacement
470.6 cm3
Drainport
G 1/4 BSP
Filtration degree
25 my
Holes circle
106.4 mm
Mounting flange
SAE-A6 Magneto
Number of mounting holes
6
Oil viscocity recommended
20 - 75 cSt
Port position
Side
Pressure drop continuous max.
150 bar
Recess
82,5 mm
Shaft diameter
31,75 mm
Shaft keyway
7,95 mm
Shaft type
Cylindrical
Temperature max.
+82 °C
Temperature min.
-40 °C
Torque continuous max.
920 Nm
Working ports
G 1/2 BSP
Package size
1 pcs
Barcode
398726
Gross weight
16,60 Kg
Net weight
16,60 Kg
Country of origin
BG
Maxj 189r/min 960Nm 12.5kW 1 1/4" Lieriö
