Faster - ISO-A - 250 bar

Liitinrunko 3CFPV ISO A 7241-1

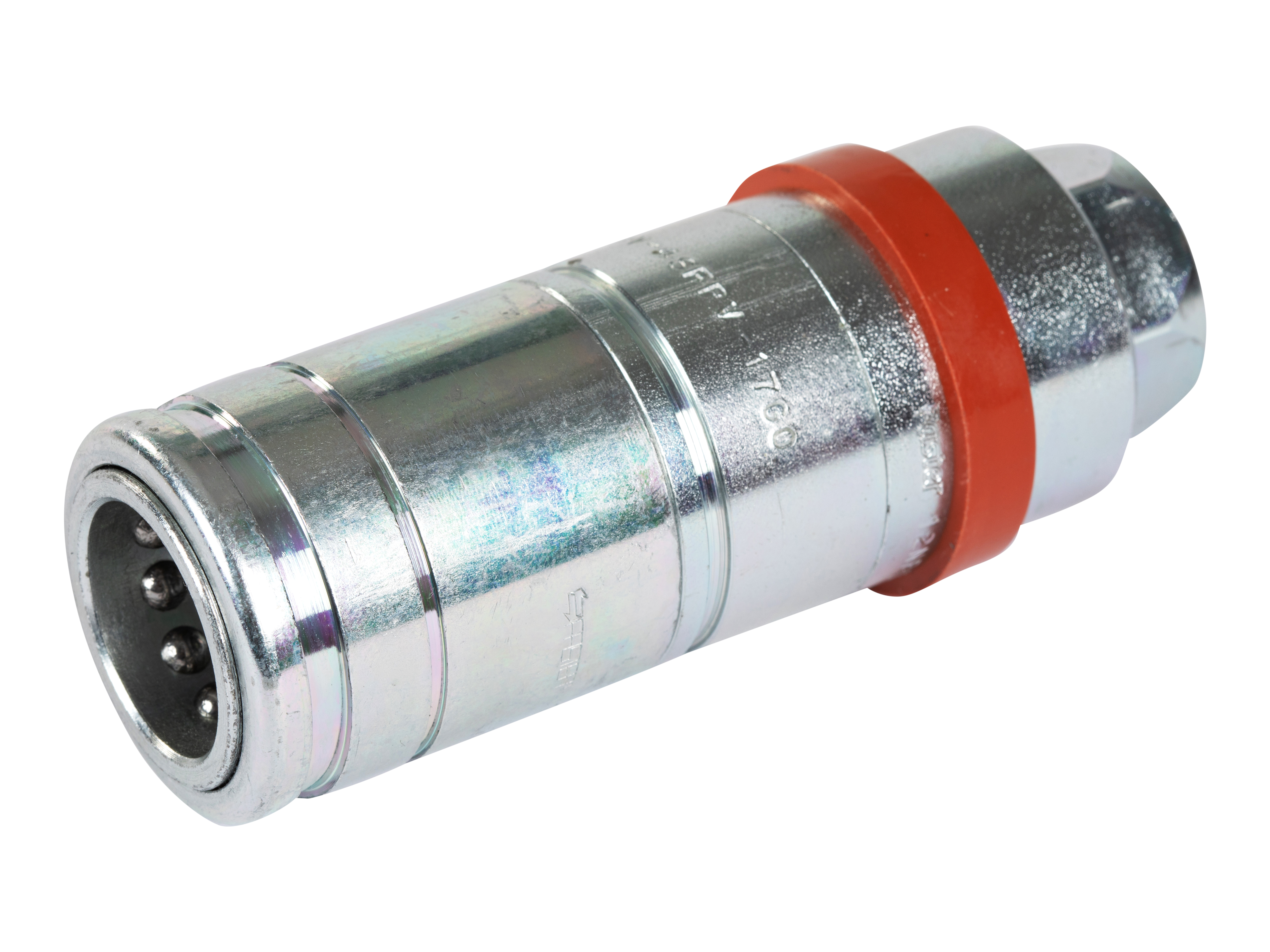

Coupling female push/pull 3CFPV - DN12 - G1/2" female

Coupling female push/pull 3CFPV - DN12 - 1/2"NPT female

Coupling female push/pull 3CFPV - DN12 - 3/4"UNF female

Coupling female push/pull 3CFPV - DN12 - 7/8"UNF bulk

Coupling female push/pull 3CFHF - DN12 - M22x1.5 (15L) bulkh

Coupling female push/pull CFPV - DN20 - G3/4" female

SELECT VARIANT

Partnumber	Description	Thread inner	Thread outer	Thread inner
3CFPV1/78UNFF	Liitinrunko 3CFPV ISO A 7241-1
3CFPV12GASF	Coupling female push/pull 3CFPV - DN12 - G1/2" female	G 1/2 BSP
3CFPV12NPTFT	Coupling female push/pull 3CFPV - DN12 - 1/2"NPT female			1/2 "NPTF
3CFPV14/34UNFF	Coupling female push/pull 3CFPV - DN12 - 3/4"UNF female		3/4-16 JIC
3CFPV14/78UNFF	Coupling female push/pull 3CFPV - DN12 - 7/8"UNF bulk		7/8-14 JIC
3CFPV7/2215F	Coupling female push/pull 3CFHF - DN12 - M22x1.5 (15L) bulkh
CFPV1234GASF	Coupling female push/pull CFPV - DN20 - G3/4" female	G 3/4 BSP

Brand Name

Faster

Corrosion resistance

500 hours salt spray ISO 9227

Flow rate nominal LMin

ISO size

12.5

Material

Steel

Pressure max.

250

Sealing material

NBR

Size

1/2

Standard ISO

ISO 7241-1-A

Surface treatment

Zinc coating (CR III)

Temperature max.

+125

Temperature min.

-25

Type

Poppet
