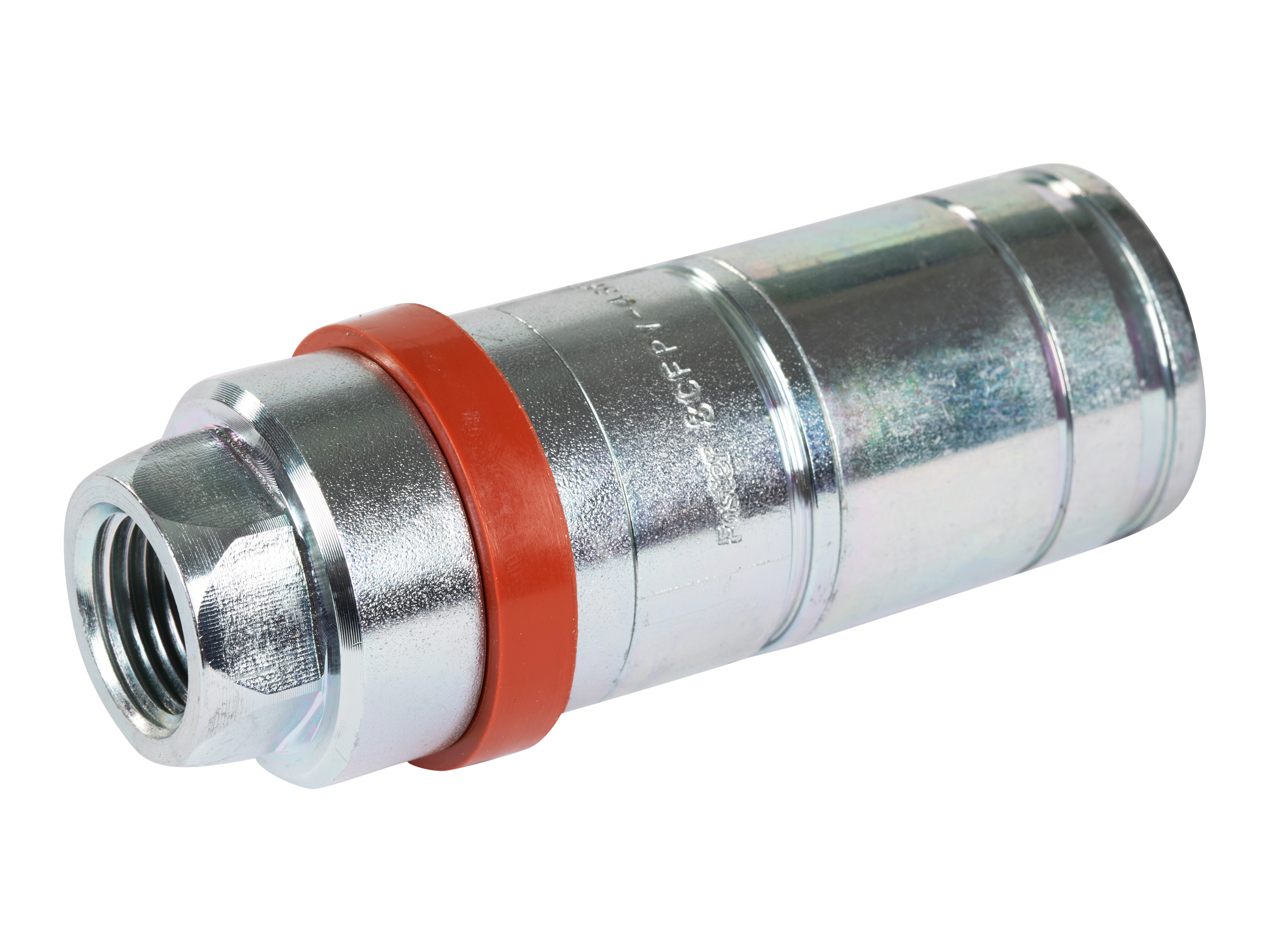

Coupling female push/pull 3CFPV - DN12 - 1/2"NPT female
Push-pull female quick coupling with male thread.
Connectivity: male only under pressure.
Release under pressure: emergency only.
Breakaway feature.
Certainty factors:
Dynamic pressure: 1:2
Static pressure: 1:4
Partnumber:
3CFPV12NPTFT
Package size:
10 kpl
Min. order quantity is:
1 kpl
If you order this item, then
3CFHF12NPTFT
will be ordered instead.
A
1/2 NPT
Brand Name
Faster
Corrosion resistance
500 hours salt spray ISO 9227
D
42 mm
DN
12.5 mm
Flow rate nominal LMin
70 lpm
ISO size
12.5
Material
Steel
Pressure max.
250 bar
Sealing material
NBR
Size
1/2 "
Standard ISO
ISO 7241-1-A
Surface treatment
Zinc coating (CR III)
Temperature max.
+125 °C
Temperature min.
-25 °C
Thread inner
1/2 "NPTF
Type
Poppet
X
27 mm
Package size
10 kpl
Barcode
388223
Gross weight
0,54 Kg
Net weight
0,54 Kg
Country of origin
ITA
Intrastat code
84812010
Push-pull female quick coupling with male thread.
Connectivity: male only under pressure.
Release under pressure: emergency only.
Breakaway feature.
Certainty factors:
Dynamic pressure: 1:2
Static pressure: 1:4
