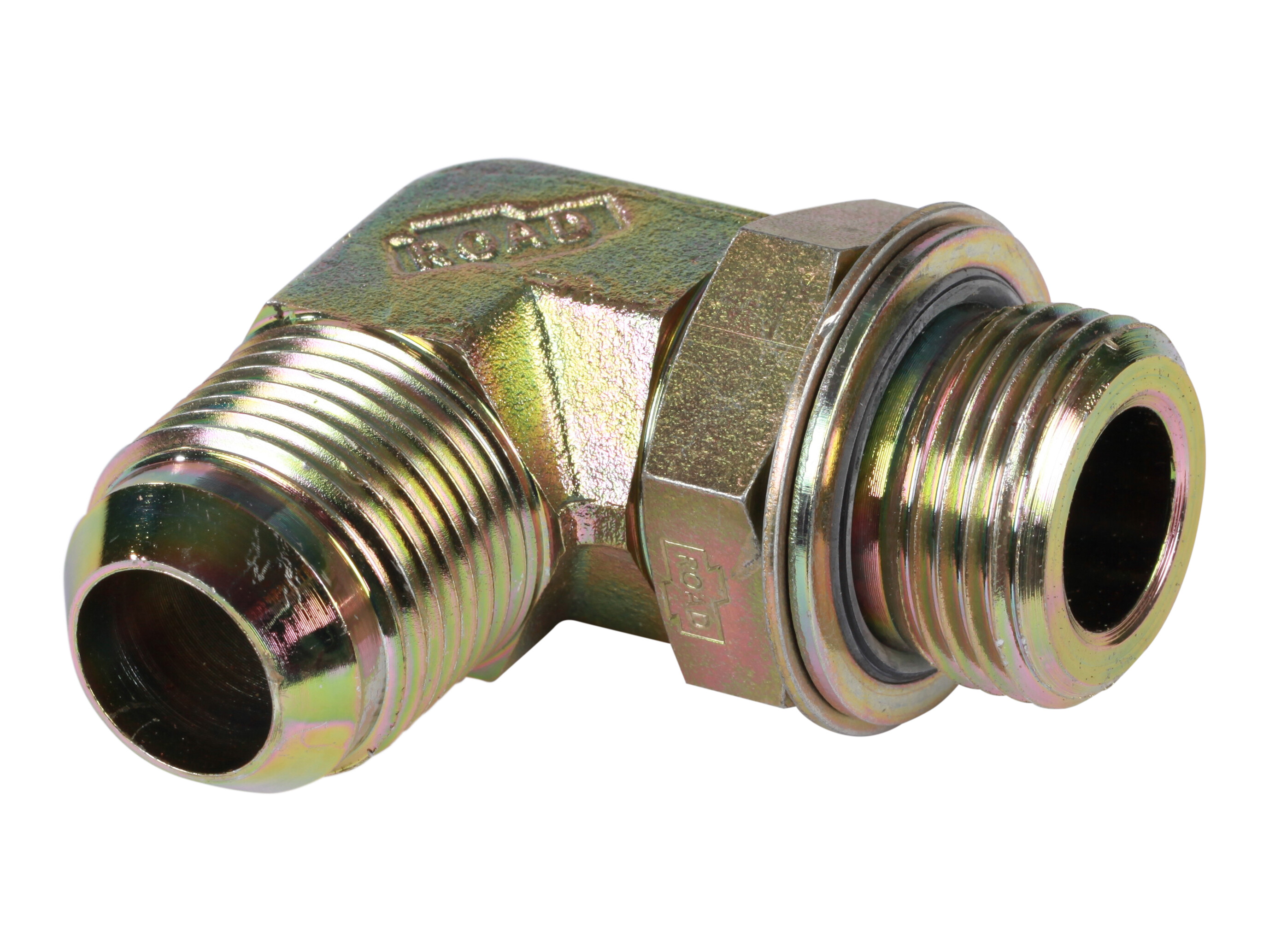

S625-20-27M elbow
M27x2-JIC 1 1/16"
Partnumber:
S625-M27-12
Package size:
5 kpl
Min. order quantity is:
1 kpl
Angle
90 °
B
42 mm
Brand Name
FOR
C
51,5 mm
CH
32 mm
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
Diameter pipe
20 mm
Dimension F metric
M27x2
F
M27x2
J
1.1/16-12 JIC
Material
Steel
Model code
A107040/2027
Pressure max.
250 bar
Sealing material
NBR
Standard ISO
ISO 9974
Surface treatment
Electro zinc plated
T
18-20 mm
Temperature max.
+120 °C
Temperature min.
-20 °C
Thread outer
1.1/16-12 JIC
Thread outer metric
M27x2
Package size
5 kpl
Barcode
407436
Gross weight
0,28 Kg
Net weight
0,28 Kg
Country of origin
ITA
Intrastat code
73071110
M27x2-JIC 1 1/16"
Note: Opening 3D files requires a program that supports the file format
