Gauge fitting w. taper - ø12L x 1/4" BSP female - oring -AIS
Temperature/pressure reduction:
-60°C - +20°C = 0%.
+20°C - +50°C = 5%.
+50°C - +100°C = 11%.
+100°C - +200°C = 20%.
+200°C - +300°C = 29%.
+300°C - +400°C = 33%.
Partnumber:
HMAV-EV-12LR
Package size:
5 kpl
Min. order quantity is:
1 kpl
Angle
0 °
Brand Name
PH Industrie-Hydraulik

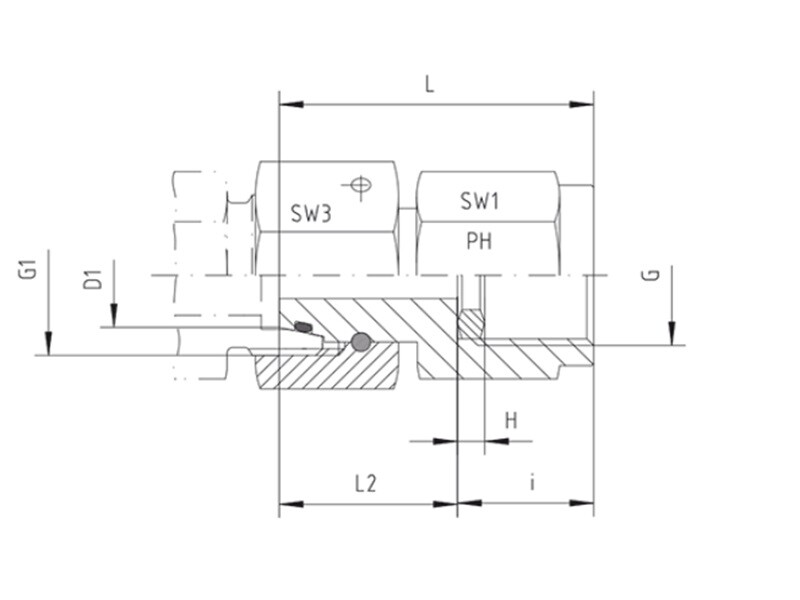

D1
12 mm
Diameter pipe
12 mm
Dimension i
14.5 mm
G
G 1/4 BSP
G1
M18x1,5
H
4,5 mm
L
36 mm
Material
Acid-resistant steel
Material quality
1.4571 / AISI316Ti
Model code
MAVD 12 LR 1/4
PN
315 bar
Pressure max.
315 bar
REACH compliant
Yes
RoHs compliant
Yes
SW1
19 mm
SW3
22 mm
Safety factor
4
Sealing material
FKM/FPM (Viton®)
Series
L
Surface treatment
Uncoated
Temperature max.
+200 °C
Temperature min.
-20 °C
Thread inner
G 1/4 BSP
Thread inner metric
M18x1,5 MM
i
14,5 mm
Package size
5 kpl
Barcode
398061
Gross weight
0,08 Kg
Net weight
0,08 Kg
Country of origin
DEU
Intrastat code
73072910
Temperature/pressure reduction:
-60°C - +20°C = 0%.
+20°C - +50°C = 5%.
+50°C - +100°C = 11%.
+100°C - +200°C = 20%.
+200°C - +300°C = 29%.
+300°C - +400°C = 33%.
