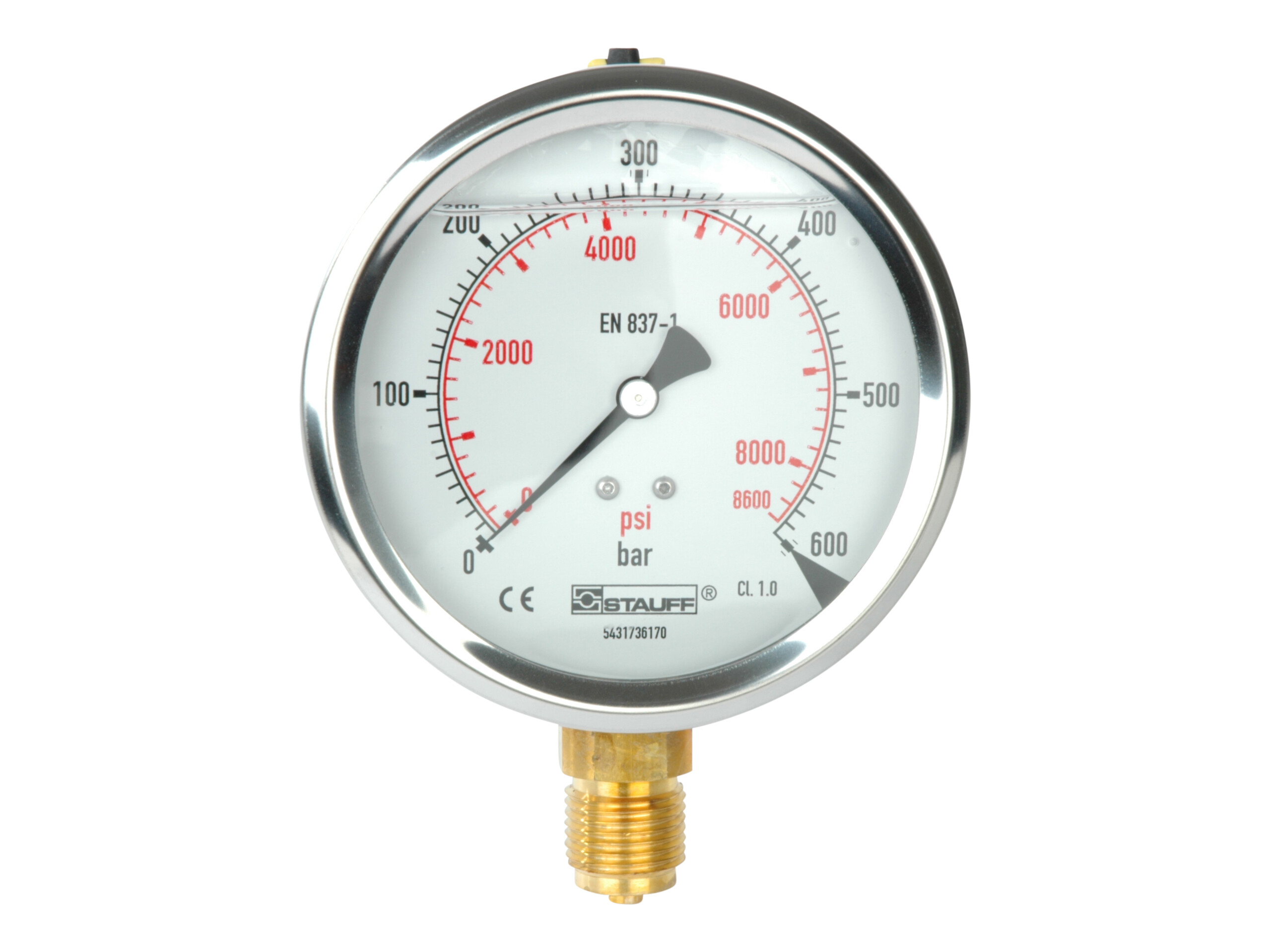

1/2" pressure gauge. Stem mount. Scale 0-600 bar

Application: Measuring pressure in hydraulic oil and gaseous fluids which are non-aggresive to copper alloys.

Glycerine dampened.
Comes standard with dual scale showing both bar and PSI.
U-bolt or flange mounting kit optional.

!!NOTE: Mounting hole diameter: ø67 mm +/-0,3 mm.

Artikelnummer:
SPG100-600SB

Förpackningsstorlek:
0 pcs

Minsta beställningskvantitet:
1 pcs
Skärkantring DKIR G1/2'', MAV/MAVE
Partnumber: DKIR12
Brand Name
Stauff

Diameter
100 mm

Glass type
Acrylic glass

Material
Stainless steel

Material quality
1.4301 / AISI304

Port position
Side

Pressure measurement accuracy
±1,0% FS

Pressure setting max.
600 bar

Pressure setting min.
0 bar

Thread
G 1/2 BSP
Package size
0 pcs

Barcode
5704295678429

Gross weight
0,87 Kg

Net weight
0,87 Kg

Country of origin
DEU

Intrastat code
90262040

Application: Measuring pressure in hydraulic oil and gaseous fluids which are non-aggresive to copper alloys.

Glycerine dampened.
Comes standard with dual scale showing both bar and PSI.
U-bolt or flange mounting kit optional.

!!NOTE: Mounting hole diameter: ø67 mm +/-0,3 mm.
