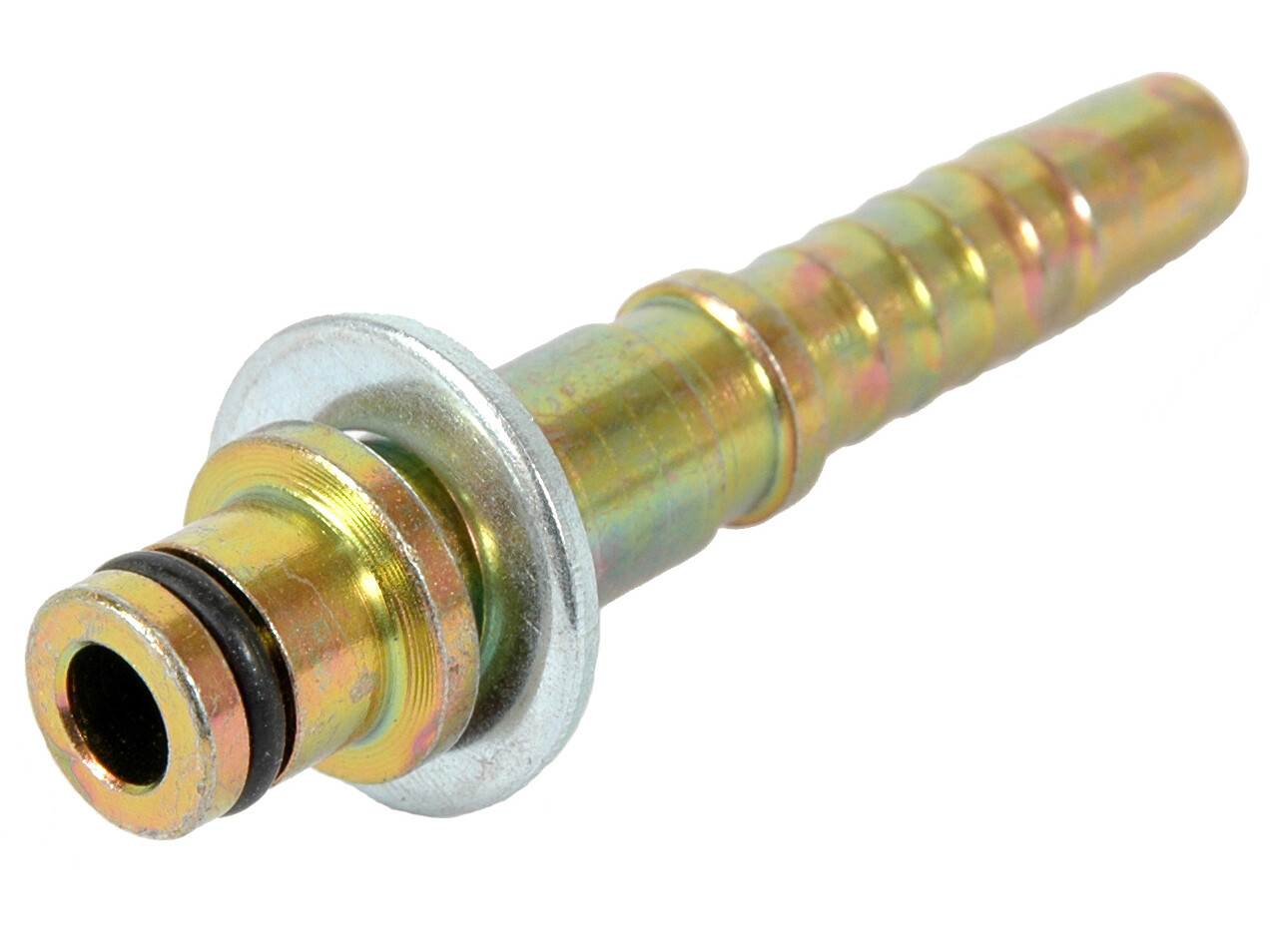

Insert 1/4 - ø10 for Kärhcer pistol (gun)

Insert for handles on high pressure cleaners

Connection: Standpipe with o-ring.

Sealing: O-ring against housing.

Partnumber:

P0410KO

Package size:

0 pcs

Min. order quantity is:

1 pcs

Specifications
Dimensions and shipping

Angle

0 °

Brand Name

I.M.M Hydraulics

Diameter pipe

10 mm

Dimension C

33 mm

Dimension T metric

M22x1,5

Hose coupling type

For separate ferrule

Hose size

1/4 "

Material

Steel

Model code

FN51-04-22

Sealing material

NBR

Surface treatment

Electro-galvanized / White chromatized

Package size

0 pcs

Barcode

5704295689791

Gross weight

0,03 Kg

Net weight

0,03 Kg

Country of origin

ITA

Intrastat code

73269098

Product information

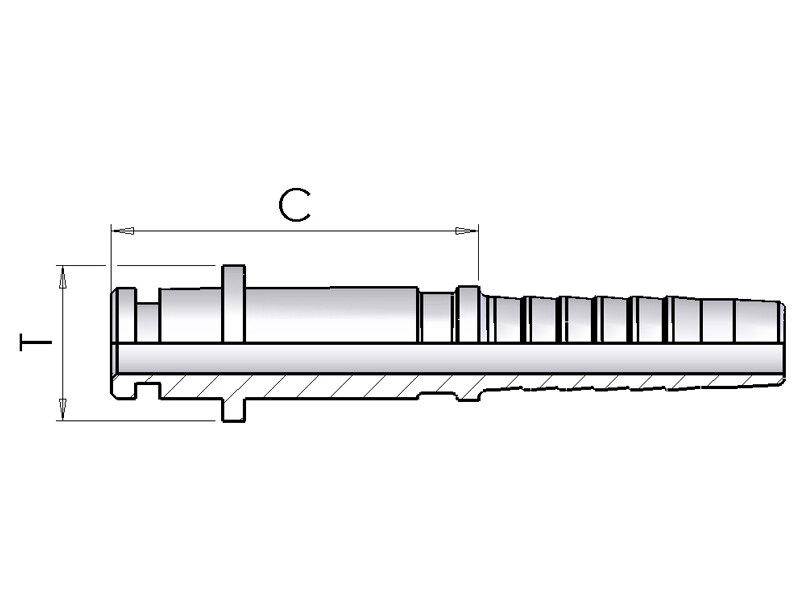

Measure sketch

Insert for handles on high pressure cleaners

Connection: Standpipe with o-ring.

Sealing: O-ring against housing.
