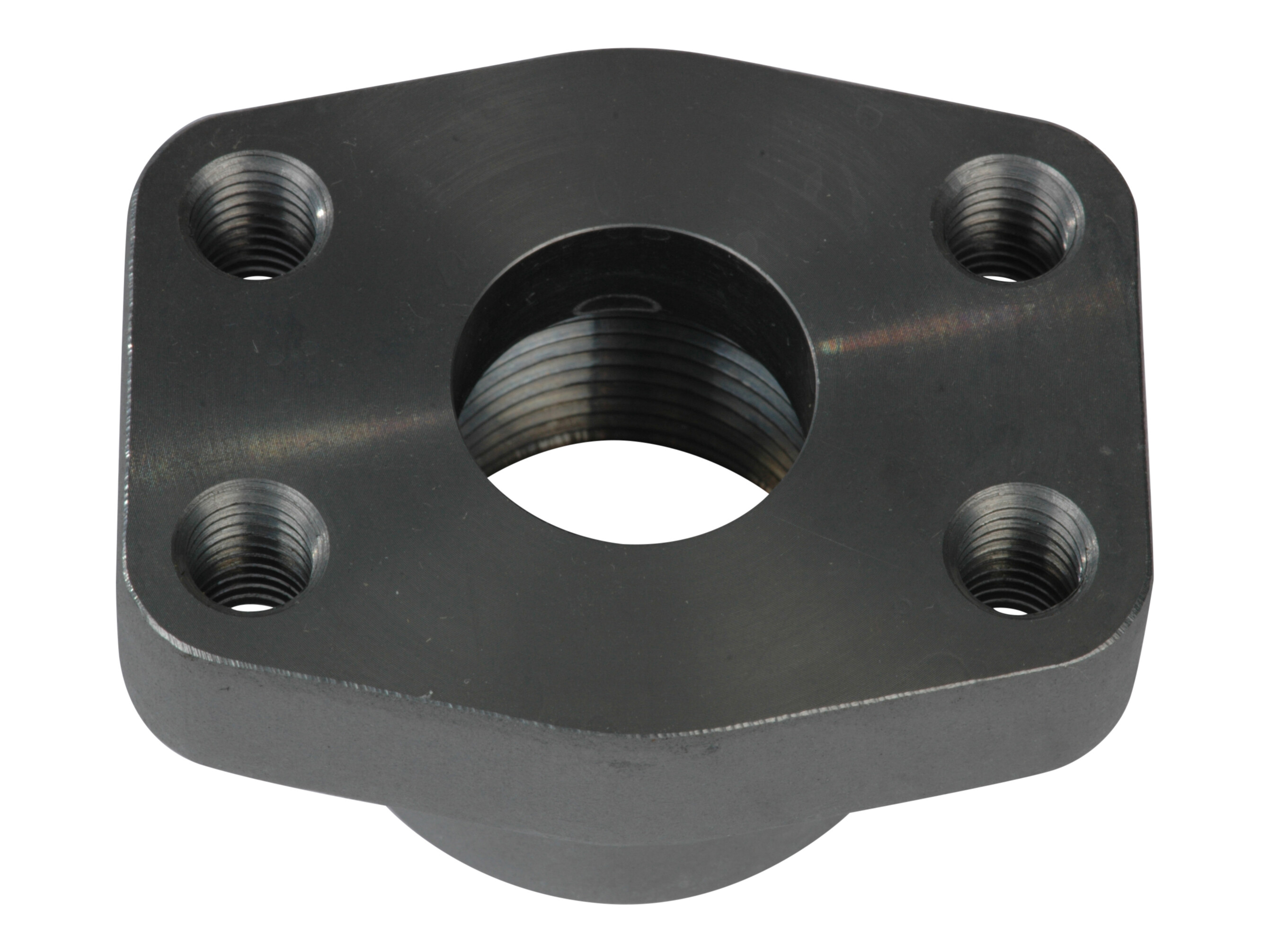

Threaded flange 1" SAE3000 x 1" BSP
Threaded flange 1" SAE3000 x 1" BSP
Partnumber:
GFS102G
Package size:
0 pcs
Min. order quantity is:
1 pcs
Angle
0 °
Brand Name
Havit
Corrosion resistance
480 hours salt spray DIN EN 9227
Diameter flange
44.5 mm
Dimension C
52.4 mm
Dimension E
26.2 mm
Flange
1 "
Flange SAE/DIN
3000 PSI
Material
Steel
O-ring
32.93X3.53 mm
Pressure max.
320 bar
Shore
90
Standard ISO
ISO 6162-1
Standard SAE
SAE J518 Code 61
Surface treatment
Zinc-Nickel plated
Temperature max.
+90 °C
Temperature min.
-40 °C
Thread inner
G 1 BSP
Thread of bolt metric
M10
Package size
0 pcs
Barcode
5704295320908
Gross weight
0,46 Kg
Net weight
0,46 Kg
Country of origin
DEU
Intrastat code
73079100
