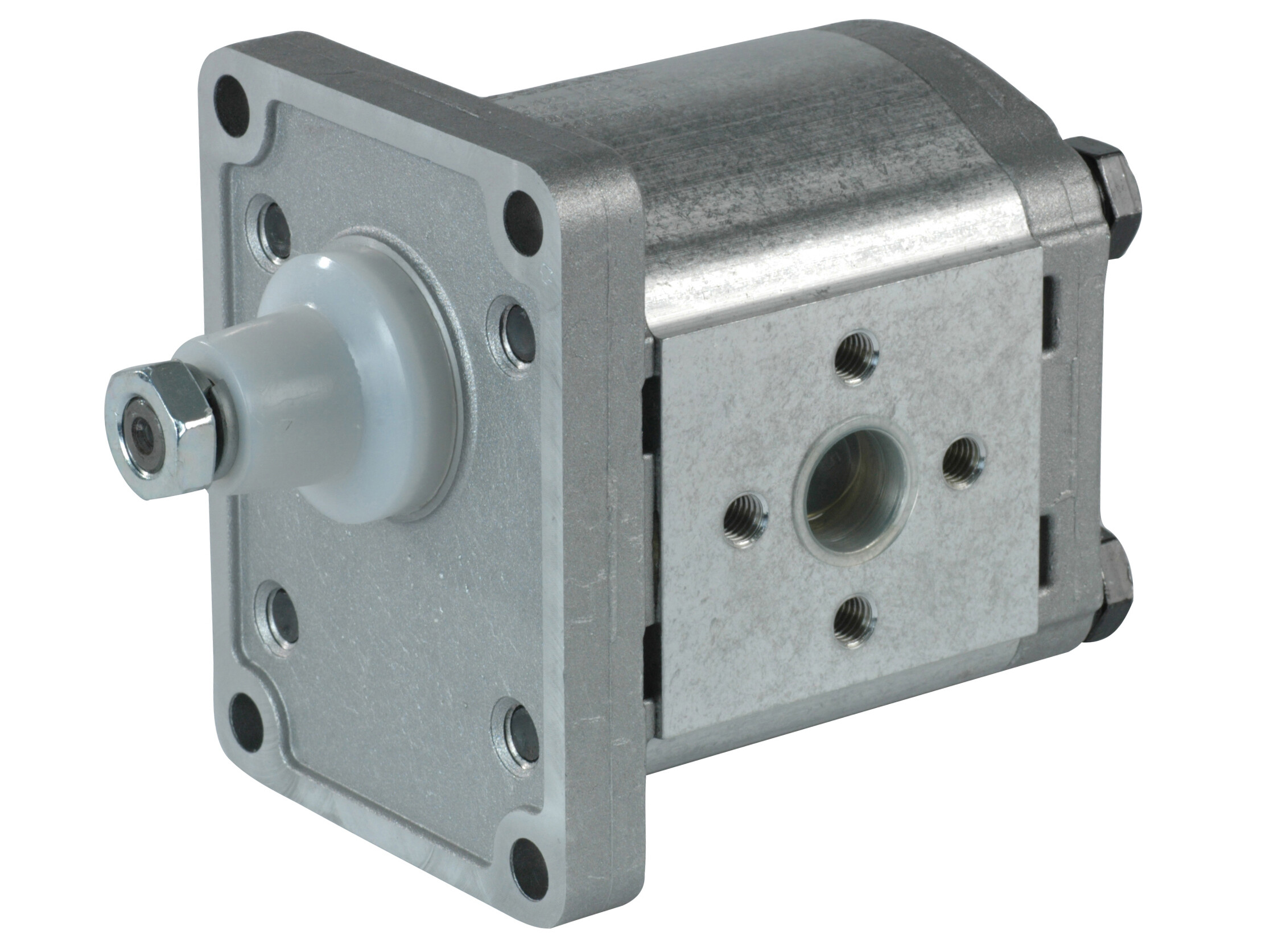

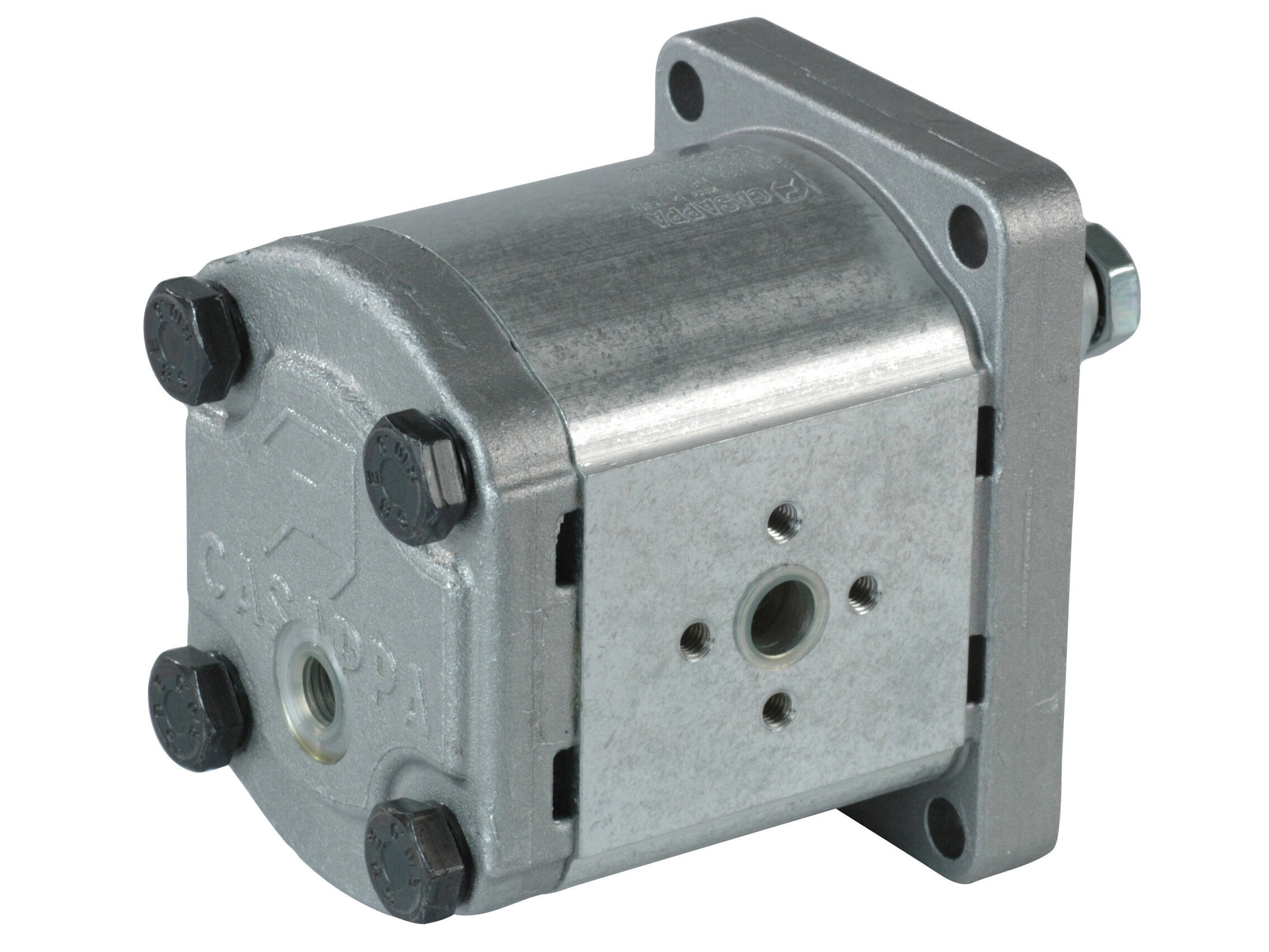

PLM20.20R0-82E2-LEA/EB-N-EL-DH Polaris motor, Casappa
Casappa Polaris, series 2 gear motor..
Housing: Aluminium..
Gear wheels with slide bearings and two aluminium end plates..
Front- and rear cover: Aluminium.
Connection flanges must be ordered separately.
Partnumber:
01999812
Package size:
0 pcs
Min. order quantity is:
1 pcs
Brand Name
Casappa
Contamination level max.
19/17/14 - ISO 4406
Displacement
21.14 cm3
Model code
PLM20.20R0-82E2-LEA/EB-N-EL-DH
Mounting flange
EU37 - 96x72
Number of mounting holes
4
Oil viscocity recommended
12 - 100 cSt
Port inlet
EU30
Port outlet
EU40
Pressure continous max.
200 bar
Pressure intermittent max.
220 bar
Pressure peak max.
240 bar
Rotation direction
Reversible (CW/CCW)
Rotational speed max.
3000 rpm
Rotational speed min.
500 rpm
Shaft cone
1:8
Shaft keyway
3,2 mm
Shaft type
Tapered
Package size
0 pcs
Barcode
5704334439264
Gross weight
3,00 Kg
Net weight
3,00 Kg
Country of origin
ITA
Intrastat code
84122981
Casappa Polaris, series 2 gear motor..
Housing: Aluminium..
Gear wheels with slide bearings and two aluminium end plates..
Front- and rear cover: Aluminium.
Connection flanges must be ordered separately.
