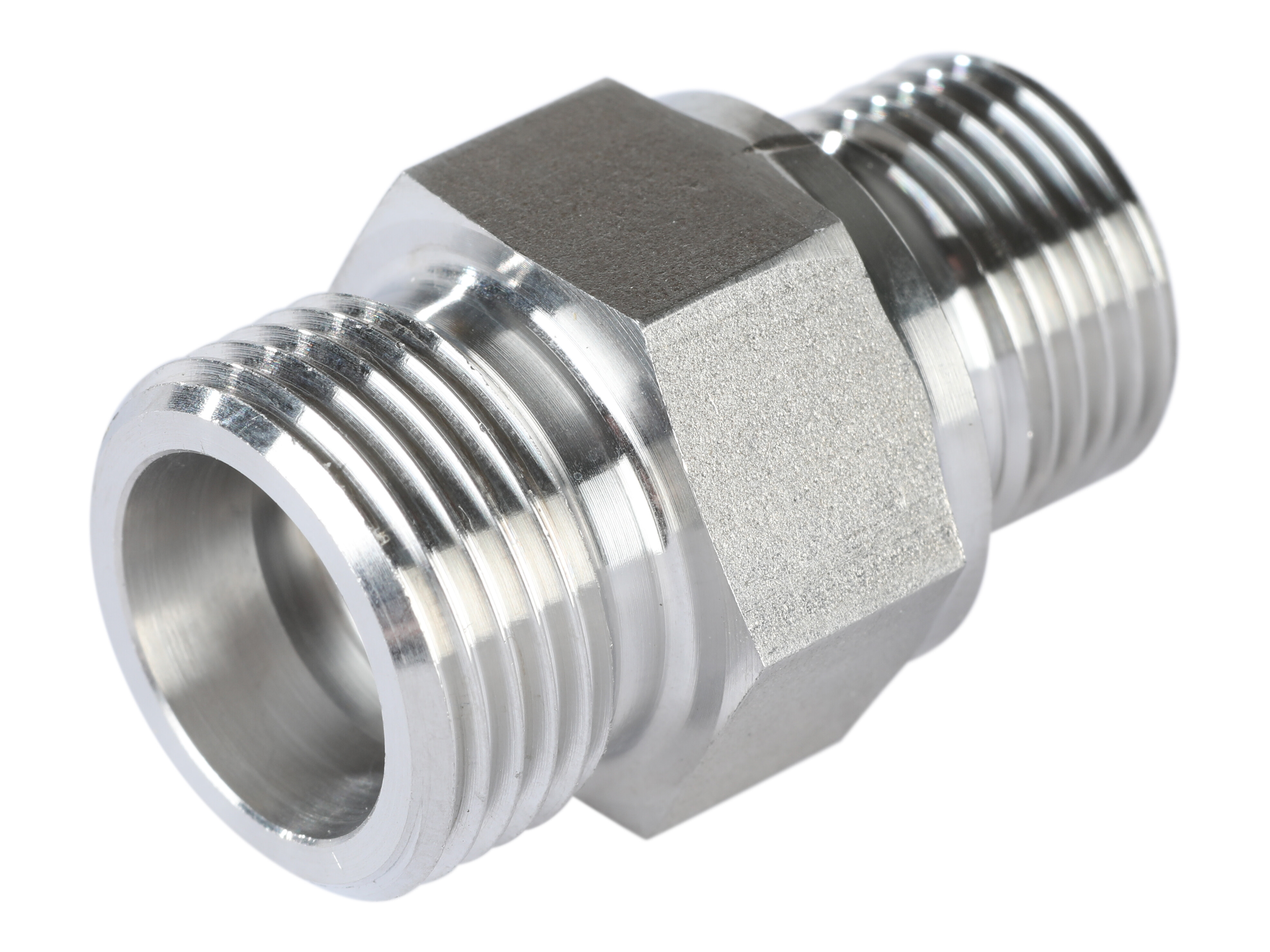

Adapter 06S, G1/8'', Syrafast
Temperatur/tryckreduktion:
-60°C - +20°C = 0%.
+20°C - +50°C = 4,5%.
+50°C - +100°C = 11%.
+100°C - +200°C = 20%.
+200°C - +300°C = 29%.
+300°C - +400°C = 33%.
Varenummer:
XGE06SR18-SY
Pakke str.:
200 st
Min. bestillingsenhed er:
1 st
Angle
0 °
Brand Name
Volz
Diameter pipe
6 mm
Dimension D1
6 mm
Dimension D2
4 mm
Dimension L1
35.5 mm
Dimension L2
27.5 mm
Dimension L3
12.5 mm
Dimension S1
17 mm
Dimension S2
17 mm
Dimension T2
20
Dimension i
8 mm
Material
Rostfritt stål
Material quality
1.4571 / AISI316Ti
Model code
XGEV 06 SR 1/8
Pressure max.
630 bar
REACH compliant
Ja
RoHs compliant
Ja
Safety factor
4
Series
S
Temperature max.
+400 °C
Temperature min.
-60 °C
Thread T1
M14x1,5
Thread T2
G 1/8 BSP
Thread outer
G 1/8 BSP
Thread outer metric
M14x1,5
Förpackningsstorlek
200 st
Streckkod
343801
Bruttovikt
Kg
Nettovikt
Kg
Ursprungsland
deu
Temperatur/tryckreduktion:
-60°C - +20°C = 0%.
+20°C - +50°C = 4,5%.
+50°C - +100°C = 11%.
+100°C - +200°C = 20%.
+200°C - +300°C = 29%.
+300°C - +400°C = 33%.
