    Adapter Rak, Utv-JIC, Utv-M

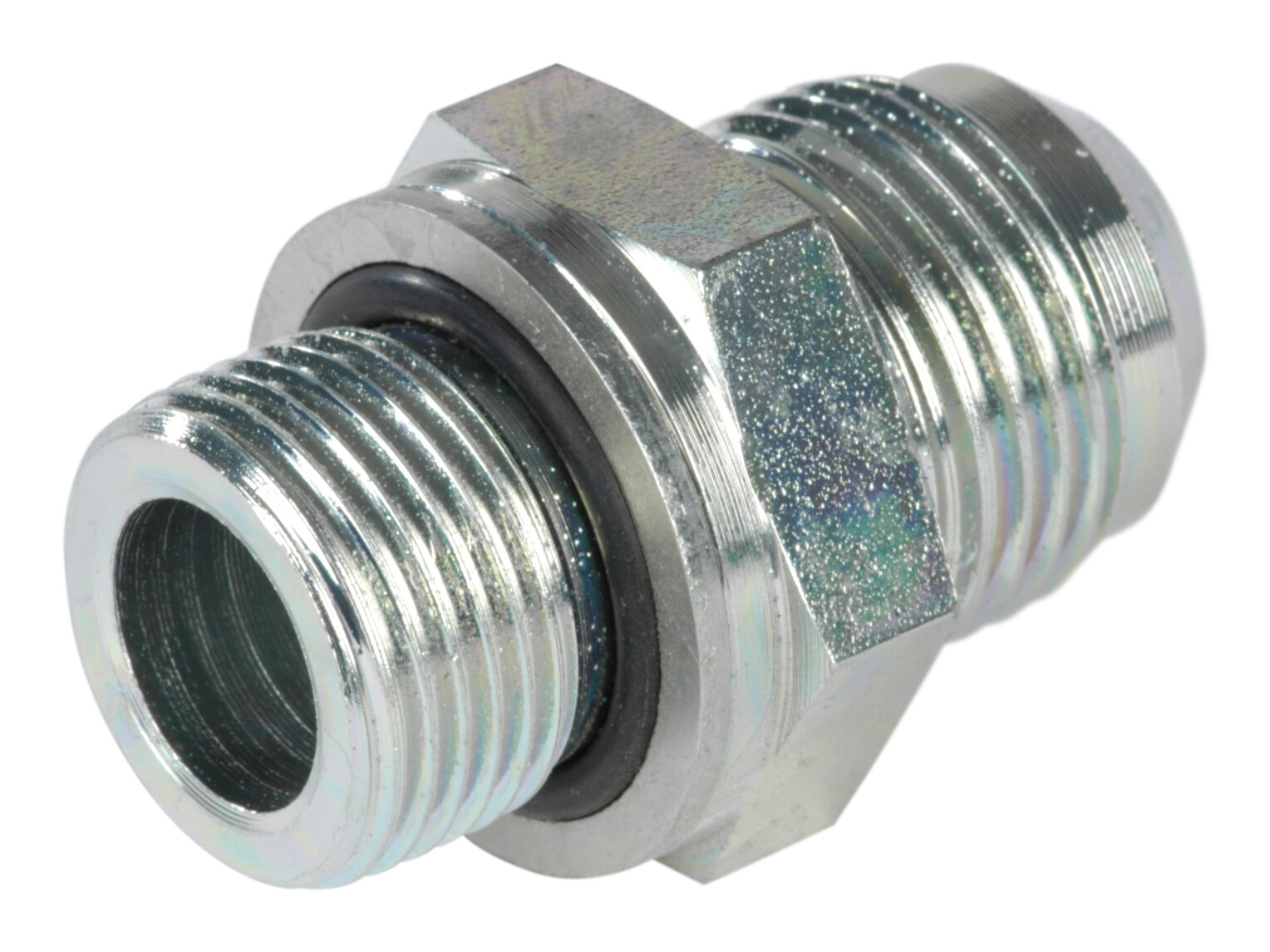

    ADAPTER RAK UTV-JIC UTV-M

    Partnumber:
    JGEM-10-20
    Package size:
    1 st
    Min. order quantity is:
    1 st
    Stödhylsa JIC, Rör 16MM
    Partnumber: JD-16
    Mutter, UNF-7/8''-14
    Partnumber: JM-10-16
    Diameter rör
    16 mm
    Dimension A
    43 mm
    Dimension B
    19.5 mm
    Dimension CH
    27 mm
    Dimension D
    12.5 mm
    Dimension F metrisk
    M20x1,5
    Dimension J
    7/8-14 JIC
    Dimension T
    16 mm
    Gänga utv.
    7/8-14 JIC
    Gänga utv. metrisk
    M20x1,5
    Märke namn
    FOR
    Rostbeständighet
    1400 hours salt spray DIN EN ISO 9227
    Tillverkningsmaterial
    Stål
    Tryck max.
    350 bar
    Vinkel
    0 °
    Ytskiktbehandling
    El-förzinkad / vitkromaterad
    Package size
    1 st
    Barcode
    194211
    Gross weight
    0,08 Kg
    Net weight
    0,08 Kg
    Country of origin
    ITA
    Intrastat code
    73071110

    ADAPTER RAK UTV-JIC UTV-M

    3D-file

    Note: Opening 3D files requires a program that supports the file format
