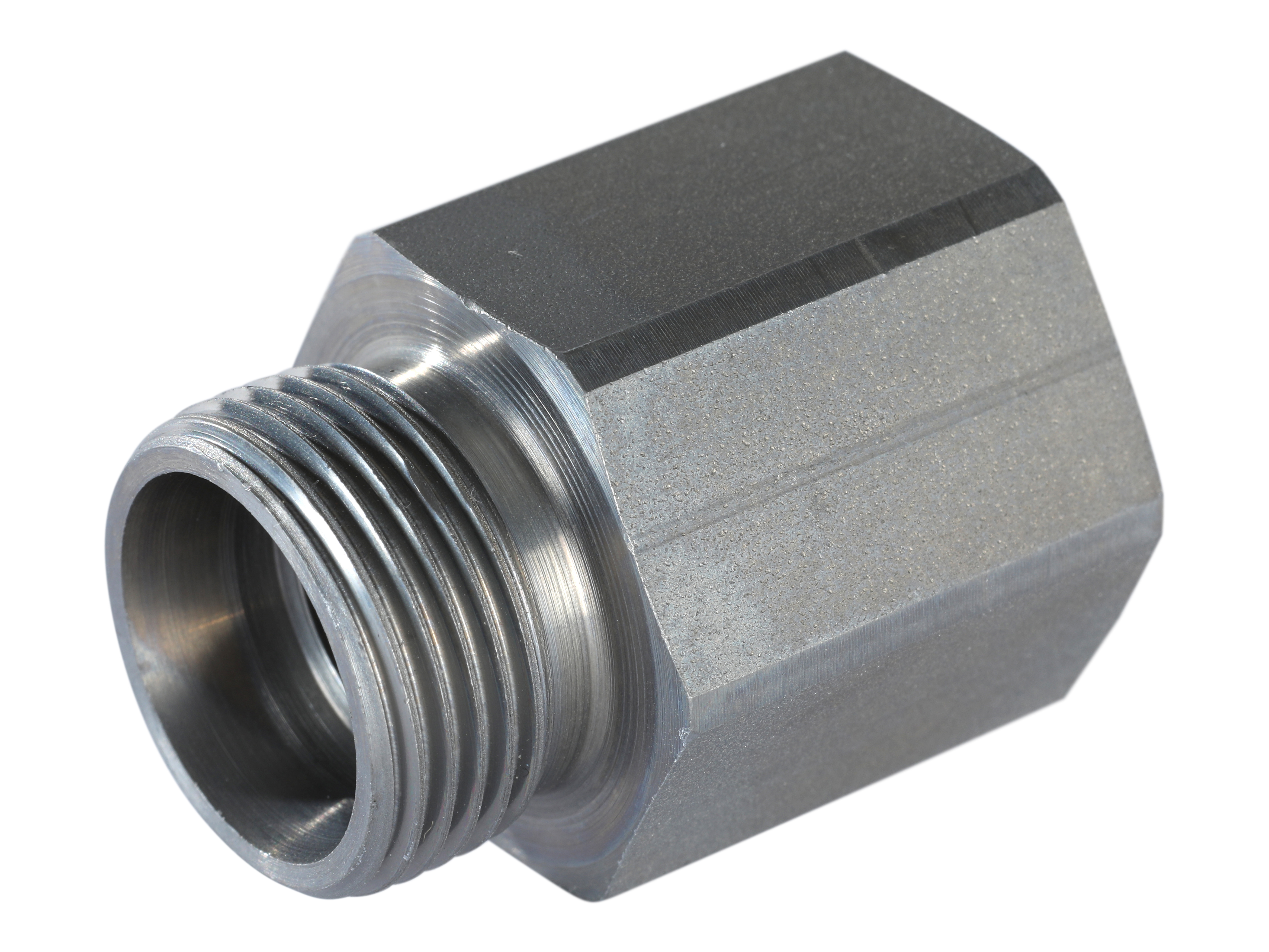

Straight fitting 0° - S-series - DIN male x MM female - AI-SMX / XGAI-SM

Straight fitting 0° - S-series - DIN male x MM female - AI-SMX / XGAI-SM

Välj variant
VÄLJ VARIANT
VÄLJ VARIANT
Artikelnummer Beskrivning Diameter pipe Thread outer metric Pressure max. Thread inner metric
XGAI06SM Adapter 06S, M12x1.5 6 mm M14x1,5 630 bar M12x1,5
XGAI08SM Stud fitting female - ø8S x M14x1.5 female 8 mm M14x1,5 630 bar M14x1,5
XGAI10SM Stud fitting female - ø10S x M16x1.5 female 10 mm M16x1,5 630 bar M16x1,5
XGAI12SM Stud fitting female - ø12S x M18x1.5 female 12 mm M20x1,5 630 bar M18x1,5
XGAI14SM Stud fitting female - ø14S x M20x1.5 female 14 mm M22x1,5 630 bar M20x1,5
XGAI16SM Stud fitting female - ø16S x M22x1.5 female 16 mm M24x1,5 630 bar M22x1,5
XGAI20SM Stud fitting female - ø20S x M27x2.0 female 20 mm M30x2 160 bar M27x2
XGAI20SM22 Adapter 20S, M22X1.5 20 mm M30x2 400 bar M22x1,5
XGAI25SM Adapter 25S, M33x2 25 mm M36x2 400 bar M33x2
XGAI30SM Adapter 30S, M42x2 30 mm M45x2 400 bar M42x2
XGAI38SM Adapter 38S, M48x2 38 mm M52x2 400 bar M48x2
Angle
0
Brand Name
Stauff
Corrosion resistance
1200 hours salt spray DIN EN ISO 9227
Material
Steel
REACH compliant
Yes
RoHs compliant
Yes
Series
S
Surface treatment
Zinc-Nickel plated
Temperature max.
+120
Temperature min.
-40
