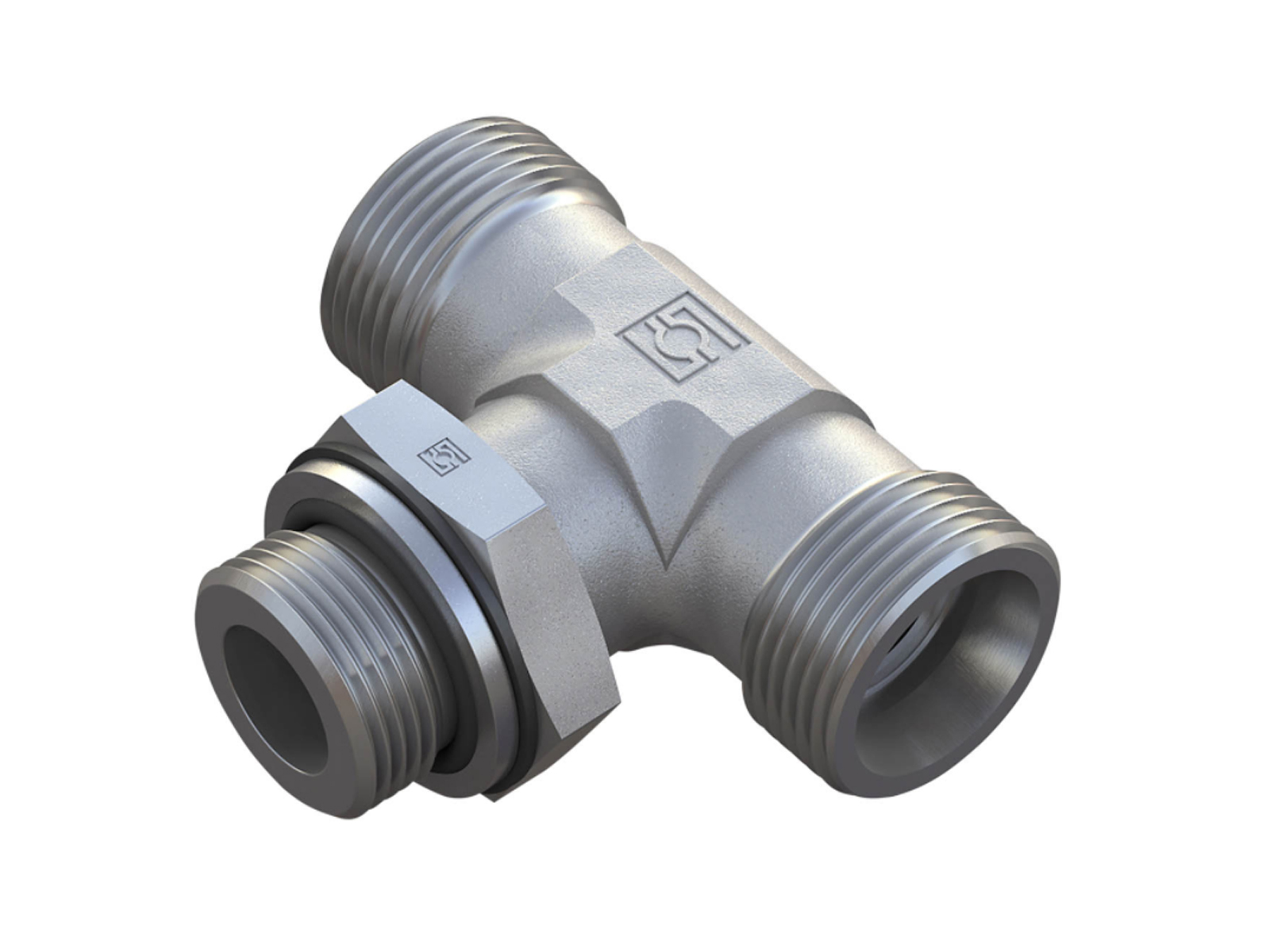

T-fitting adjustable - L-series - Male x MM male counter nut x Male - XTEE- LM

T-fitting adjustable - L-series - Male x MM male counter nut x Male - XTEE- LM

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Diameter pipe Pressure max. Thread outer metric
XTEE06LM Adapter T 06L, Utv-M 10x1, Ställbar 6 mm 315 bar M12x1,5
XTEE08LM Adapter T 08L, Utv-M 12x1.5, Ställbar 8 mm 315 bar M14x1,5
XTEE10LM Adapter T 10L, Utv-M 14x1.5, Ställbar 10 mm 315 bar M16x1,5
XTEE12LM Adapter T 12L, Utv-M 16x1.5, Ställbar 12 mm 315 bar M18x1,5
XTEE15LM Adapter T 12L, Utv-M 18x1.5, Ställbar 15 mm 315 bar M22x1,5
XTEE18LM Adapter T 18L, Utv-M 22x1.5, Ställbar 18 mm 315 bar M26x1,5
XTEE22LM Adapter T 22L, Utv-M 27x2, Ställbar 22 mm 160 bar M30x2
XTEE28LM Adapter T 28L, Utv-M 33x2, Ställbar 28 mm 160 bar M36x2
XTEE35LM Adapter T 35L, Utv-M 42x2, Ställbar 35 mm 160 bar M45x2
XTEE42LM Adapter T 42L, Utv-M 48x2, Ställbar 42 mm 160 bar M52x2
Brand Name
Stauff
Corrosion resistance
1200 hours salt spray DIN EN ISO 9227
Material
Steel
Series
L
Surface treatment
Zinc-Nickel plated
Temperature max.
+100
Temperature min.
-35
Type
Forged
