Dual check valve, Oleodinamica Marchesini OM - VBPDE

Dual check valve, Oleodinamica Marchesini OM - VBPDE

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Thread Flow rate nominal LMin Pilot ratio Pressure max.

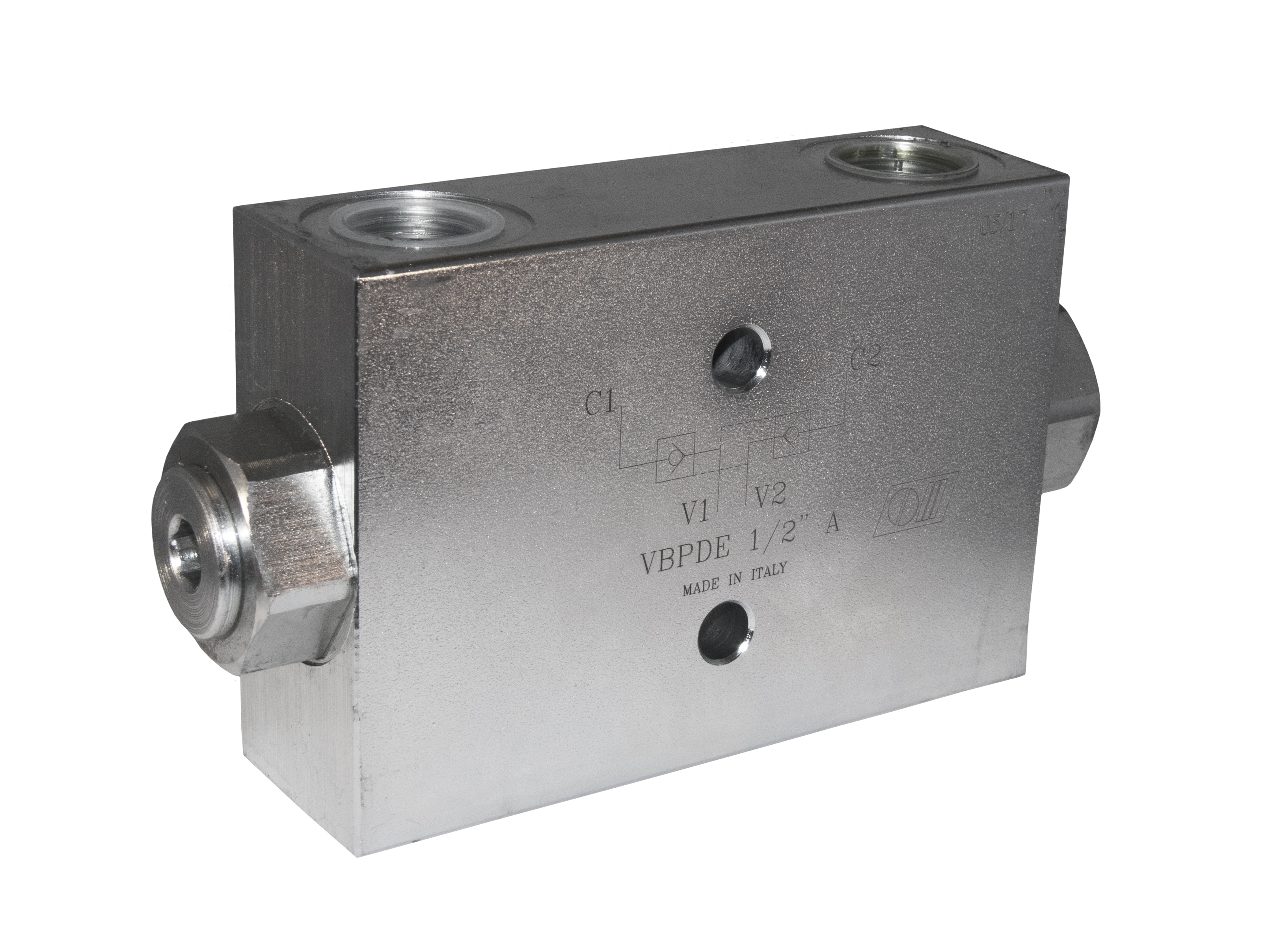

VBPDE-12A Pilotstyrd Backventil OM Dubbel G 1/2 BSP 55 lpm 1:4,5 350 bar
VBPDE-12L 1/2" Double pilot operated check valve G 1/2 BSP 50 lpm 1:5 350 bar
VBPDE-14L 1/4" Double pilot operated check valve G 1/4 BSP 20 lpm 1:5,5 350 bar
VBPDE-38A Pilotstyrd Backventil OM Dubbel G 3/8 BSP 30 lpm 5,5:1 350 bar

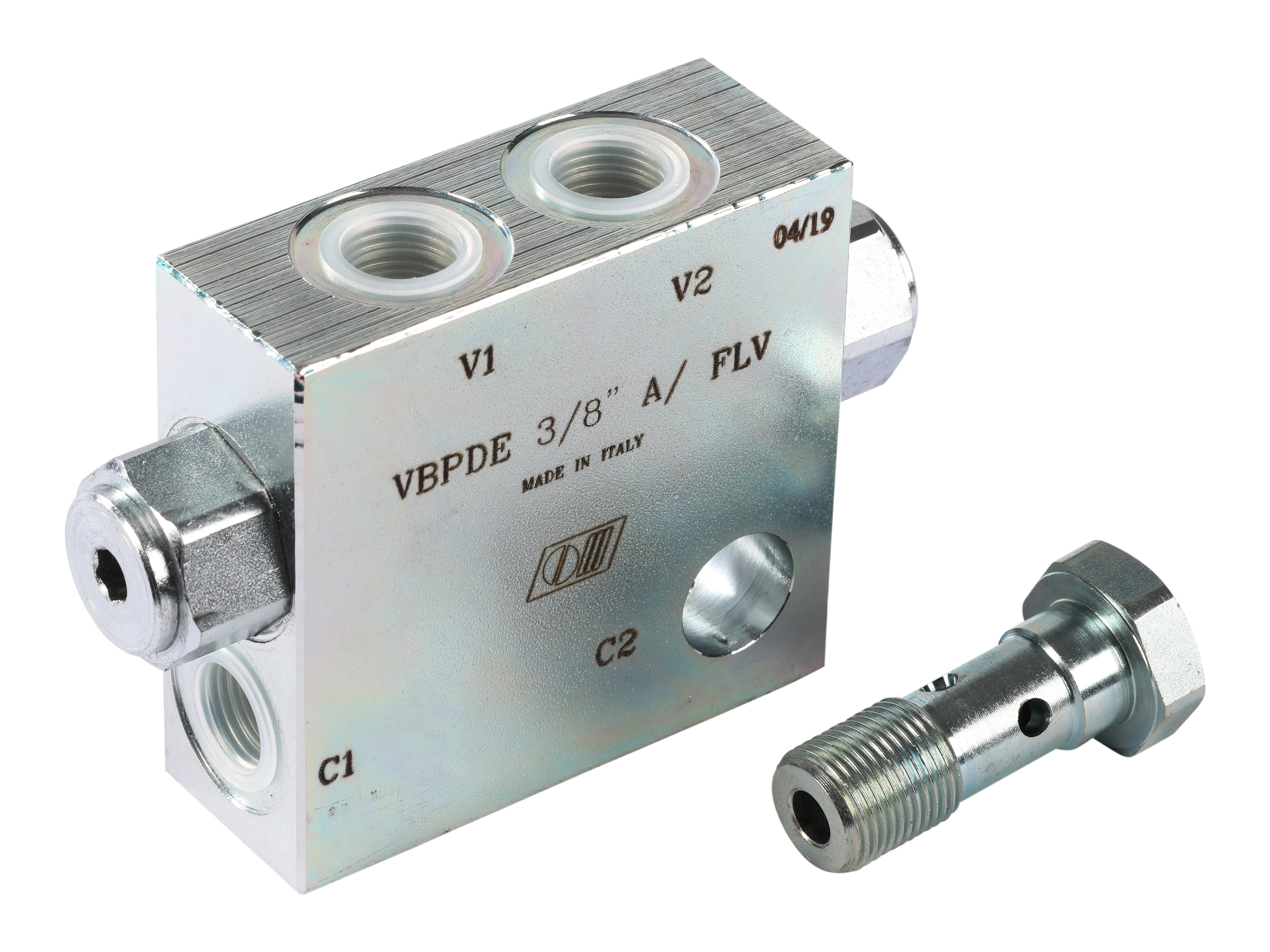

VBPDE-38FLV Pilotstyrd Backventil OM dubbel G3/8 G 3/8 BSP 30 lpm 5,5:1 350 bar
VBPDE-38L 3/8" Double pilot operated check valve G 3/8 BSP 35 lpm 1:5,5 350 bar
VBPDE-38L-2CEXC Pilotstyrd backventil OM Dubbel G3/8 G 3/8 BSP 30 lpm 1:5,5 350 bar
VBPDE1/4L-2CEXC-10L Kaksoislukkoventtiili R1/4"-10L 20 lpm 1:5,5 350 bar
Material
Steel
Pressure max.
350
Sealing material
NBR
Surface treatment
Zinc-plated
Temperature max.
+100
Temperature min.
-20
Type
Double
