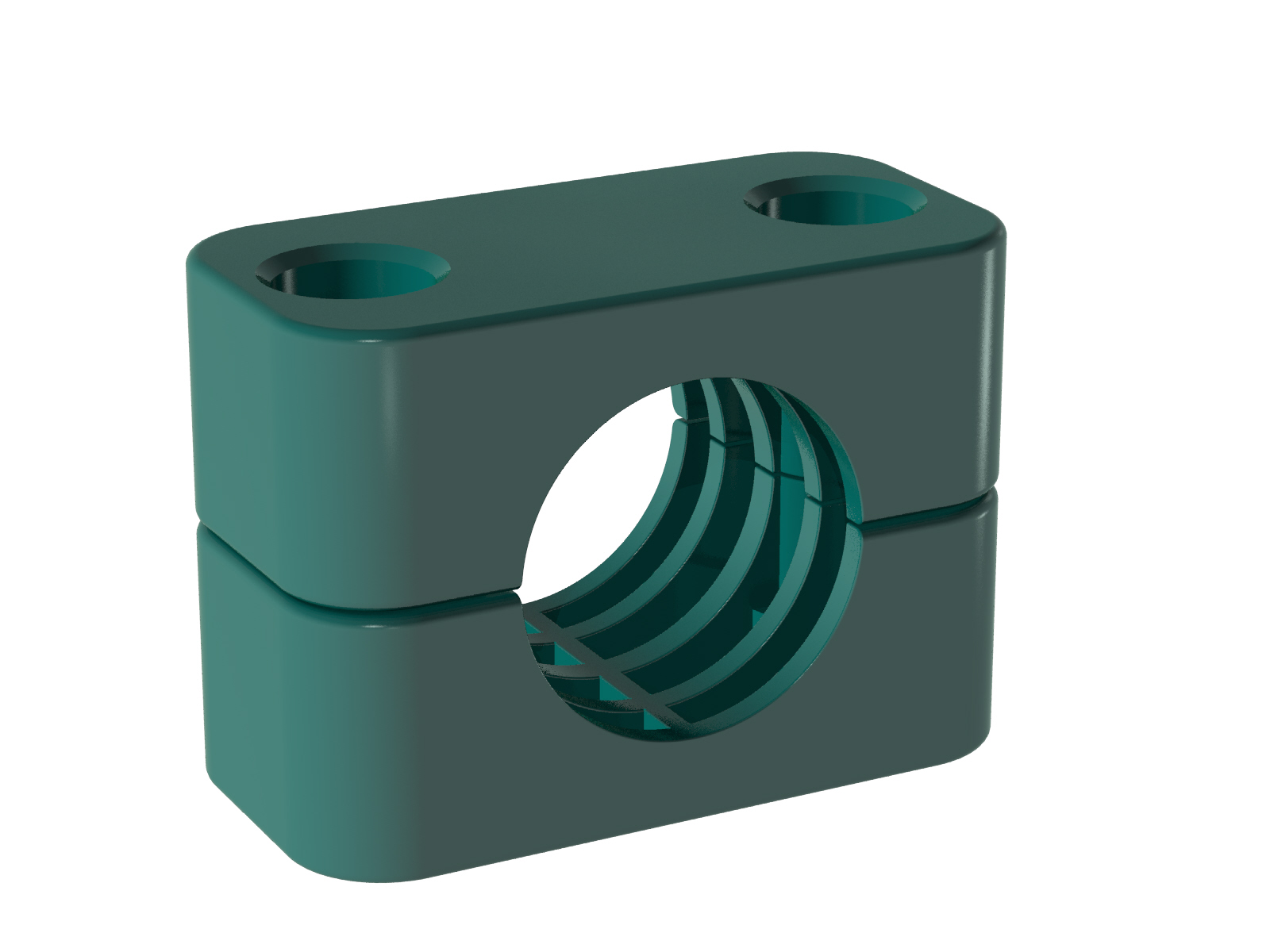

Pipe clamp body, standard series, single, Polypropylene, green, profiled - SLK-PPG

SELECT VARIANT

Partnumber	Description	Diameter rör	DIN storlek	Märke namn	Tillverkningsmaterial
SLK1064APPG	Clamp ø6.4 - Green PP - DIN 1	6,4 mm	1	Stauff	Polypropylene
SLK1064PPG	Clamp body standard serie	6.4 mm	0	Stauff	Polypropylene
SLK106APPG	Clamp ø6 - Green PP - DIN 1	6 mm	1	Stauff	Polypropylene
SLK106PPG	Clamp ø6 - Green PP - DIN 0	6 mm	0	Stauff	Polypropylene
SLK108APPG	Clamp ø8 - Green PP - DIN 1	8 mm	1	Stauff	Polypropylene
SLK108PPG	Clamp ø8 - Green PP - DIN 0	8 mm	0	Stauff	Polypropylene
SLK1095APPG	Clamp ø9.5 - Green PP - DIN 1	9,5 mm	0	Stauff	Polypropylene
SLK110APPG	Clamp ø10 - Green PP - DIN 1	10 mm	1	Stauff	Polypropylene
SLK110PPG	Clamp ø10 - Green PP - DIN 0	10 mm	0	Stauff	Polypropylene
SLK112APPG	Clamp ø12 - Green PP - DIN 1	12 mm	1	Stauff	Polypropylene
SLK112PPG	Clamp ø12 - Green PP - DIN 0	12 mm	0	Stauff	Polypropylene
SLK2127PPG	Clamp ø12.7 - Green PP - DIN 2	12,7 mm	2	Stauff	Polypropylene
SLK214PPG	Clamp ø14 - Green PP - DIN 2	14 mm	2	Stauff	Polypropylene
SLK215PPG	Clamp ø15 - Green PP - DIN 2	15 mm	2	Stauff	Polypropylene
SLK216PPG	Clamp ø16 - Green PP - DIN 2	16 mm	2	Stauff	Polypropylene
SLK218PPG	Clamp ø18 - Green PP - DIN 2	18 mm	2	Stauff	Polypropylene
SLK319PP	Clamp ø19 - Green PP - DIN 3	19 mm	3	Stauff	Polypropylene
SLK3213PPG	Clamp ø21.3 - Green PP - DIN 3	21,3 mm	3	Stauff	Polypropylene
SLK322PPG	Clamp ø22 - Green PP - DIN 3	22 mm	3	Stauff	Polypropylene
SLK325PPG	Clamp ø25 - Green PP - DIN 3	25 mm	3	Stauff	Polypropylene
SLK4269PPG	Clamp ø26.9 - Green PP - DIN 4	26,9 mm	4	Stauff	Polypropylene
SLK428PPG	Clamp ø28 - Green PP - DIN 4	28 mm	4	Stauff	Polypropylene
SLK430PPG	Clamp ø30 - Green PP - DIN 4	30 mm	4	Stauff	Polypropylene
SLK432PPG	Rörklamma Ø32mm, DIN3015-1 Lätta Serien, Polypropylen	32 mm	4	Stauff	Polypropylene
SLK532PPG	Clamp ø32 - Green PP - DIN 5	32 mm	5	Stauff	Polypropylene
SLK5337PPG	Clamp ø33.7 - Green PP - DIN 5	33,7 mm	5	Stauff	Polypropylene
SLK535PPG	Clamp ø35 - Green PP - DIN 5	35 mm	5	Stauff	Polypropylene
SLK538PPG	Clamp ø38 - Green PP - DIN 5	38 mm	5	Stauff	Polypropylene
SLK540PPG	Clamp ø40 - Green PP - DIN 5	40 mm	5	Stauff	Polypropylene
SLK542PPG	Clamp ø42 - Green PP - DIN 5	42 mm	5	Stauff	Polypropylene
SLK545PPG	Rörklamma Ø42mm, DIN3015-1 Lätta Serien, Polypropylen	45 mm	5	Stauff	Polypropylene
SLK6445PPG	Clamp ø44.5 - Green PP - DIN 6	44,5 mm		Stauff	Polypropylene
SLK6483PPG	Clamp ø48.3 - Green PP - DIN 6	48,3 mm		Stauff	Polypropylene
SLK6508PPG	Clamp ø50.8 - Green PP - DIN 6	50,8 mm		Stauff	Polypropylene
SLK650PPG	Clamp ø50.8 - Green Profiled Polypropylene - DIN 6 - 650-PP	50 mm		Stauff	Polypropylene
SLK654PPG	Rörklamma Ø54mm, DIN3015-1 Lätta Serien, Polypropylen	54 mm		Stauff	Polypropylene
SLK7603PP	Clamp ø60.3 - Green PP - DIN 7	60,3 mm	7	Stauff	Polypropylene
SLK7635PP	Clamp ø63.5 - Green PP - DIN 7	63,5 mm	7	Stauff	Polypropylene
SLK770PP	Clamp ø70 - Green PP - DIN 7	70 mm	7	Stauff	Polypropylene
SLK7761PP	Clamp ø76.1 - Green PP - DIN 7	76,1 mm	7	Stauff	Polypropylene
SLK8889PP	Clamp ø88.9 - Green PP - DIN 8	88,9 mm	8	Stauff	Polypropylene
SLK890PPG	Rörklamma Ø90mm, DIN3015-1 Lätta Serien, Polypropylen	90 mm	8	Stauff	Polypropylene

Specifications
Dimensions and shipping (select variant)

Bredd

Färg

Green

Märke namn

Stauff

Temperatur max.

+90

Temperatur min.

-30

Tillverkningsmaterial

Polypropylene

Typ

Profiled

Åtdragning moment

Product information
Measure sketch (select variant)

Pipe clamp body, standard series, single, Polypropylene, green, profiled - SLK-PPG
