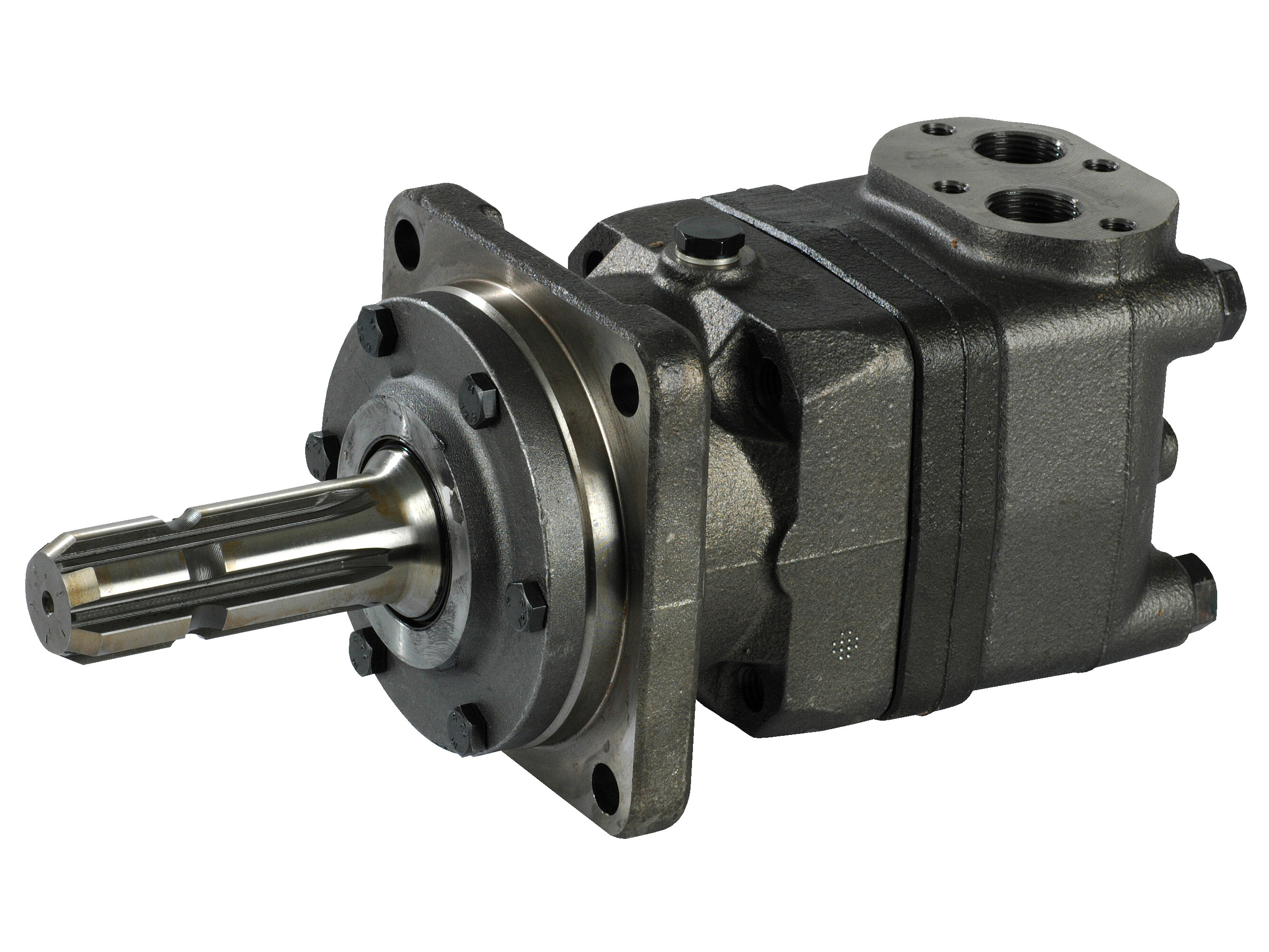

Orbital motors Danfoss OMT PTO shaft

OMT 160 HYDRAULIC MOTOR

OMT 200 HYDRAULIC MOTOR

OMT 250 HYDRAULIC MOTOR

OMT 315 HYDRAULIC MOTOR

OMT 500 HYDRAULIC MOTOR

SELECT VARIANT

Partnumber	Description	Displacement	Shaft type	Continuous power max.	Number of mounting holes
151B3018	OMT 160 HYDRAULIC MOTOR	161.1 cm3	PTO	26.5 kW	4
151B3019	OMT 200 HYDRAULIC MOTOR	201.4 cm3	PTO	33.5 kW	4
151B3020	OMT 250 HYDRAULIC MOTOR	251.8 cm3	PTO	33.5 kW	4
151B3021	OMT 315 HYDRAULIC MOTOR	326.3 cm3	PTO	33.5 kW	4
151B3023	OMT 500 HYDRAULIC MOTOR	523.6 cm3	PTO	26.5 kW	4

Brand Name

Danfoss

Contamination level max.

22/20/16 - ISO 4406

Dimension L3

102

Drainport

G 1/4

Holes circle

160

Mounting flange

Square 125

Number of mounting holes

Number of outer grooves

Oil viscocity recommended

20 - 75

Port position

Side

Recess

125,0

Shaft spline

1.3/8" Z6 PTO

Shaft type

PTO

Temperature ambient max.

+90

Temperature ambient min.

-30

Working ports

G 3/4
