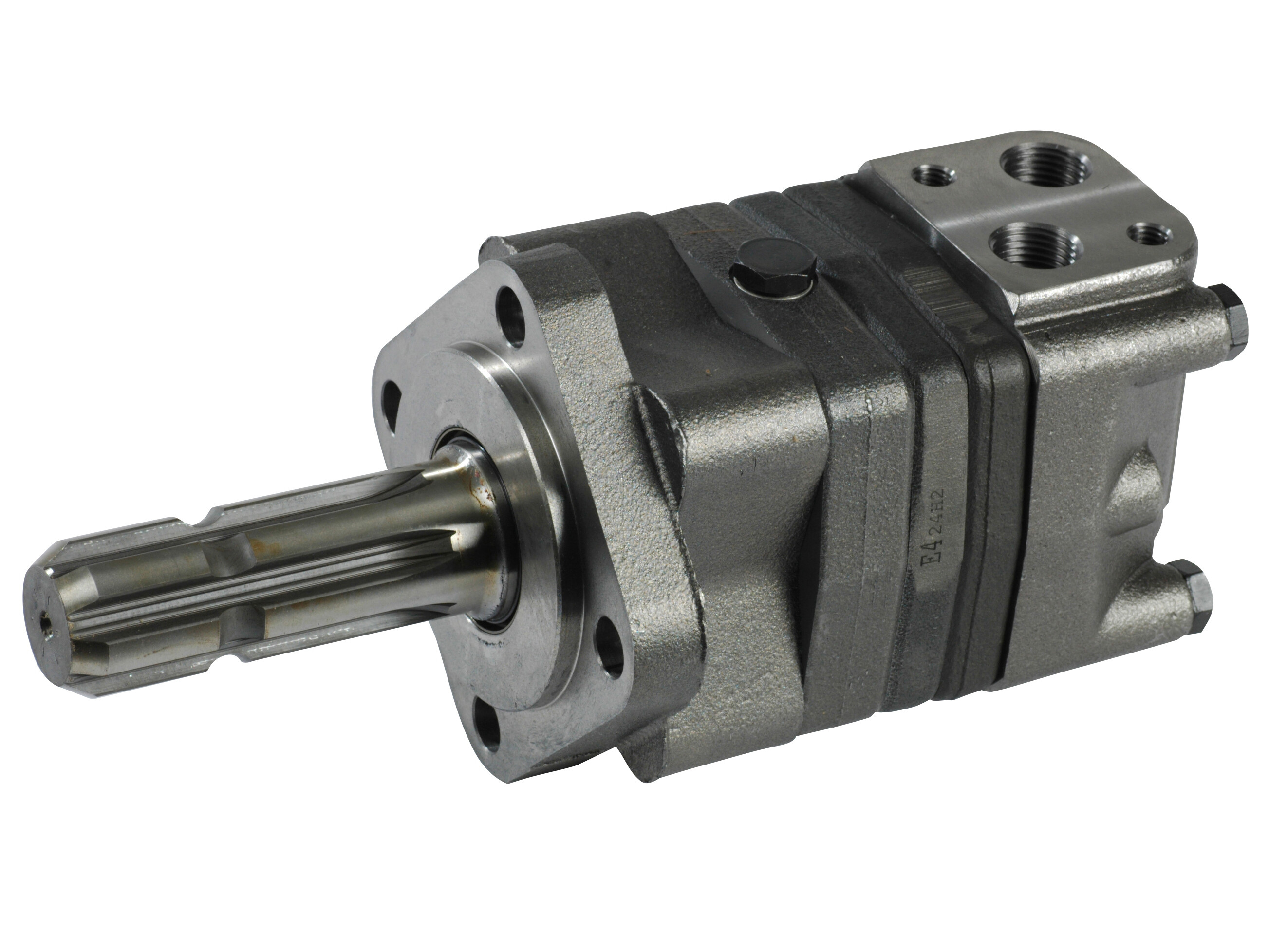

Orbital motors White OMS spline shaft PTO

OMS 80 HYDRAULIC MOTOR Series 3

OMS 100 HYDRAULIC MOTOR Series 3

OMS 125 HYDRAULIC MOTOR Series 3

OMS 200 HYDRAULIC MOTOR Series 3

SELECT VARIANT

Partnumber	Description	Displacement	Shaft type	Continuous power max.	Number of mounting holes
151F0560	OMS 80 HYDRAULIC MOTOR Series 3	80.5 cm3	PTO	15.5 kW	4
151F0561	OMS 100 HYDRAULIC MOTOR Series 3	100 cm3	PTO	18 kW	4
151F0562	OMS 125 HYDRAULIC MOTOR Series 3	125.7 cm3	PTO	18 kW	4
151F0564	OMS 200 HYDRAULIC MOTOR Series 3	200 cm3	PTO	16.5 kW	4

Brand Name

White

Dimension L3

109

Drainport

G 1/4

Holes circle

106.4

Mounting flange

Square 82,5

Number of mounting holes

Number of outer grooves

Oil viscocity recommended

20 - 75

Port position

Side

Pressure drop continuous max.

210

Recess

82,5

Shaft spline

1.3/8" Z6 PTO

Shaft type

PTO

Working ports

G 1/2
