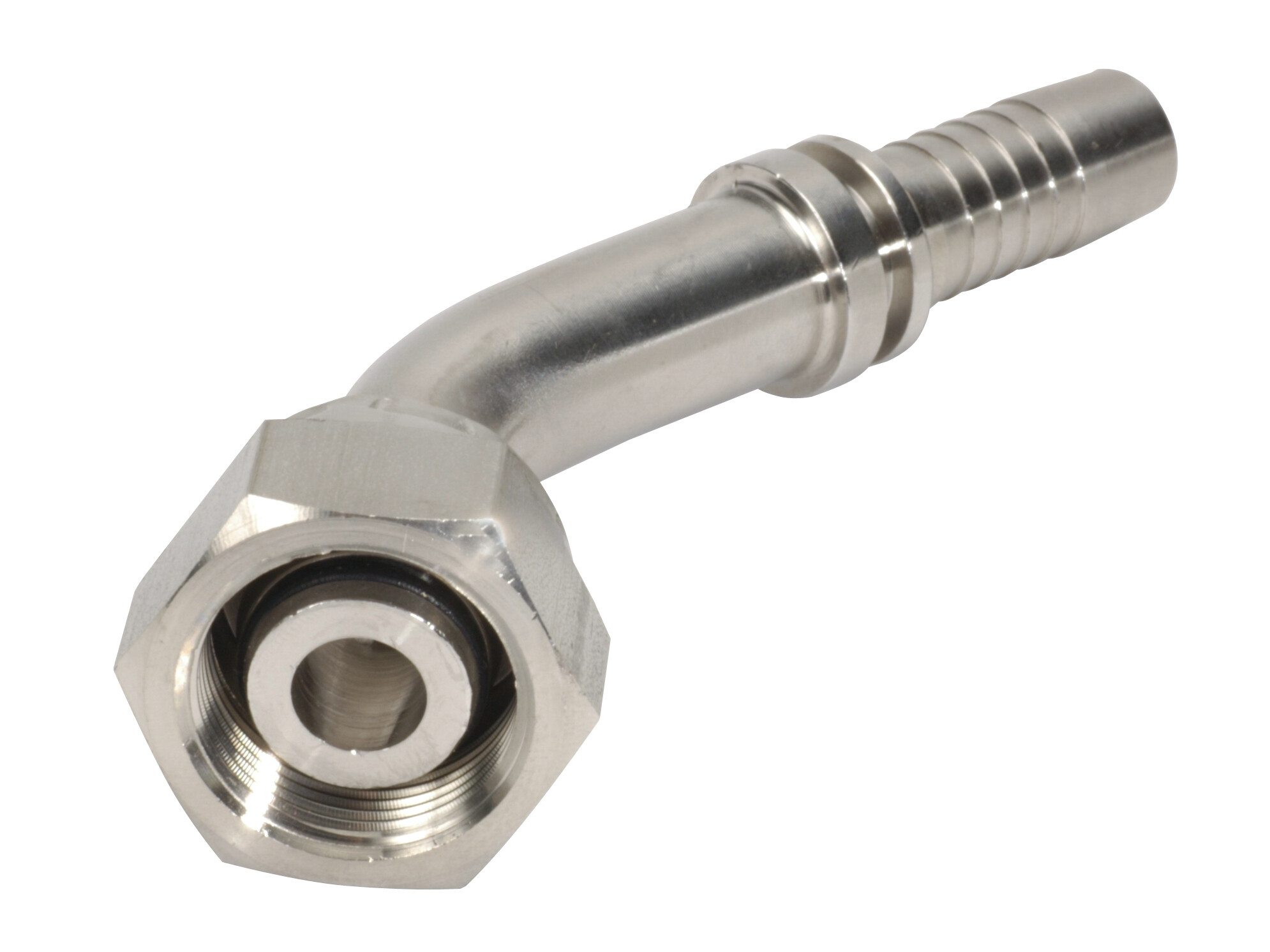

Metric union nut, 24° cone face, 45°, HEAVY - "RO45" stainless

Metric union nut, 24° cone face, 45°, HEAVY - "RO45" stainless

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Diameter pipe Hose size Angle Hose coupling type
4842-06-04-SY 1/4" Insert - (6S) M14x1.5 female - 45° - AISI316 6 mm 45 ° For separate ferrule
4842-08-04-SY 1/4" Insert - (8S) M16x1.5 female - 45° - AISI316 8 mm 1/4 " 45 ° For separate ferrule
4842-10-04-SY 1/4" Insert - (10S) M18x1.5 female - 45° - AISI316 10 mm 1/4 " 45 ° For separate ferrule
4842-10-06-SY Presskoppling 45° Inv-M18 Ø3/8'' Syrafast 45 ° For separate ferrule
4842-12-04-SY Presskoppling 45° Inv-M20 Ø1/4'' Syrafast 45 ° For separate ferrule
4842-12-05-SY 5/16" Insert - (12S) M20x1.5 female - 45° - AISI316 12 mm 5/16 " 45 ° For separate ferrule
4842-12-06-SY 3/8" Insert - (12S) M20x1.5 female - 45° - AISI316 12 mm 3/8 " 45 ° For separate ferrule
4842-14-06-SY 3/8" Insert - (14S) M22x1.5 female - 45° - AISI316 14 mm 3/8 " 45 ° For separate ferrule
4842-16-08-SY 1/2" Insert - (16S) M24x1.5 female - 45° - AISI316 16 mm 1/2 " 45 ° For separate ferrule
4842-20-10-SY 5/8" Insert - (20S) M30x2 female - 45° - AISI316 20 mm 5/8 " 45 ° For separate ferrule
4842-20-12-SY 3/4" Insert - (20S) M30x2 female - 45° - AISI316 20 mm 45 ° For separate ferrule
4842-25-12-SY 3/4" Insert - (25S) M36x2 female - 45° - AISI316 25 mm 3/4 " 45 ° For separate ferrule
4842-25-16-SY 1" Insert - (25S) M36x2 female - 45° - AISI316 25 mm 1 " 45 ° For separate ferrule
4842-30-16-SY 1" Insert - (30S) M42x2 female - 45° - AISI316 30 mm 1 " 45 ° For separate ferrule
4842-38-20-SY 1.1/4" Insert - (38S) M52x2 female - 45° - AISI316 45 ° For separate ferrule
Angle
45
Brand Name
Hydraspecma
Hose coupling type
For separate ferrule
Material
Stainless steel
Material quality
1.4571 / AISI316Ti
Series
S
Temperature max.
+100
