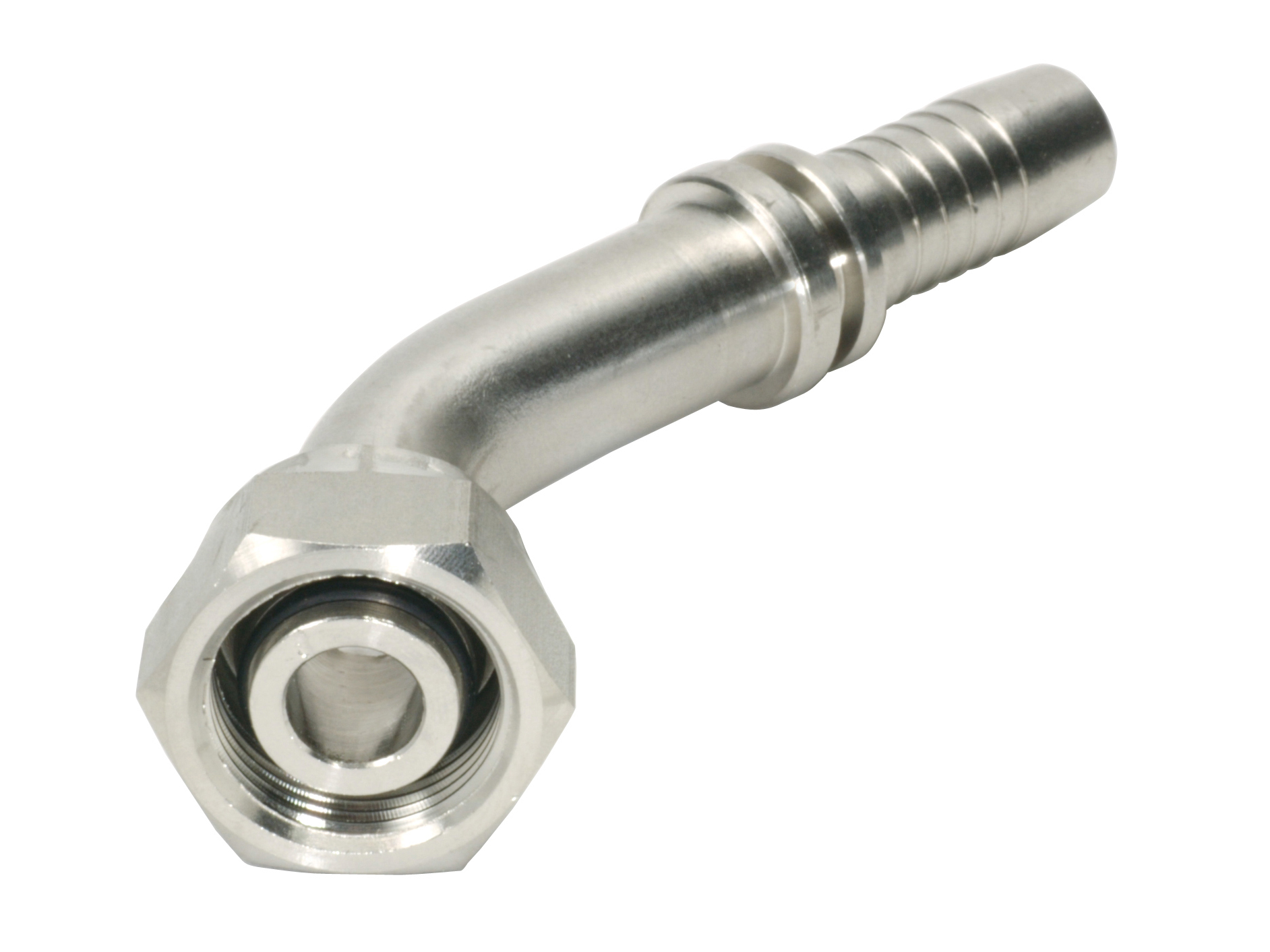

Metric union nut, 24° cone face, 45°, LIGHT, "RO45" stainless

Metric union nut, 24° cone face, 45°, LIGHT, "RO45" stainless

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Diameter pipe Hose size Angle Hose coupling type
4742-06-03-SY PRESSN. 45B INV-M DKOL PRESSAD 45 ° For separate ferrule
4742-06-04-SY 1/4" Insert - (6L) M12x1.5 female - 45° - AISI316 6 mm 45 ° For separate ferrule
4742-08-04-SY 1/4" Insert - (8L) M14x1.5 female - 45° - AISI316 8 mm 1/4 " 45 ° For separate ferrule
4742-10-04-SY 1/4" Insert - (10L) M16x1.5 female - 45° - AISI316 10 mm 1/4 " 45 ° For separate ferrule
4742-10-05-SY 5/16" Insert - (10L) M16x1.5 female - 45° - AISI316 10 mm 5/16 " 45 ° For separate ferrule
4742-10-06-SY 3/8" Insert - (10L) M16x1.5 female - 45° - AISI316 10 mm 3/8 " 45 ° For separate ferrule
4742-12-04-SY PRESSN. 45B INV-M DKOL PRESSAD 45 ° For separate ferrule
4742-12-05-SY PRESSN. 45B INV-M DKOL PRESSAD 45 ° For separate ferrule
4742-12-06-SY 3/8" Insert - (12L) M18x1.5 female - 45° - AISI316 12 mm 3/8 " 45 ° For separate ferrule
4742-15-06-SY Presskoppling 45° Inv-M22 Ø3/8'' Syrafast 45 ° For separate ferrule
4742-15-08-SY 1/2" Insert - (15L) M22x1.5 female - 45° - AISI316 15 mm 1/2 " 45 ° For separate ferrule
4742-18-08-SY PRESSN. 45B INV-M DKOL PRESSAD 45 ° For separate ferrule
4742-18-10-SY 5/8" Insert - (18L) M26x1.5 female - 45° - AISI316 18 mm 5/8 " 45 ° For separate ferrule
4742-22-12-SY PRESSN. 45B INV-M DKOL PRESSAD 22 mm 3/4 " 45 ° For separate ferrule
4742-28-16-SY 1" Insert - (28L) M36x2 female - 45° - AISI316 28 mm 1 " 45 ° For separate ferrule
4742-35-20-SY 1.1/4" Insert - (35L) M45x2 female - 45° - AISI316 35 mm 1.1/4 " 45 ° For separate ferrule
4742-42-24-SY 1.1/2" Insert - (42L) M52x2 female - 45° - AISI316 42 mm 1.1/2 " 45 ° For separate ferrule
Angle
45
Hose coupling type
For separate ferrule
Material
Stainless steel
Material quality
1.4571 / AISI316Ti
Sealing material
NBR
Series
L
