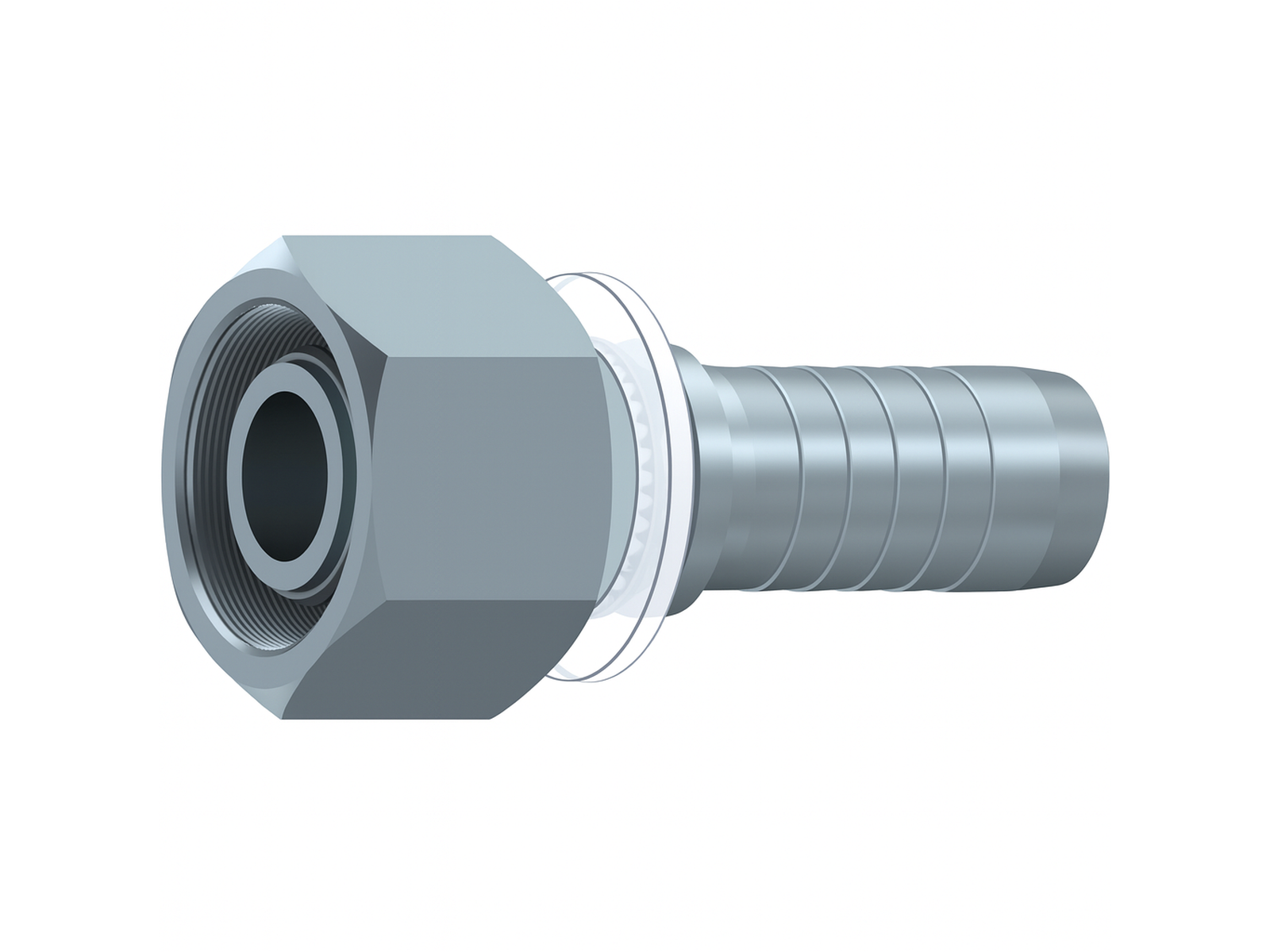

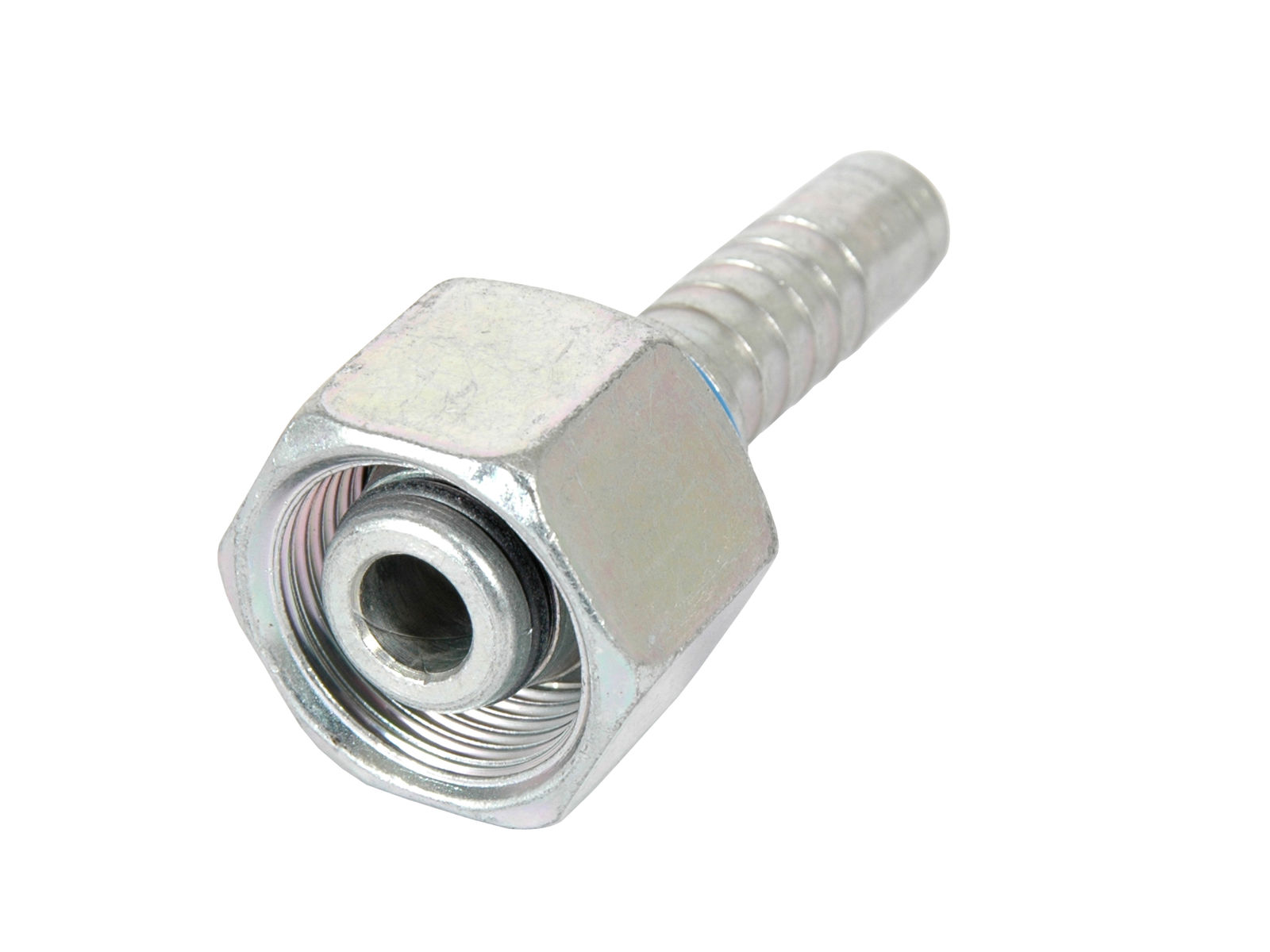

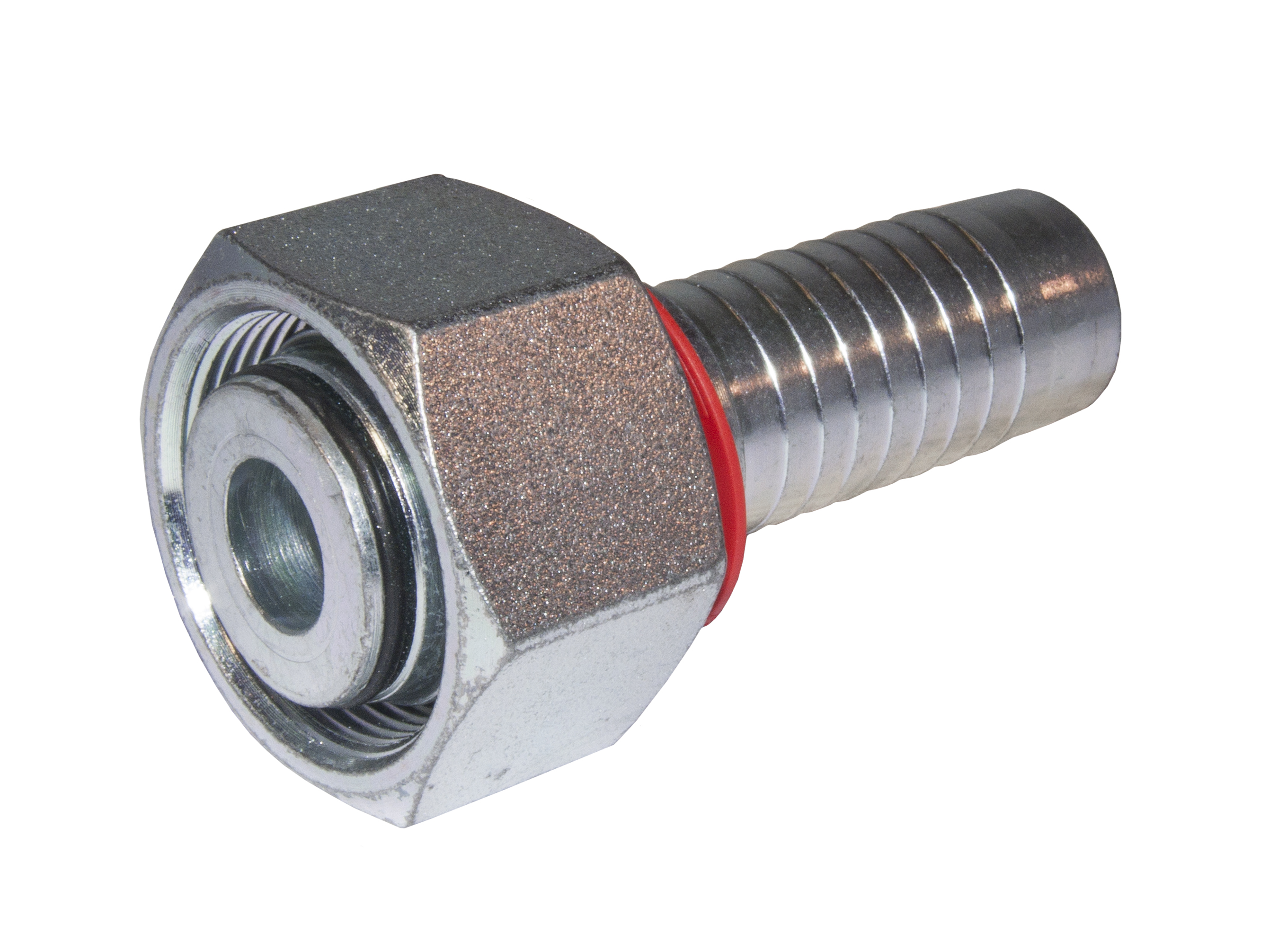

Metric union nut, 24° cone face, HEAVY series, "RO"

SELECT VARIANT
Partnumber Description Hose size Angle Hose coupling type Material
4822-06-02 PRESSNIPPEL 4822 IM14 SL1/8 1/8 " 0 ° For separate ferrule Steel
4822-06-03 PRESSNIPPEL 4822 IM14 SL3/16 3/16 " 0 ° For separate ferrule Steel
4822-06-04 Insert 1/4" - M14x1.5 nut 06S 1/4 " 0 ° For separate ferrule Steel
4822-08-03 Insert 3/16" - M16x1.5 nut 08S 3/16 " 0 ° For separate ferrule Steel
4822-08-04 Insert 1/4" - M16x1.5 nut 08S 1/4 " 0 ° For separate ferrule Steel
4822-08-05 Insert 5/16" - M16x1.5 nut 08S 5/16 " 0 ° For separate ferrule Steel
4822-08-06 PRESSNIPPEL 4822 IM16 SL3/8 Pressad mutter 3/8 " 0 ° For separate ferrule Steel
4822-10-04 Insert 1/4" - M18x1.5 nut 10S 1/4 " 0 ° For separate ferrule Steel
4822-10-05 Insert 5/16" - M18x1.5 nut 10S 5/16 " 0 ° For separate ferrule Steel
4822-10-06 Insert 3/8" - M18x1.5 nut 10S 3/8 " 0 ° For separate ferrule Steel
4822-12-04 Insert 1/4" - M20x1.5 nut 12S 1/4 " 0 ° For separate ferrule Steel
4822-12-05 Insert 5/16" - M20x1.5 nut 12S 5/16 " 0 ° For separate ferrule Steel
4822-12-06 Insert 3/8" - M20x1.5 nut 12S 3/8 " 0 ° For separate ferrule Steel
4822-12-08 Insert 1/2" - M20x1.5 nut 12S 1/2 " 0 ° For separate ferrule Steel
4822-12-08-NV24 Letkuliitin sk DKOS suora 1/2 " 0 ° For separate ferrule Steel
4822-14-05 PRESSNIPPEL 4822 IM22 SL5/16 0 ° For separate ferrule Steel
4822-14-06 Insert 3/8" - M22x1.5 nut 14S 3/8 " 0 ° For separate ferrule Steel
4822-14-08 Insert 1/2" - M22x1.5 nut 14S 1/2 " 0 ° For separate ferrule Steel
4822-16-04 PRESSNIPPEL 4822 IM24 SL1/4 0 ° For separate ferrule Steel
4822-16-05 PRESSNIPPEL 4822 IM24 SL5/16 0 ° For separate ferrule Steel
4822-16-06 PRESSNIPPEL 4822 IM24 SL3/8 3/8 " 0 ° For separate ferrule Steel
4822-16-08 Insert 1/2" - M24x1.5 nut 16S 1/2 " 0 ° For separate ferrule Steel
4822-16-10 Insert 5/8" - M24x1.5 nut 16S 5/8 " 0 ° For separate ferrule Steel
4822-16-12 PRESSNIPPEL 4822 IM24 SL3/4 3/4 " 0 ° For separate ferrule Steel
4822-20-06 PRESSNIPPEL 4822 IM30 SL3/8 0 ° For separate ferrule Steel
4822-20-08 PRESSNIPPEL 4822 IM30 SL1/2 1/2 " 0 ° For separate ferrule Steel
4822-20-10 Insert 5/8" - M30x2 nut 20S 5/8 " 0 ° For separate ferrule Steel
4822-20-12 Insert 3/4" - M30x2 nut 20S 3/4 " 0 ° For separate ferrule Steel
4822-25-08 PRESSNIPPEL 4822 IM36 SL1/2 0 ° For separate ferrule Steel
4822-25-10 PRESSNIPPEL 4822 IM36 SL5/8 0 ° For separate ferrule Steel
4822-25-12 Insert 3/4" - M36x2 nut 25S 3/4 " 0 ° For separate ferrule Steel
4822-25-12-HD Presskoppling Rak, IM36 Ø3/4'', Heavy Duty 3/4 " 0 ° For separate ferrule Steel
4822-25-12-NV41 PRESSNIPPEL 4822 IM36 SL3/4 NV=41MM 3/4 " 0 ° For separate ferrule Steel
4822-25-16 Insert 1" - M36x2 nut 25S 1 " 0 ° For separate ferrule Steel
4822-30-10 PRESSNIPPEL 4822 IM42 SL5/8 0 ° For separate ferrule Steel
4822-30-12 PRESSNIPPEL 4822 IM42 SL3/4 0 ° For separate ferrule Steel
4822-30-16 Insert 1" - M42x2 nut 30S 1 " 0 ° For separate ferrule Steel
4822-30-16-HD Presskoppling Rak, IM42 Ø1'', Heavy Duty 1 " 0 ° For separate ferrule Steel
4822-30-20 PRESSNIPPEL 4822 IM42 SL11/4 1.1/4 " 0 ° For separate ferrule Steel
4822-38-16 PRESSNIPPEL 4822 IM52 SL1 1 " 0 ° For separate ferrule Steel
4822-38-20 Insert 1.1/4" - M52x2 nut 38S 1.1/4 " 0 ° For separate ferrule Steel
4822-38-20-HD Presskoppling Rak, IM52 Ø1.1/4'', Heavy Duty 1.1/4 " 0 ° For separate ferrule Steel
4822-38-24 Insert 1.1/2" - M52x2 nut 38S 1.1/2 " 0 ° For separate ferrule Steel
Angle
0

Hose coupling type
For separate ferrule

Material
Steel

Series
S
