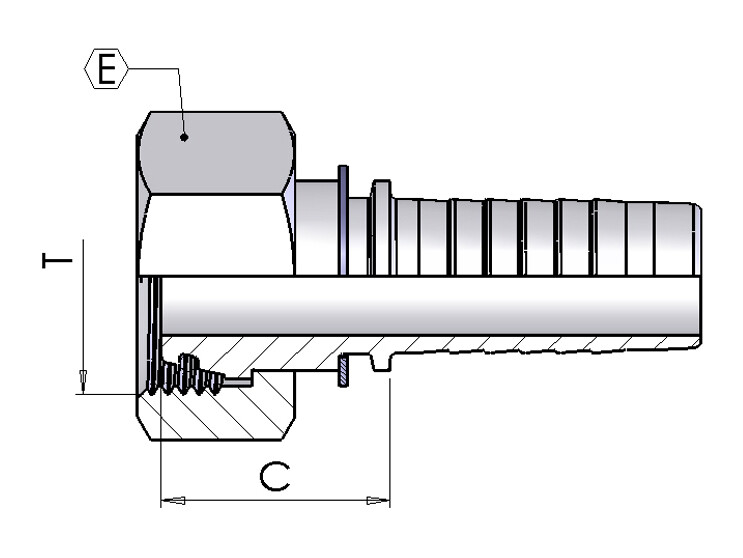

Insert 5/8" - M30x2 nut 20S
Insert with MM female thread in nut and 24° cone face with o-ring.
Connection: MM female thread and 24° cone face with o-ring (DIN2353).
Sealing: O-ring against cone face.
Varenummer:
4822-20-10
Pakke str.:
100 st
Min. bestillingsenhed er:
1 st
C
33 mm
Diameter rör
20 mm
E
36 mm
Modell kod
0084-10-30
Märke namn
I.M.M Hydraulics
Packningsmaterial
NBR
Serie
S
Slangdimension
5/8 "
Slangkopplingstyp
For separate ferrule
T
M30x2
Temperatur max.
+100 °C
Temperatur min.
-30 °C
Tillverkningsmaterial
Steel
Vinkel
0 °
Ytskiktbehandling
Electro-galvanized / White chromatized
Åtdragning moment
116 Nm
Pakke str.
100 st
Stregkode
143211
Brutto vægt
0,18 Kg
Netto vægt
0,18 Kg
Oprindelsesland
ITA
Intrastat varekode
73269098
Insert with MM female thread in nut and 24° cone face with o-ring.
Connection: MM female thread and 24° cone face with o-ring (DIN2353).
Sealing: O-ring against cone face.
