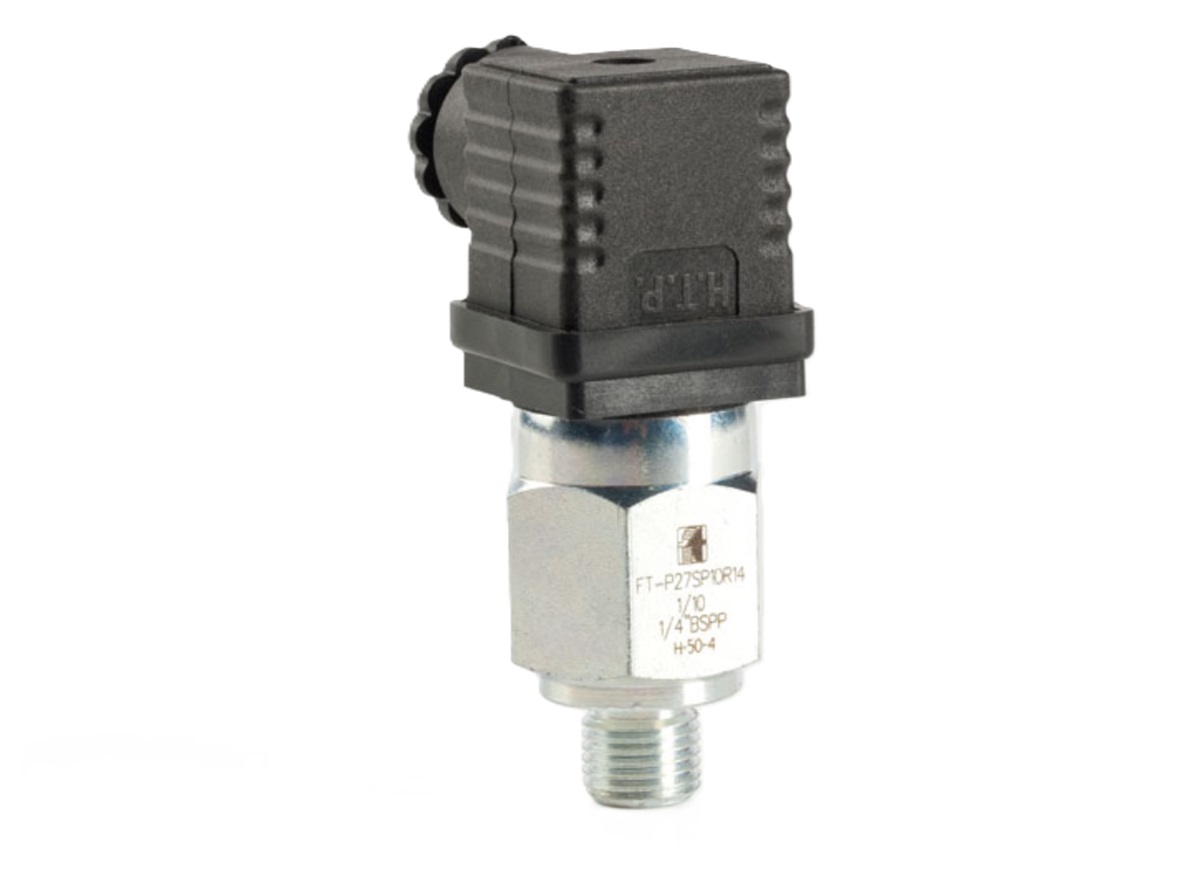

Pressure switches - FT-P27

Pressure switches - FT-P27

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Pressure max. Voltage max. Contact function
FT-P27HP300R14 Tryckvakt växlande 20-300 Bar G1/4, IP65, DIN-A, Kolv 600 bar 250 V Changeover
FT-P27HP50R14 Tryckvakt växlande 15-50 Bar G1/4, IP65, DIN-A, Kolv 600 bar 250 V Changeover
FT-P27SP10R14 Tryckvakt växlande 1-10 Bar G1/4, IP65, DIN-A 300 bar 250 V Changeover
FT-P27SP1R14 Tryckvakt växlande 0.2-1 Bar G1/4, IP65, DIN-A 300 bar 250 V Changeover
FT-P27SP200R14 Tryckvakt växlande 50-200 Bar G1/4, IP65, DIN-A, Kolv 300 bar 250 V Changeover
FT-P27SP20R14 Tryckvakt växlande 10-20 Bar G1/4, IP65, DIN-A 300 bar 250 V Changeover
FT-P27SP2R14 Tryckvakt växlande 0.5-2 Bar G1/4, IP65, DIN-A 300 bar 250 V Changeover
FT-P27SP50R14 Tryckvakt växlande 20-50 Bar G1/4, IP65, DIN-A 300 bar 250 V Changeover
Brand Name
Tognella
Contact function
Changeover
Current max.
0.5
Material
Steel
Plug type
DIN 43650 Form A
Sealing material
NBR
Surface treatment
Zinc-plated
Temperature max.
+110
Temperature min.
-20
Thread
G 1/4
Voltage max.
250
