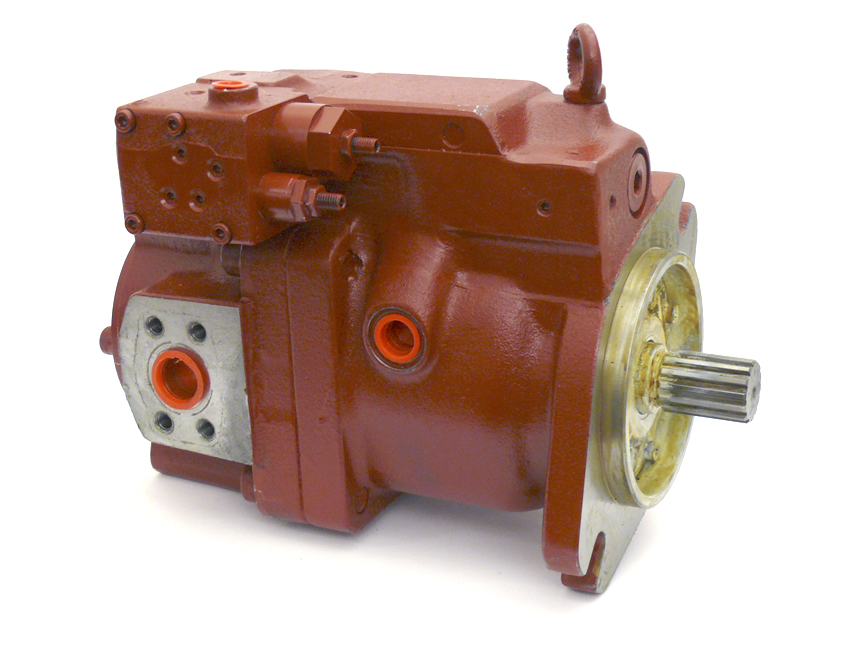

Piston pumps Kawasaki - K3VL

SELECT VARIANT
Partnumber Description Displacement Rotational speed max. Pressure continous max. Rotation direction
K3VL112B-1NRCM-L1-1M3 Pump Kawasaki 112cc SAE C2-SPL.14T 112 cm3 2200 rpm 320 bar Right (CW)
K3VL112B-1NRMM-L1 OC Pump 112cc R-rotation 45mm 4-Bolt ISO-180 Mount 112 cm3
K3VL112B-1NRWM-L1 OC Pump LS 112cc R-rotation SAE-CC Spline 2-bolt SAE-C Mount 112 cm3 2200 rpm 320 bar Right (CW)
K3VL140B-1NRSM-L1 OC pump LS 140cc CW SAE-D4 13T 8/16 SAE D/E 140 cm3 2100 rpm 320 bar Right (CW)
K3VL200/B-1NRKM-L0 OC Pump LS 200cc R-rotation SAE-D 44,45mm 4-bolt SAE-E Mount 200 cm3 1900 rpm 320 bar Right (CW)
K3VL200B-1NRSM-L1 OC Pump LS 200cc R-rotation SAE-D Spline 4-bolt SAE-E Mount 200 cm3 1900 rpm 320 bar Right (CW)
K3VL45B-1NLSM-L1 Pump Kawasaki 45cc vä rot SAE B2-SPL.15T med PTO 45 cm3 2700 rpm 320 bar Left (CCW)
K3VL45B-1NRMM-L1 OC Pump LS 45cc R-rotation 25mm 2-bolt ISO-100 Mount 45 cm3 2700 rpm 320 bar Right (CW)
K3VL45B-1NRSM-L1 OC Pump LS 45cc R-rotation SAE-BB Spline 2-bolt SAE-B Mount 45 cm3 2700 rpm 320 bar Right (CW)
K3VL80B-1NLSM-L1 Pump Kawasaki 80cc vä rot 80 cm3 2400 rpm 320 bar Left (CCW)
K3VL80B-1NRMM-L1 OC Pump LS 80cc 32MM 2-Bolt ISO-125 Mount 80 cm3 320 bar Right (CW)
K3VL80B-1NRSM-L1 OC Pump LS 80cc R-Rotation SAE-C Spline 2-Bolt SAE-C Mount 80 cm3 2400 rpm 320 bar Right (CW)
K3VL80B-1NRSM-L1-1M4 Pump Kawasaki 80cc hö rot 80 cm3
