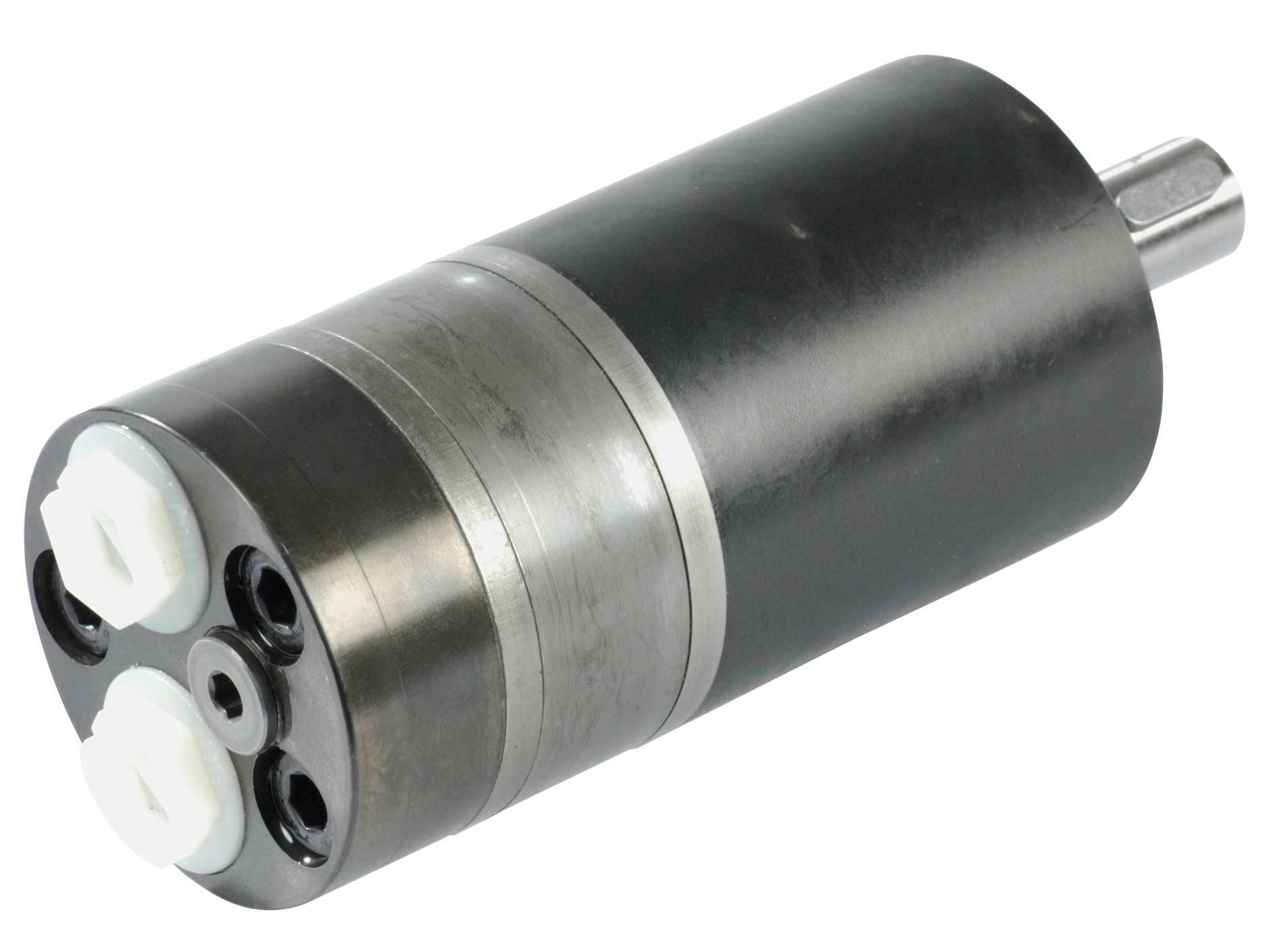

Orbital motors White OMM cylindrical shaft

Orbital motors White OMM cylindrical shaft

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Shaft diameter Shaft type Displacement Continuous rotation max.
151G0001 OMM 12,5 HYDRAULIC MOTOR 16 mm Cylindrical 12.9 cm3 1550 rpm
151G0002 OMM 20 HYDRAULIC MOTOR 16 mm Cylindrical 19.9 cm3 1000 rpm
151G0003 OMM 32 HYDRAULIC MOTOR END PORTS 16 mm Cylindrical 31.6 cm3 630 rpm
151G0004 OMM 12,5 HYDRAULIC MOTOR 16 mm Cylindrical 12.9 cm3 1550 rpm
151G0005 OMM 20 HYDRAULIC MOTOR 16 mm Cylindrical 19.9 cm3 1000 rpm
151G0006 OMM 32 HYDRAULIC MOTOR SIDE PORTS 16 mm Cylindrical 31.6 cm3 630 rpm
151G0013 OMM 50 HYDRAULIC MOTOR 16 mm Cylindrical 50.3 cm3 400 rpm
151G0037 OMM 50 HYDRAULIC MOTOR 16 mm Cylindrical 50.3 cm3 400 rpm
151G0040 OMM 8,0 HYDRAULIC MOTOR 16 mm Cylindrical 8.2 cm3 1950 rpm
151G0041 OMM 8,0 HYDRAULIC MOTOR 16 mm Cylindrical 8.2 cm3 1950 rpm
151G0099 OMM 32 HYDRAULIC MOTOR 16 mm Cylindrical
151G0228 OMM 32 HYDRAULIC MOTOR 16 mm Cylindrical 31.6 cm3 630 rpm
151G0229 OMM 50 Hydraulic motor 16mm side port (BLACK) 16 mm Cylindrical 50.3 cm3 400 rpm
151G0231 OMM 08 Orbitmotor 16 mm side ports 16 mm Cylindrical 8.2 cm3 1950 rpm
151G0232 OMM 20 16mm m.dræn Sort 16 mm Cylindrical 19.9 cm3 1000 rpm
151G0233 OMM 50 Hydraulic motor 16mm end port (BLACK) 16 mm Cylindrical 50.3 cm3 400 rpm
151G0297 OMM 70 PB HYDRAULIC MOTOR 16 mm Cylindrical 70 cm3 285 rpm
Brand Name
White
Holes circle
45
Mounting flange
OMM 45
Number of mounting holes
3
Oil viscocity recommended
20 - 75
Recess
31,5
Sealing material
NBR
Shaft diameter
16
Shaft keyway
5,0
Shaft type
Cylindrical
Working ports
G 3/8
