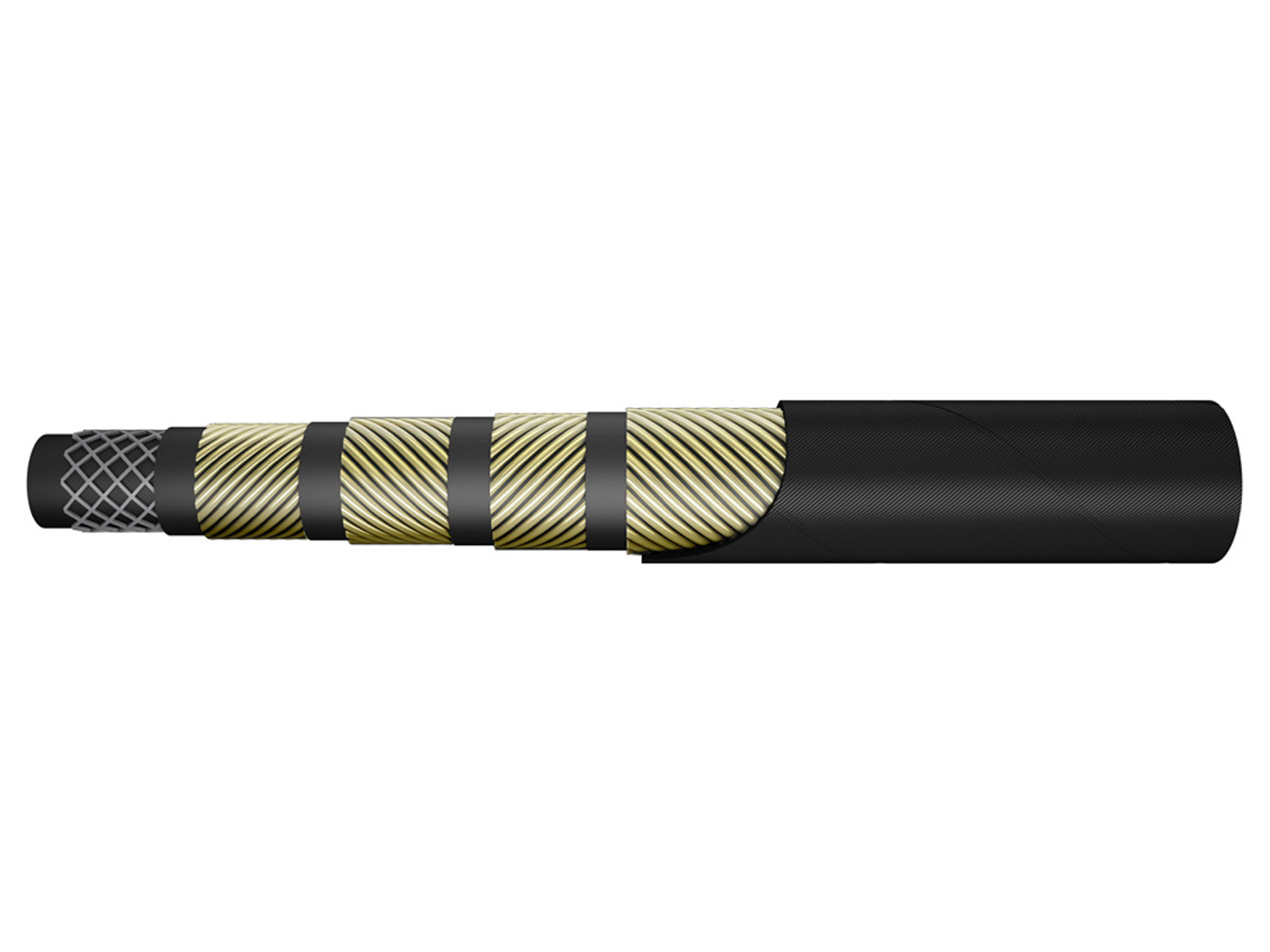

TFDM4SHN 4SH hydraulic hoses

Hydraulslang 4SH 3/4

Hydraulslang 4SH 1tum

Hydraulslang 4SH 11/4

Hydraulslang 4SH 11/2

Hydraulslang 4SH 2tum

SELECT VARIANT

Partnumber	Description	Hose size	Pressure max.	Hose type	Bend radius
4SH-12	Hydraulslang 4SH 3/4	3/4 "	420 bar	4SH	210 mm
4SH-16	Hydraulslang 4SH 1tum	1 "	385 bar	4SH	220 mm
4SH-20	Hydraulslang 4SH 11/4	1.1/4 "	350 bar	4SH	400 mm
4SH-24	Hydraulslang 4SH 11/2	1.1/2 "	300 bar	4SH	560 mm
4SH-32	Hydraulslang 4SH 2tum	2 "	250 bar	4SH	700 mm

Brand Name

I.M.M Hydraulics

Flameresistant

Yes

Hose type

4SH

Hoseapprovals

ABS, BV, CCS, DNV-GL, KR, LLOYD, MED, MSHA, NKK

REACH compliant

Yes

RoHs compliant

Yes

Standard EN

EN 856 4SH

Standard ISO

ISO 3862 4SH

Temperature intermittent max.

+120

Temperature max.

+100

Temperature min.

-40
