Mounting rail 28x11 - L=2m - Stainless
Mounting rail for pipe clamp installations, used as a base profile to position and fasten compatible clamps and accessories in hydraulic and pipe routing.
The rail has a 28 mm width and 11 mm height profile with 2 mm thickness, supplied in a 2000 mm length. Material quality 1.4571 / AISI316Ti supports use where stainless steel is required for the mounting structure.
Typical Applications
- Mounting and aligning pipe clamps along frames, skids, panels, and structures
- Organising hydraulic and process pipe routing in fixed installations
Artikelnummer:
TS011-SY
Förpackningsstorlek:
2 m
Minsta beställningskvantitet:
1 m

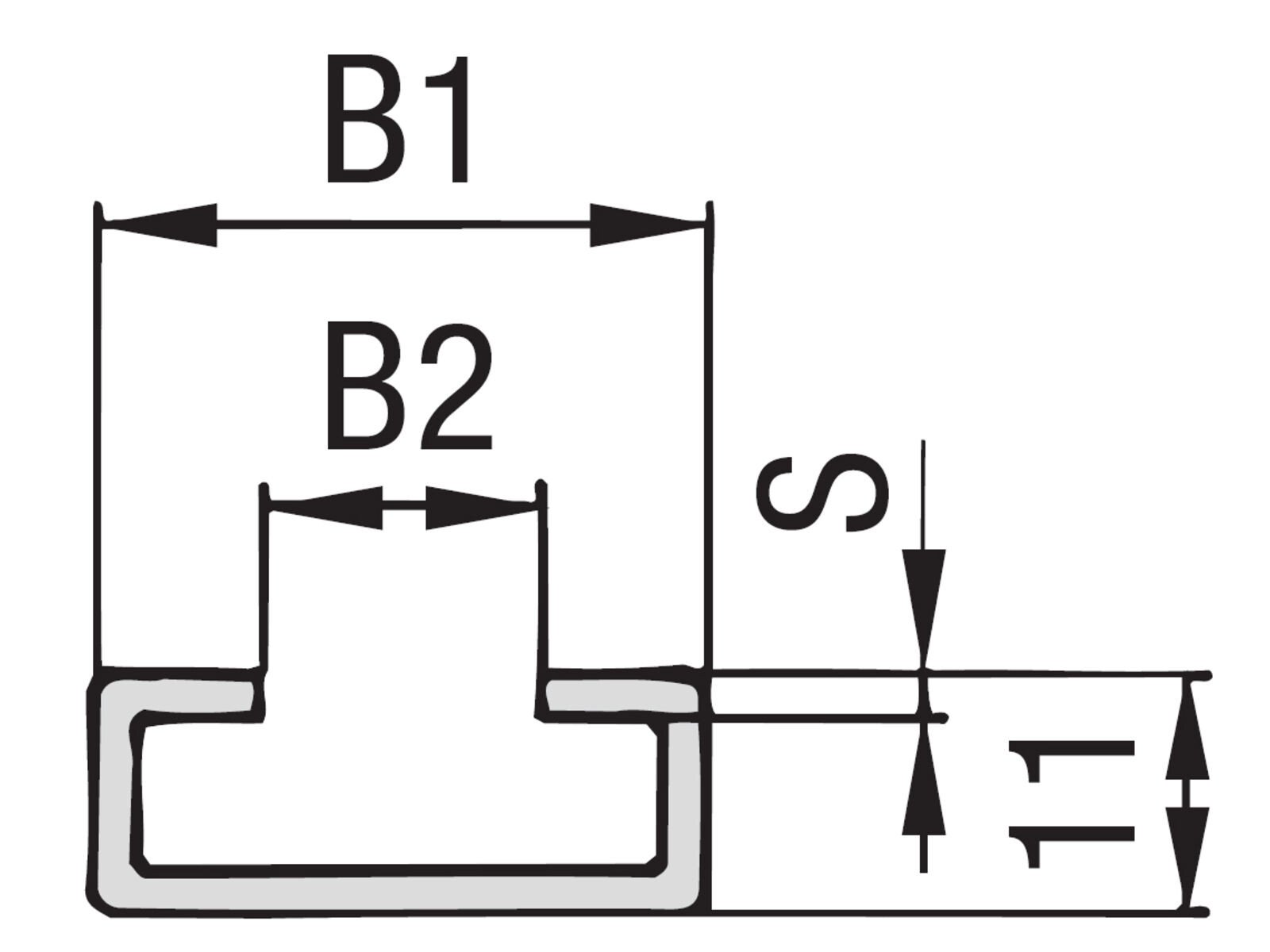

B1
28 mm
B2
11 mm
Brand Name
Stauff
H
11 mm
Height
11 mm
Length
2000 mm
Material
Stainless steel
Material quality
1.4571 / AISI316Ti
Model code
TS-11-2M-W5
S
2 mm
Width
28 mm
Package size
2 m
Barcode
212979
Gross weight
1,70 Kg
Net weight
1,70 Kg
Country of origin
DEU
Intrastat code
39259010
Mounting rail for pipe clamp installations, used as a base profile to position and fasten compatible clamps and accessories in hydraulic and pipe routing.
The rail has a 28 mm width and 11 mm height profile with 2 mm thickness, supplied in a 2000 mm length. Material quality 1.4571 / AISI316Ti supports use where stainless steel is required for the mounting structure.
Typical Applications
- Mounting and aligning pipe clamps along frames, skids, panels, and structures
- Organising hydraulic and process pipe routing in fixed installations
Note: Opening 3D files requires a program that supports the file format
