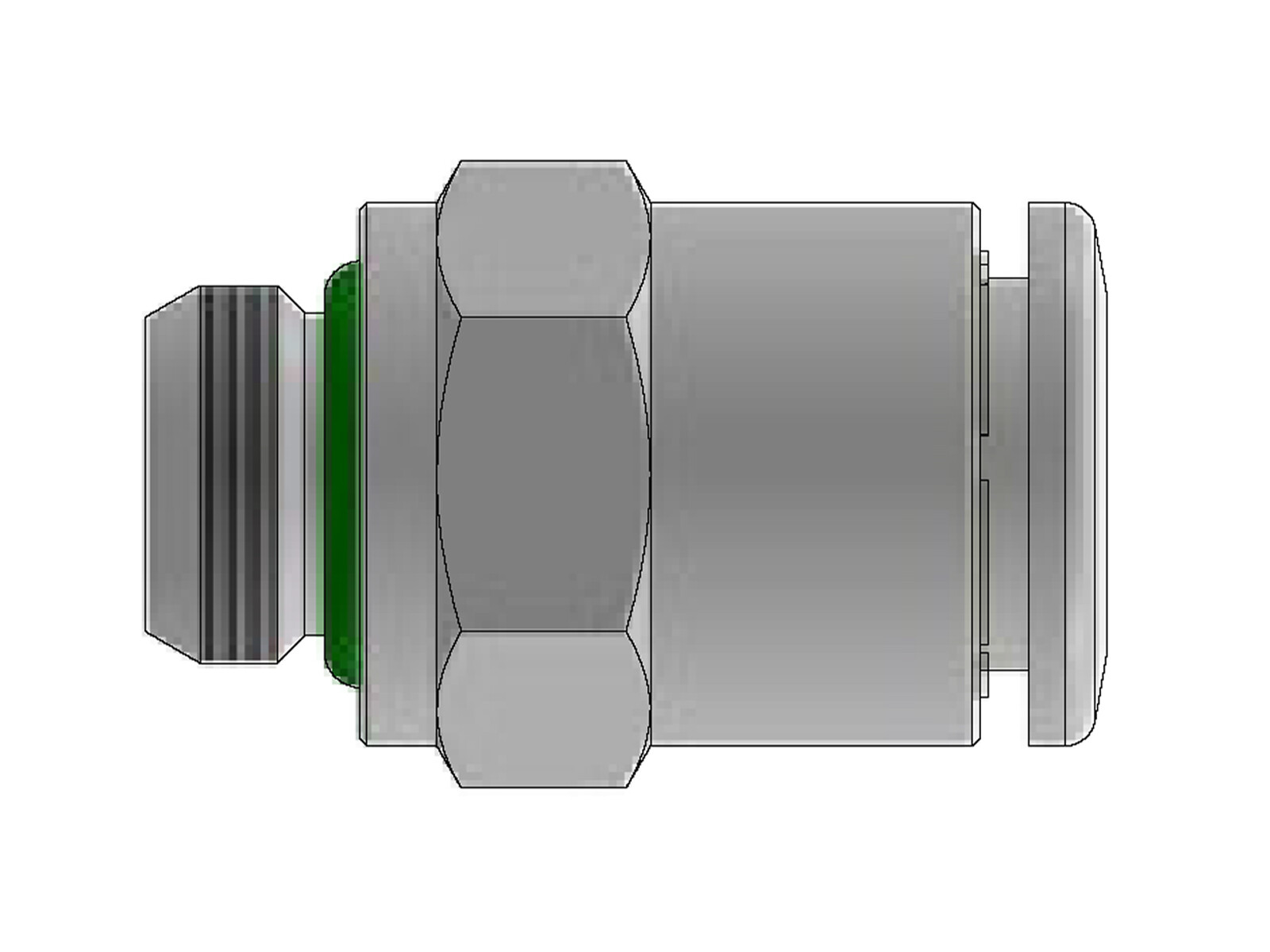

Rak Push-in, 6mm rör G1/4, o-ring, SY

The XVR series of acid-resistant push-in nipples are suitable for use in aggressive environments and critical installations. Suitable for use with food and clean water.

Partnumber:
SXC-06G02

Package size:
5 st

Min. order quantity is:
1 st
Användingsområde
Compressed air, Gas and liquids compatible with constituent materials, Vacuum

Diameter rör
6 mm

Gänga ISO standard
ISO 228

Gänga utv.
G 1/4 BSP

Materialkvalitet
AISI 316L

Modell kod
XVRC06G02

Märke namn
Tierre

Packningsmaterial
FKM/FPM (Viton®), PVDF-UHM

REACH compliant
Yes

RoHs compliant
Yes

Standard
Silicone Free

Standard EN
DM 174/2004, EC 1935/2004, ICIM Food, ICIM Water

Standard SAE
NSF/ANSI 169

Temperatur max.
+150 °C

Temperatur min.
-20 °C

Tillverkningsmaterial
Stainless steel

Tryck max.
20 bar

Vakuum max.
-0.95 bar

Vinkel
0 °
Pakke str.
5 st

Stregkode
296807

Brutto vægt
Kg

Netto vægt
Kg

Oprindelsesland
ita

The XVR series of acid-resistant push-in nipples are suitable for use in aggressive environments and critical installations. Suitable for use with food and clean water.
