Hexagon rail nut - DIN 1-8 + 1 Twin - Stainless
Hexagon rail nut for fastening hydraulic pipe clamps onto a mounting rail in twin clamp installations. The nut provides a threaded attachment point in the rail and is used together with a mounting rail type TS.
Designed for DIN group size 1 and suitable for group 1D in the Twin Series according to DIN 3015 Part 3. The internal thread is metric M6, supporting common clamp mounting hardware for this group size.
Typical Applications
- Mounting twin pipe clamp assemblies on mounting rails in hydraulic and fluid line installations
- Clamp installation where a rail-mounted, metric threaded fixing point is required
Artikelnummer:
SM-RO
Förpackningsstorlek:
100 pcs
Minsta beställningskvantitet:
1 pcs

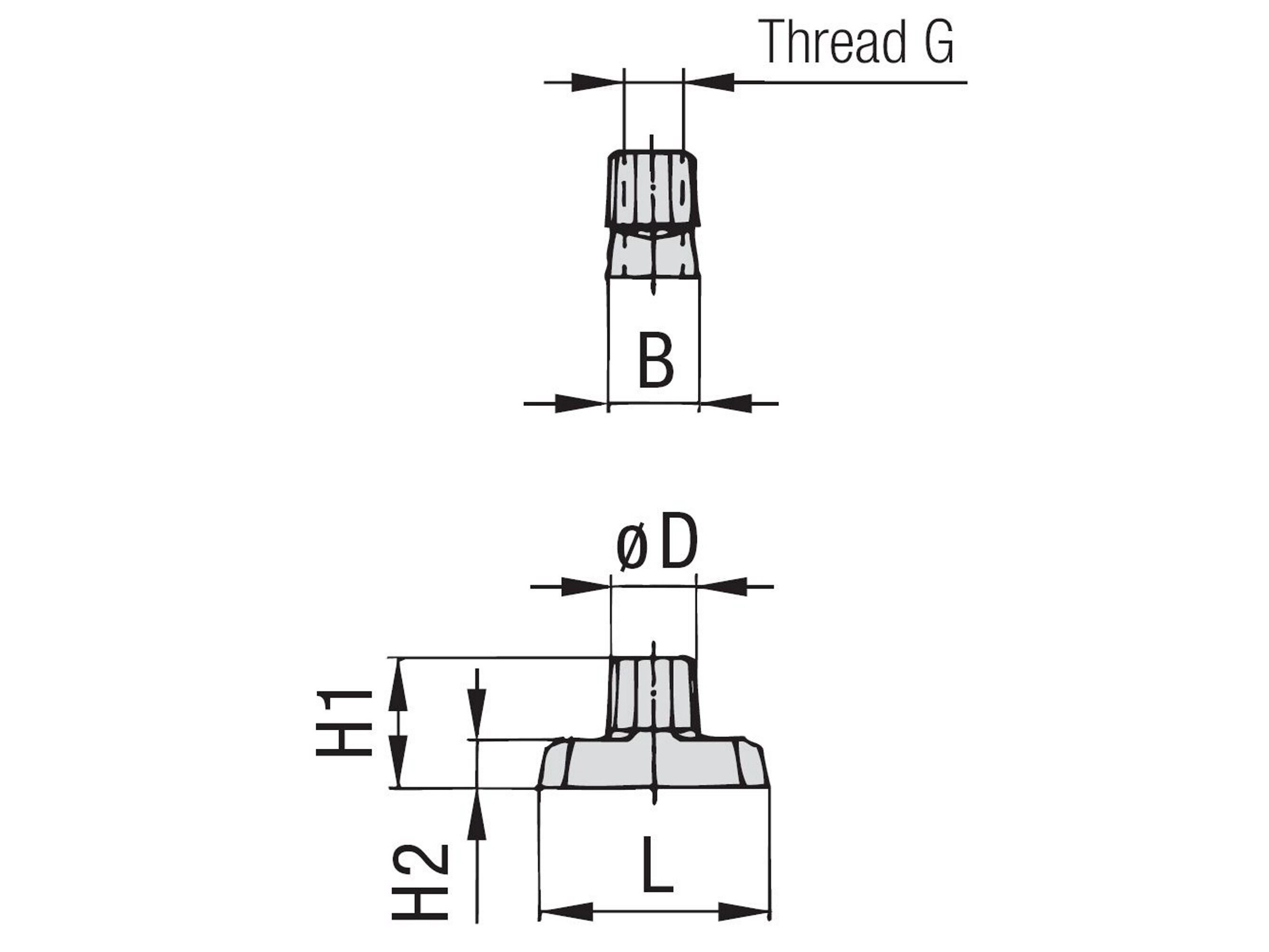

B
10,4 mm
D
12 mm
DIN storlek
1
G
M6
Grupp Stauff
1D
Gänga
M6
Gänga metrisk
M6
H1
14,2 mm
H2
5,5 mm
L
25,5 mm
Materialkvalitet
1.4301 / AISI304
Modell kod
SM-1-8/1D-M-W4
Märke namn
Stauff
Tillverkningsmaterial
Stainless steel
Package size
100 pcs
Barcode
305259
Gross weight
0,01 Kg
Net weight
0,01 Kg
Country of origin
DEU
Intrastat code
39259010
Hexagon rail nut for fastening hydraulic pipe clamps onto a mounting rail in twin clamp installations. The nut provides a threaded attachment point in the rail and is used together with a mounting rail type TS.
Designed for DIN group size 1 and suitable for group 1D in the Twin Series according to DIN 3015 Part 3. The internal thread is metric M6, supporting common clamp mounting hardware for this group size.
Typical Applications
- Mounting twin pipe clamp assemblies on mounting rails in hydraulic and fluid line installations
- Clamp installation where a rail-mounted, metric threaded fixing point is required
