RQ12/30 ANSLUTNINGSFLÄNS
\ufeff
Bolt distribution 30mm F-flange, incl. bolts, washers and o-ring.
Partnumber:
RQ12-30
Package size:
1 st
Min. order quantity is:
1 st

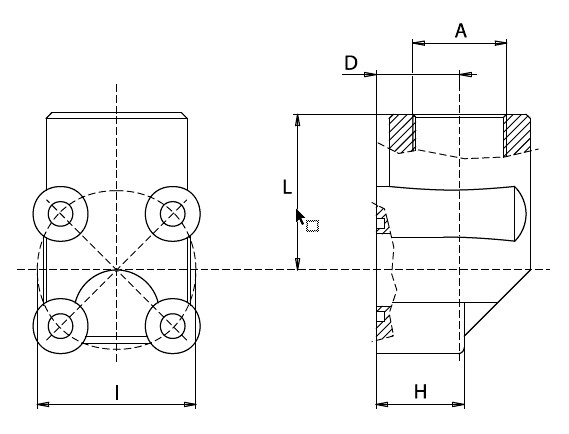

A
G 1/2 BSP
Angle
90 °
Bolt dimension
M6x30 (x2) + M6x45 (x2) mm
Brand Name
Hydraspecma
D
18 mm
H
18 mm
Holes circle
30 mm
I
30 mm
L
40 mm
Material
Aluminium
Number of bolt holes
4
Number of bolts
4
Pressure max.
180 bar
Sealing material
NBR
Shore
90
Thread inner
G 1/2 BSP
Package size
1 st
Barcode
198994
Gross weight
0,10 Kg
Net weight
0,10 Kg
Country of origin
ita
\ufeff
Bolt distribution 30mm F-flange, incl. bolts, washers and o-ring.
