    • Coupling female NS (ISO-A) - DN12 - 1/2"BSP

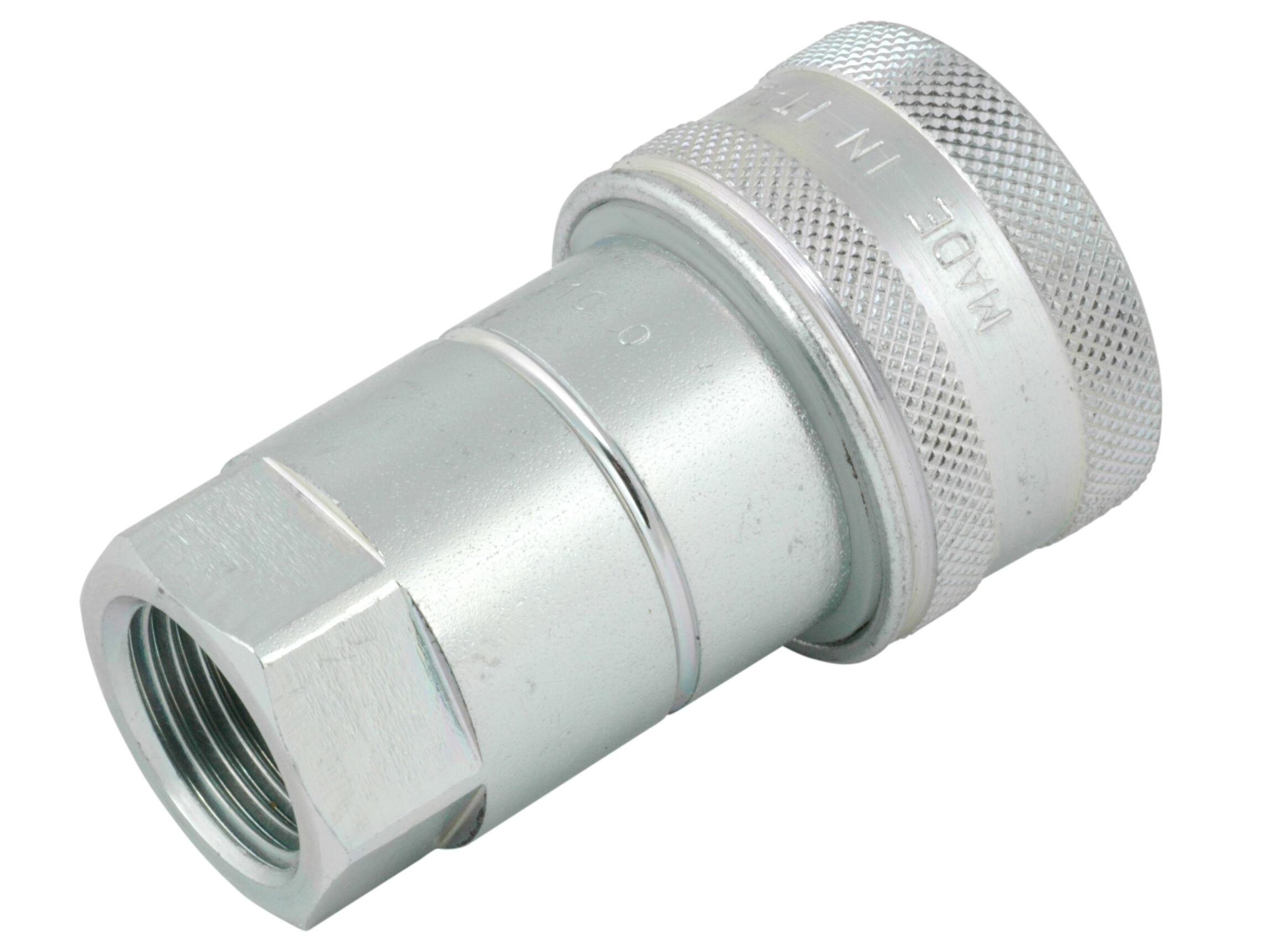

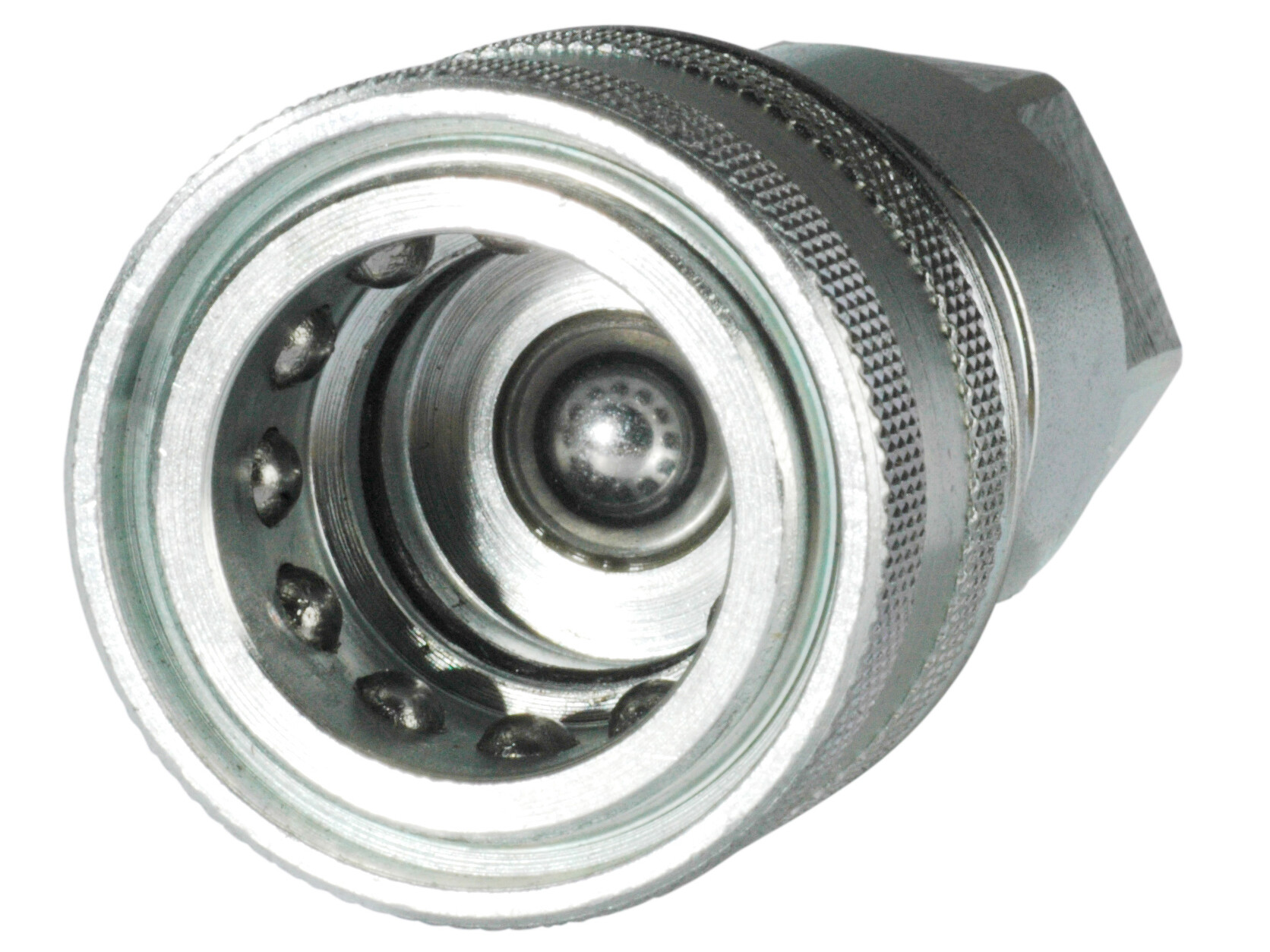

    Coupling female NS (ISO-A) - DN12 - 1/2"BSP

    Standard quick coupler

    Connection system: pulling back the sleeve.

    Disconnection system: pulling back the sleeve.

    Shut off system: ball valve.

    Connectability: without pressure.

    Disconnection under pressure: not allowed.

    Varenummer:
    NS12GASF
    Pakke str.:
    1 st
    Min. bestillingsenhed er:
    1 st
    Lynkobling han NS (ISO-A) - DN12 - 1/2"BSP
    Partnumber: NS12GASM
    Dammskydd Hona, PVC Svart
    Partnumber: TM12LN
    Dammskydd Hona, PVC Röd
    Partnumber: TM12LR
    Dammskydd Hona, PVC Grön
    Partnumber: TM12LV
    Pakn.sæt hun NV12 FASTER (10) o-ring + back up ring
    Partnumber: SKNV12

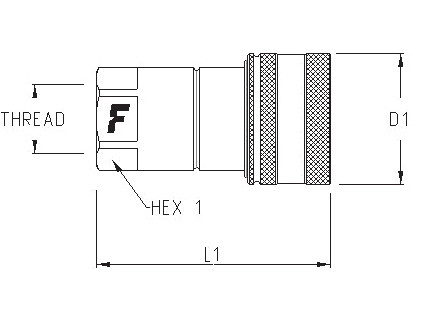

    A
    G 1/2 BSP
    D1
    38 mm
    Flow Nominel
    50 lpm
    Gevind indvendig
    G 1/2 BSP
    ISO størrelse
    12.5
    Korrosions resistens
    500 hours salt spray ISO 9227
    L1
    68 mm
    Materiale
    Steel
    Model kode
    NS 12 GAS F
    Mærke navn
    Faster
    Overfladebehandling
    Zinc coating (CR III)
    Pakningsmateriale
    NBR
    Standard ISO
    ISO 7241-1-A
    Størrelse
    1/2 "
    Temperatur maks.
    +125 °C
    Temperatur min.
    -25 °C
    Tryk maks.
    200 bar
    Type
    Ball
    X
    27 mm
    Package size
    1 st
    Barcode
    332571
    Gross weight
    0,26 Kg
    Net weight
    0,26 Kg
    Country of origin
    ITA
    Intrastat code
    84812010

    Standard quick coupler

    Connection system: pulling back the sleeve.

    Disconnection system: pulling back the sleeve.

    Shut off system: ball valve.

    Connectability: without pressure.

    Disconnection under pressure: not allowed.
