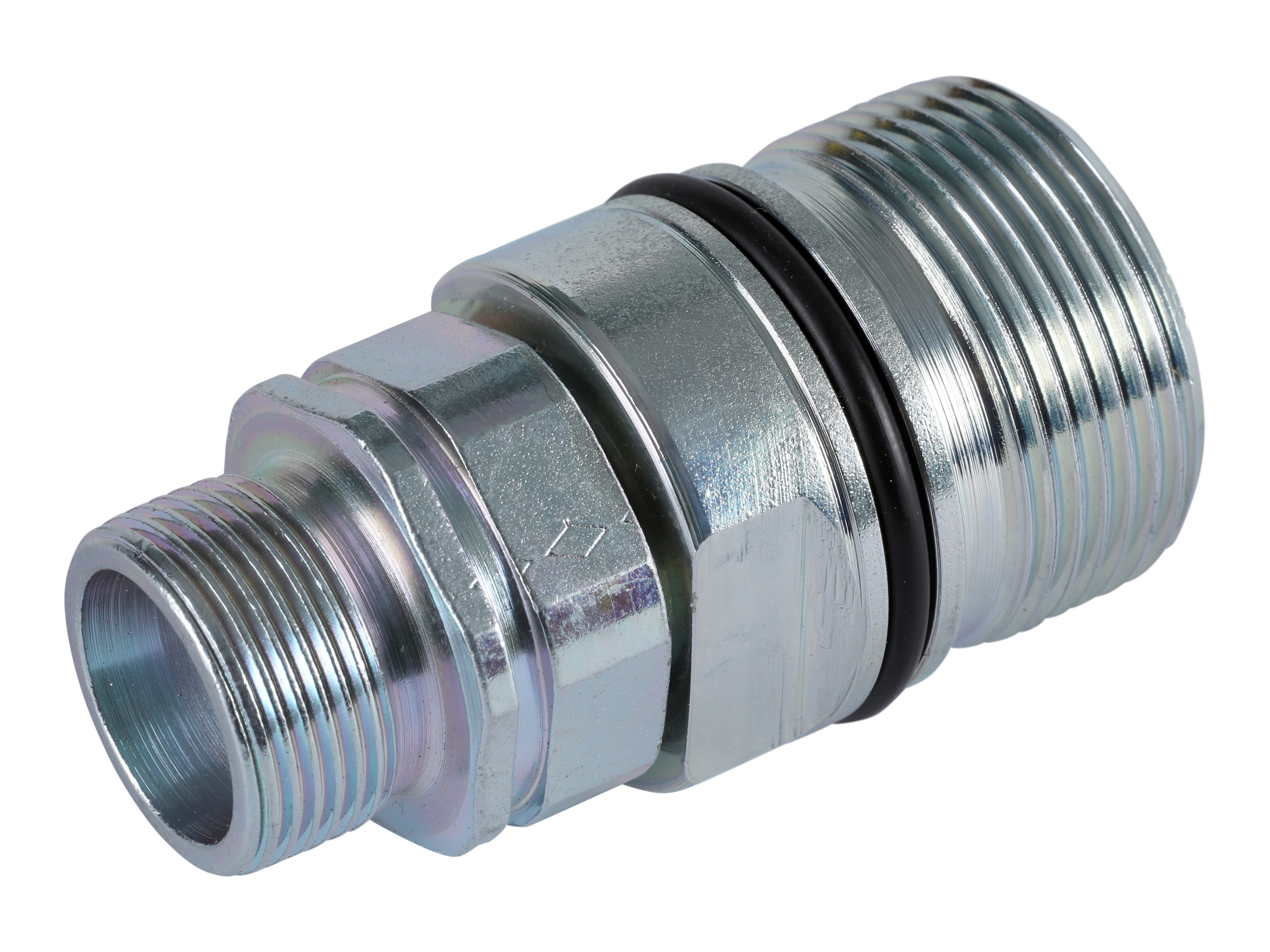

Screw coupling female HS - DN12,5 - M20x1.5 (12S)
Standard DIN-coupling often used on mobile-cranes and within industry.
Can be connected by hand up till an approx. pressure of 50 bar.
Partnumber:
HS10-1-S1220
Package size:
1 st
Min. order quantity is:
1 st
Brand Name
Stauff
Diameter pipe
12 mm
Dimension A metric
M20x1,5
Dimension B
66 mm
Dimension D metric
M36x2
Dimension L1
66 mm
Dimension SW
30 mm
Flow rate nominal LMin
80 lpm
ISO size
12.5
Material
Steel
Model code
QRC-HS-12-F-12S-BT-W66
Pressure max.
400 bar
Sealing material
NBR
Series
S
Size
1/2 "
Standard ISO
ISO 14541
Surface treatment
Zinc coating (CR III)
Temperature max.
+100 °C
Temperature min.
-25 °C
Thread outer metric
M20x1,5
Package size
1 st
Barcode
356825
Gross weight
0,25 Kg
Net weight
0,25 Kg
Country of origin
DEU
Intrastat code
84812010
Standard DIN-coupling often used on mobile-cranes and within industry.
Can be connected by hand up till an approx. pressure of 50 bar.
