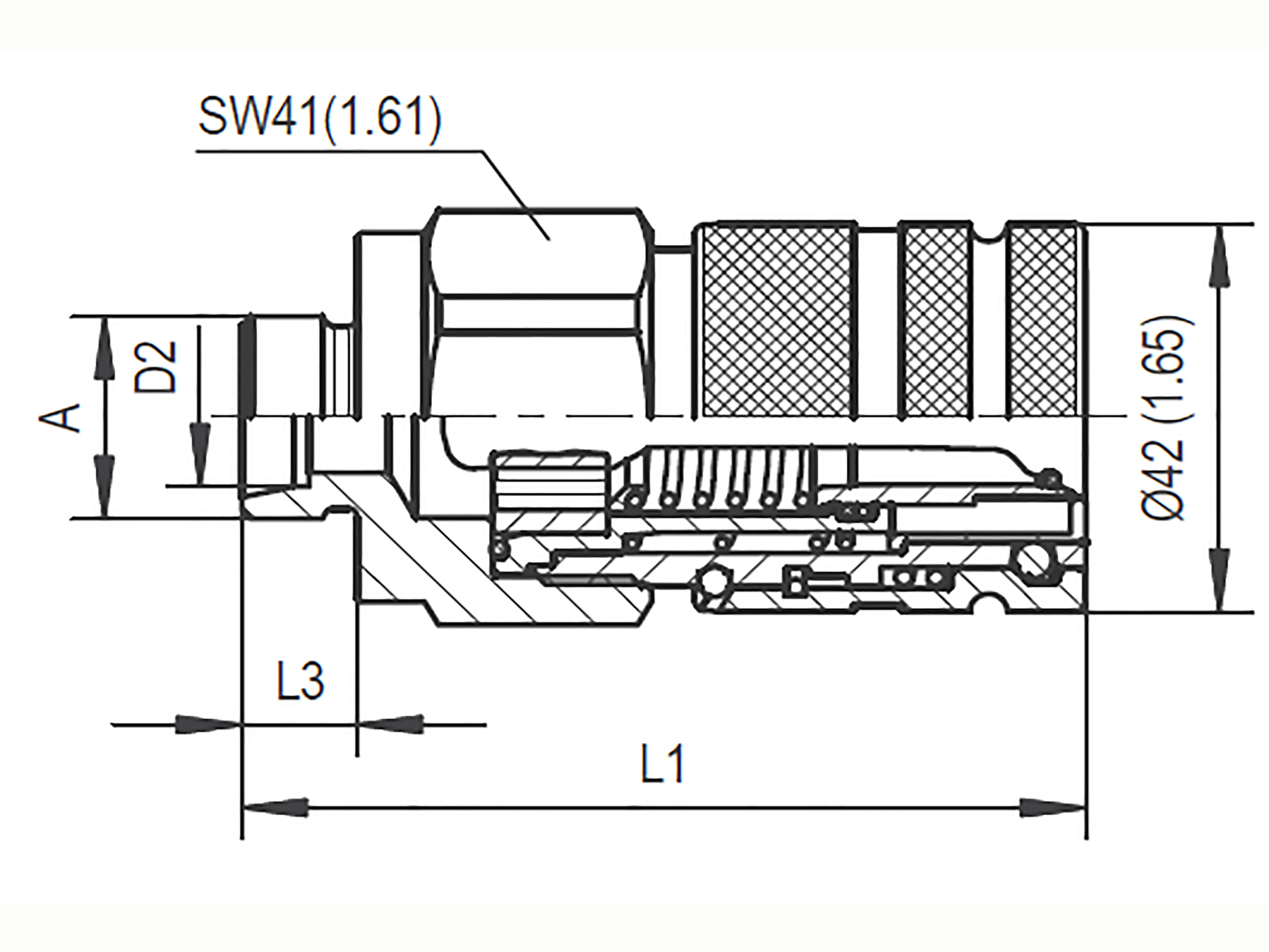

Coupling female flatface FF - DN20 - 3/4"BSP female
Coupling female flatface FF - DN20 - 3/4"BSP female
Artikelnummer:
FF16-1-IGF12
Förpackningsstorlek:
1 pcs
Minsta beställningskvantitet:
1 pcs
A
G 3/4 BSP
Brand Name
Stauff
Connection
Push
Disconnection
Actuate Push Sleeve
Field of application
Construction Machinery, Industrial Hydraulic
Flowrate nominal LMin
148 lpm
ISO size
16
L1
87,7 mm
Material
Carbon steel
Pressure burst min.
1200 bar
Pressure max.
350 bar
Pressurized connection
Not allowed
SW
41 mm
Sealing material
NBR
Size
3/4 "
Spillage
0,02 ml
Standard ISO
ISO 16028
Surface treatment
Zinc-Nickel plated
Temperature max.
+100 °C
Temperature min.
-25 °C
Thread inner
G 3/4 BSP
Package size
1 pcs
Barcode
467943
Gross weight
0,48 Kg
Net weight
0,48 Kg
Country of origin
DEU
Intrastat code
84812010
